Husqvarna 1206-74 (1997) Walk Behind Rotary Mower

Model: 1206-74 (1997)

Save
 Part Not Listed?Part Not Listed?
product name

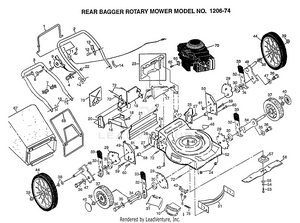

REAR BAGGER ROTARY MOWER

...
...
1
CONTROL BAR PLN-131696
...
2
SUB= 166860X479 PLN-153346X479
...
3
HANDLE.LWR.DLX.20 PLN-151590X479
...
4
ROPE GUIDE PLN-132001
...
5
SUB= 73800400 PLN-63601
...
6
BOLT.HANDLE.LM PLN-131959
...
7
SUB= 7192J PLN-151517
...
8
SCREW.HXHD.WASH. PLN-144929
...
9
"CONTROL, THROTTLE" PLN-700417
...
10
DOOR.MULCH.COMBI PLN-145281
...
11
"CABLE,ENG ZONE CO" PLN-130861
...
12
TAPPING SCREW PLN-750097
...
13
"BRKT,UPSTOP" PLN-850733X004
...
14
"NUT,WING PM" PLN-128638
...
15
HAIRPIN COTTER PLN-51793
...
16
DISCHARGE GUARD PLN-133188X479
...
17
SUB= 700063X479 PLN-70063X479
...
18
SCREW.HXTAP.10-24 PLN-150050
...
19
PLATE.BACK.20RD PLN-700356X479
...
20
BAFFLE.SIDE PLN-700363X479
...
21
SKIRT.PUSH.20RD PLN-140657
...
22
SUB= 73800400 PLN-63601
...
23
KIT.DOOR.RR.20STL PLN-147613
...
24
LOCKNUT PM PLN-751592
...
25
BRACKET.HDLE.LH. PLN-151512X479
...
26
BRACKET.HDLE.RH. PLN-151511X479
...
27
SCREW.HXWS.5/16 PLN-150078
...
29
BRACKET.ADJ.9POS. PLN-700325X007
...
30
SPACER.HEIGHT.ADJ PLN-146630
...
31
GUARD.DISCH.CLIPO PLN-145285
...
32
SPRING SELECTOR PLN-700331X004
...
33
KNOB PM PLN-87877
...
34
ARM.AXLE.ASM.BZP. PLN-145935X004
...
35
"WASHER, BELLEVIL." PLN-62335
...
36
BOLT SHLD 3/8-16 PLN-142748
...
37
WHEEL.8X2.RAD.GRY PLN-148442
...
38
WAVE WASHER PLN-57143
...
39
HEX FLANGE LOCKNT PLN-83923
...
40
HUB CAP PLN-77400
...
41
HINGE SCREW PLN-88652
...
42
BRACKET.HINGE.W/F PLN-147775
...
43
SCREW PLN-54583
...
44
WHEEL TIRE PM PLN-88017
...
45
BOLT.ENG.3/8-16 PLN-150406
...
46
DECAL HYT PLN-107339X
...
47
WASHER PLN-61651
...
48
"AXLE ARM,REAR PM" PLN-750913X004
...
49
BRKT.SUPT.RH PLN-700170X479
...
50
BRACKET.SUPT.WHL. PLN-700172X479
...
51
SUB= 144961 PLN-132198X479
...
52
HOUSING ASSY PLN-159126
...
53
SCREW PLN-851084
...
54
LOCKWASHER PLN-850263
...
55
"WASHER,HARDEN" PLN-851074
...
56
BLADE.20.MULCH.AY PLN-145106
...
57
BLADE ADAPTOR PLN-850977
...
58
SPACER.PM PLN-86969
...
59
SCREW.HX.WSHD. PLN-149588
...
60
SUB= 74780612 PLN-74760612
...
61
LOCKNUT PM PLN-751592
...
65
SCREW PM PLN-83816
...
66
CABLE CLAMP PLN-111190X
...
67
GRASSBAG.250B1 PLN-149597
...
68
FRAME.CATCHER.2.5 PLN-149555
...
71
ROD.HINGE.COMBI-C PLN-147286
...
72
BLIND RIVET PLN-128415
...
73
MULCHER PLATE PLN-133169X479
...
74
WASHER PM PLN-88348
...
75
SPRING.HINGE PLN-152186
...
xx
COMBI-CUT DECAL PLN-159163
...
xx
MANUAL.OP.GEN.PUS PLN-145655
...
xx
MANUAL.OP.GEN.PUS PLN-145657
...
xx
MANUAL.P.1206-74 PLN-159125
...
...
...
