product name

Haier HCW225RAES Electric Range

Model: HCW225RAES

Save
 Part Not Listed?Part Not Listed?
product name

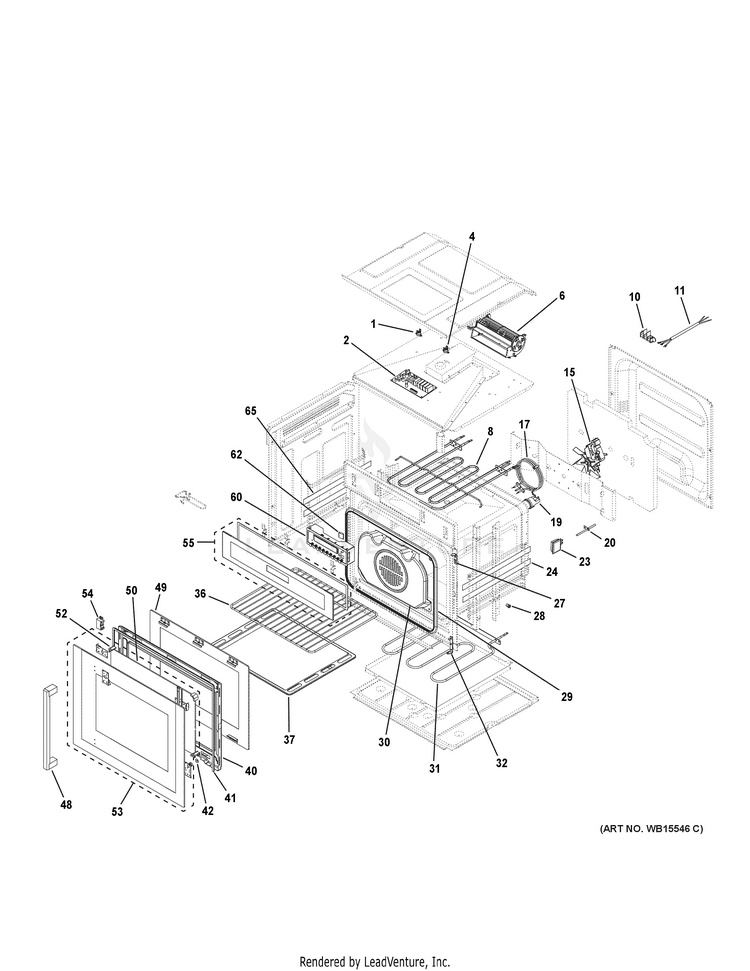

RANGE

...
...
1
THERMAL CUTOUT GEH-WB24X28054
...
2
MAIN BOARD GEH-WB27X28050
...
4
THERMAL CUTOUT GEH-WB24X28055
...
6
COOLING FAN GEH-WB26X28027
...
8
BROIL ELEMENT GEH-WB44X28025
...
10
TERMINAL BLOCK GEH-WB18X28052
...
11
POWER CORD GEH-WB18X28026
...
15
CONVECTION MOTOR AND FAN ASM GEH-WB26X28028
...
17
CONVECTION HEATING ELEMENT GEH-WB44X28024
...
19
BULB SOCKET AND LENSE ASM GEH-WB18X28023
...
20
TEMPERATURE SENSOR GEH-WB24X28051
...
23
SIDE BULB SOCKET AND LENSE ASM GEH-WB18X28048
...
24
GUIDE RAIL ASM RT GEH-WB48X28041
...
27
DOOR HINGE TOP GEH-WB10X28059
...
28
GUARD RAIL NUT GEH-WB01X28032
...
29
DOOR GASKET GEH-WB35X28029
...
30
CONVECTION FAN COVER GEH-WB34X28020
...
31
HIDDEN BAKE ELEMENT GEH-WB44X28039
...
32
DOOR HINGE LOWER GEH-WB10X28060
...
36
OVEN RACK GEH-WB48X28046
...
37
GREASE COLLECTOR PAN GEH-WB32X28036
...
40
INNER DOOR FRAME GEH-WB56X28056
...
41
INNER DOOR SPACER GEH-WB02X28035
...
42
PLUG GEH-WB01X28042
...
48
HANDLE ASM GEH-WB15X28058
...
49
INNER DOOR GLASS ASM GEH-WB56X30673
...
50
MIDDLE DOOR GLASS GEH-WB56X28045
...
52
MIDDLE GLASS CORNER SPACER GEH-WB02X28047
...
53
OUTER DOOR ASM GEH-WB56X30679
...
54
DOOR LATCH GEH-WB10X28022
...
55
CONTROL PANEL OVERLAY GEH-WB07X30666
...
60
OVEN CONTROL WITH HARNESS GEH-WB27X28049
...
62
DOOR LATCH CATCH GEH-WB10X28038
...
65
GUIDE RAIL ASM LT GEH-WB48X28040
...
...
...
