Haier HCR6250AGS Gas Range Or Dual Fuel

Model: HCR6250AGS

Save
 Part Not Listed?Part Not Listed?
product name

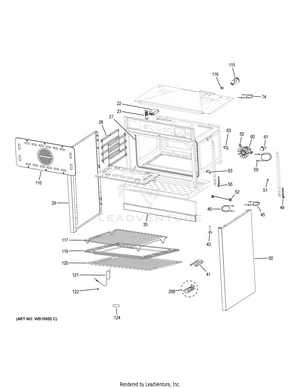

BODY PARTS

...
...
22
OKILI IGNITION GEH-WB13X28362
...
23
TOP BURNER SPARK MODULE GEH-WB13X28463
...
27
DOOR GASKET GEH-WB35X28431
...
28
GUIDE RAIL ASM GEH-WB48X28446
...
29
SIDE PANEL LT GEH-WB56X28459
...
35
TOE KICK GEH-WB07X28462
...
41
ANTI-TIP BRACKET GEH-WB02X28464
...
43
LEVELING LEG GEH-WB02X28308
...
45
IGNITOR WITH WIRE GEH-WB13X28355
...
46
ELECTRODE HOLDER GEH-WB02X28440
...
46
THERMOCOUPLE GEH-WB13X28382
...
49
HINGE RECEIVER RT GEH-WB10X28402
...
50
SIDE PANEL RT GEH-WB56X28460
...
51
GUIDE RAIL NUT GEH-WB02X28297
...
52
THERMOCOUPLE HARNESS GEH-WB18X28383
...
56
HINGE RECEIVER LT GEH-WB10X28401
...
59
THERMOCOUPLE GEH-WB13X28380
...
60
CONVECTION MOTOR AND BLADE ASM GEH-WB26X28342
...
61
LAMP SOCKET AND LENSE ASM GEH-WB18X28358
...
62
COOLING FAN THERMOSTAT GEH-WB24X28282
...
63
ELBOW GEH-WB28X28437
...
74
ELECTRODE / IGNITOR GEH-WB13X28438
...
110
CONVECTION FAN COVER GEH-WB34X28428
...
115
OVEN SPARK MODULE GEH-WB13X28374
...
116
ELECTRODE HOLDER GEH-WB02X28441
...
117
GRILL RACK GEH-WB48X28445
...
119
GREASE COLLECTOR PAN GEH-WB32X28444
...
120
OVEN RACK GEH-WB48X28458
...
121
POWER CORD GEH-WB18X28375
...
122
MIDDLE GLASS BRACKET GEH-WB02X28453
...
124
EMI FERRITE GEH-WB18X28346
...
268
BRACKET ANTI-TIP ASM GEH-WB02T10578

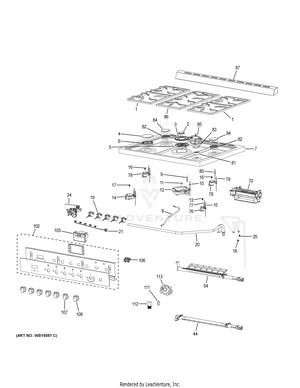

CONTROL PANEL & COOKTOP

...
...
1
GRATE GEH-WB31X28295
...
2
BURNER CAP INNER GEH-WB29X28276
...
3
BURNER CAP OUTER GEH-WB29X28277
...
4
BURNER CAP GEH-WB29X28422
...
5
BURNER BASE GEH-WB16X28273
...
6
BURNER BASE GEH-WB16X28421
...
7
MAINTOP SS GEH-WB62X28450
...
8
BURNER SUPPLY TUBE GEH-WB28X28426
...
8
BURNER SUPPLY TUBE GEH-WB28X28423
...
8
BURNER SUPPLY TUBE GEH-WB28X28424
...
8
BURNER SUPPLY TUBE GEH-WB28X28427
...
8
BURNER SUPPLY TUBE GEH-WB28X28425
...
9
THERMOCOUPLE GEH-WB13X28322
...
10
IGNITOR WITH WIRE GEH-WB13X28299
...
11
LP ORIFICE GEH-WB28X30651
...
11
NG ORIFICE GEH-WB28X30659
...
12
INJET GEH-WB28X28301
...
13
LP ORIFICE GEH-WB28X30653
...
13
NG ORIFICE GEH-WB28X30660
...
14
INJET GEH-WB28X28448
...
15
IGNITOR WITH WIRE GEH-WB13X28300
...
16
LP ORIFICE GEH-WB28X30652
...
16
NG ORIFICE GEH-WB28X30661
...
17
NG ORIFICE GEH-WB28X30658
...
17
LP ORIFICE GEH-WB28X30650
...
18
NG BROIL ORIFICE GEH-WB28X30656
...
18
LP BROIL ORIFICE GEH-WB28X30646
...
19
GAS VALVE GEH-WB21X28293
...
19
GAS VALVE GEH-WB21X28347
...
19
GAS VALVE GEH-WB21X28294
...
19
GAS VALVE GEH-WB21X28442
...
20
MANIFOLD GEH-WB28X28451
...
21
SWITCH HARNESS ASM GEH-WB18X28461
...
24
TEMPERATURE CONTROL VALVE GEH-WB21X28379
...
25
LP BAKE ORIFICE GEH-WB28X30649
...
25
NG BAKE ORIFICE GEH-WB28X30657
...
44
BAKE BURNER GEH-WB16X28419
...
54
BROIL BURNER GEH-WB16X28420
...
70
COOLING FAN ASM GEH-WB26X28343
...
76
INJET GEH-WB28X28302
...
77
THERMOCOUPLE GEH-WB13X28381
...
78
INJET GEH-WB28X28303
...
79
ELECTRODE / IGNITOR GEH-WB13X28439
...
80
THERMOCOUPLE GEH-WB13X28321
...
81
BURNER BASE GEH-WB16X28271
...
82
BURNER BASE GEH-WB16X28272
...
83
BURNER CAP GEH-WB29X28274
...
84
BURNER CAP GEH-WB29X28275
...
85
WOK ADAPTER GEH-WB31X28325
...
86
GRATE GEH-WB31X28443
...
87
BACKSPLASH GEH-WB34X28418
...
102
CONTROL PANEL OVERLAY GEH-WB07X30664
...
103
TIMER GEH-WB24X28384
...
106
SELECTOR SWITCH GEH-WB24X28378
...
107
SELECTOR KNOB GEH-WB03X28377
...
109
KNOB GEH-WB03X28306
...
111
GASKET GEH-WB35X28292
...
112
INLET ELBOW GEH-WB28X28304
...
113
REGULATOR GEH-WB21X28376

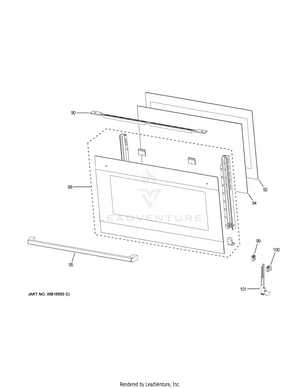

DOOR

...
...
88
OUTER DOOR ASM GEH-WB56X30675
...
90
DOOR TOP TRIM GEH-WB07X28436
...
92
INNER DOOR GLASS GEH-WB56X28449
...
94
MIDDLE DOOR GLASS GEH-WB56X28452
...
95
HANDLE ASM GEH-WB15X28447
...
99
DOOR GLASS BRACKET LT GEH-WB02X28433
...
100
DOOR GLASS BRACKET LT GEH-WB02X28434
...
101
DOOR HINGE GEH-WB10X28435
...
...
...
