Haier HCH3400ACB Electric Range

Model: HCH3400ACB

Save
 Part Not Listed?Part Not Listed?
product name

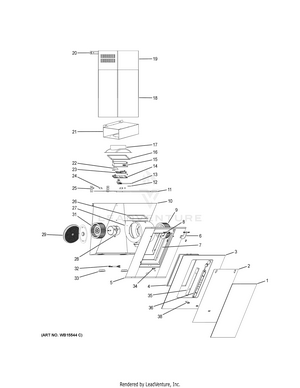

RANGE HOOD

...
...
1
GLASS PANEL GEH-WB63X30144
...
2
GLASS PANEL BRACKET GEH-WB34X30143
...
3
OUTER GLASS GEH-WB07X29034
...
4
GREASE FILTER GEH-WB02X29014
...
5
FRONT PANEL GEH-WB56X30145
...
6
LEFT BRACKET GEH-WB34X30142
...
7
FILTER FRAME GEH-WB07X29012
...
8
RIGHT BRACKET GEH-WB34X30141
...
9
LEFT SIDE IMPELLER GEH-WB02X29016
...
10
SHELL GEH-WB63X30140
...
11
COVER GEH-WB34X30148
...
12
WIRE FASTENER GEH-WB01X30138
...
13
POWER CORD GEH-WB18X29026
...
14
JUNCTION BOX BOTTOM GEH-WB02X29019
...
15
JUNCTION BOX COVER GEH-WB34X29020
...
16
GASKET GEH-WB35X29013
...
17
DAMPER GEH-WB34X29009
...
18
INNER DUCT COVER GEH-WB34X29017
...
19
OUTER DUCT COVER GEH-WB34X29023
...
20
DUCT COVER BRACKET GEH-WB02X29010
...
21
AIR DUCT GEH-WB34X29003
...
22
CAPACITOR GEH-WB26X29007
...
23
POWER BOARD GEH-WB27X29025
...
24
DUCT COVER SUPPORT GEH-WB02X29011
...
25
INSTALLATION BRACKET GEH-WB01X29018
...
26
BLOWER HOUSING GASKET GEH-WB35X29006
...
27
BLOWER HOUSING GEH-WB34X29005
...
28
BLOWER MOTOR GEH-WB26X29004
...
29
CHARCOAL FILTER GEH-WB02X29008
...
31
RIGHT SIDE IMPELLER GEH-WB02X29015
...
32
LED HARNESS WIRE GEH-WB18X29021
...
33
LED LIGHT ASM WITH CONNECTOR GEH-WB25X29022
...
34
DOOR CATCH GEH-WB10X30147
...
35
SWITCH BRACKET GEH-WB34X30139
...
36
SWITCH ASM GEH-WB24X29027
...
38
DOOR CATCH BRACKET GEH-WB34X30146
...
...
...
