product name

Haier HCH2100ACS Electric Range

Model: HCH2100ACS

Save
 Part Not Listed?Part Not Listed?
product name

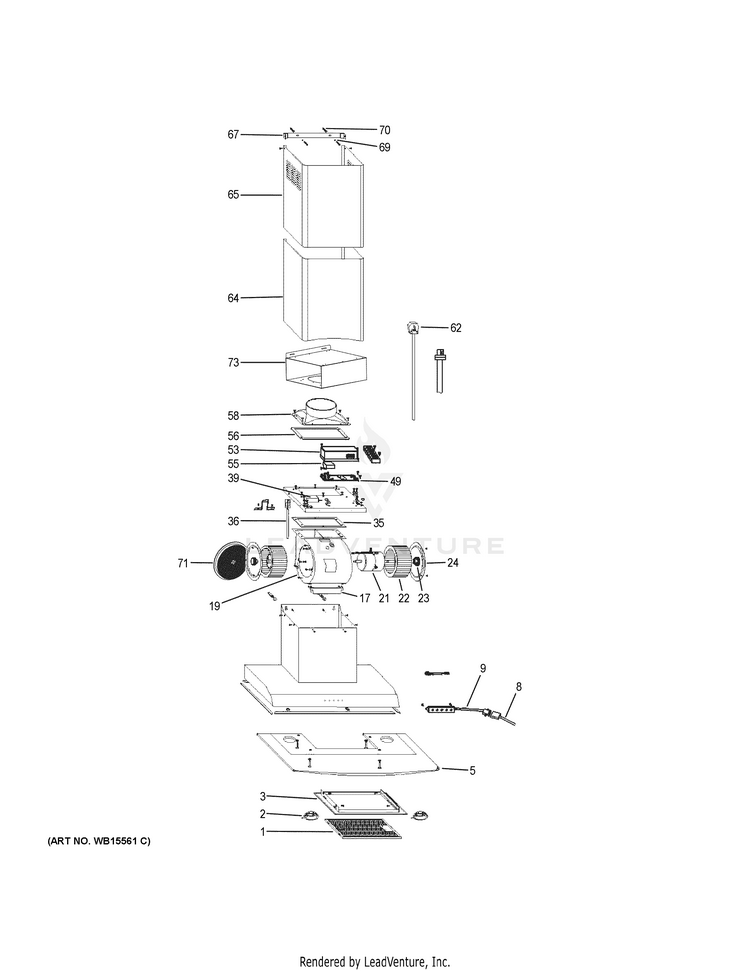

RANGE HOOD

...
...
1
GREASE FILTER GEH-WB02X29041
...
2
LIGHT ASM WITH CONNECTOR GEH-WB25X29047
...
3
FILTER FRAME GEH-WB07X29038
...
5
GLASS PLATE GEH-WB07X29040
...
8
SWITCH HARNESS GEH-WB18X29051
...
9
SWITCH ASM GEH-WB24X29050
...
17
GREASE PAN GEH-WB32X29042
...
19
BLOWER HOUSING GEH-WB34X29036
...
21
BLOWER MOTOR GEH-WB26X29037
...
22
RIGHT SIDE IMPELLER GEH-WB02X29015
...
22
LEFT SIDE IMPELLER GEH-WB02X29016
...
23
RIGHT SIDE FASTENER GEH-WB02X29049
...
23
LEFT SIDE FASTENER GEH-WB02X29046
...
24
BLOWER COVER GEH-WB34X29035
...
35
BLOWER HOUSING GASKET GEH-WB35X29006
...
36
HARNESS WIRE GEH-WB18X29043
...
39
TRANSFORMER GEH-WB26X29052
...
49
JUNCTION BOX BOTTOM GEH-WB02X29019
...
53
JUNCTION BOX COVER GEH-WB34X29020
...
55
CAPACITOR GEH-WB26X29007
...
56
GASKET GEH-WB35X29013
...
58
DAMPER GEH-WB34X29009
...
62
POWER CORD GEH-WB18X29026
...
64
INNER DUCT COVER GEH-WB34X29044
...
65
OUTER DUCT COVER GEH-WB34X29048
...
67
INSTALLATION BRACKET GEH-WB01X29045
...
69
GASKET GEH-WB35X29039
...
70
WALL ANCHOR GEH-WB01X29053
...
71
CHARCOAL FILTER GEH-WB02X29008
...
73
AIR DUCT GEH-WB34X29003
...
...
...
