Haier HCC2230AGS Gas Range Or Dual Fuel

Model: HCC2230AGS

Save
 Part Not Listed?Part Not Listed?
product name

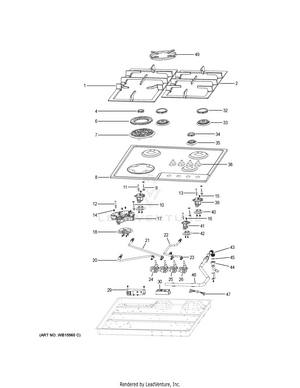

CONTROL PANEL & COOKTOP

...
...
1
GRATE LH GEH-WB31X28074
...
2
GRATE RH GEH-WB31X28075
...
4
SIMMER CAP GEH-WB29X28095
...
6
BURNER CAP GEH-WB29X28064
...
7
BURNER BASE GEH-WB16X28061
...
8
MAINTOP ASM SS GEH-WB62X28088
...
9
THERMOCOUPLE GEH-WB13X28099
...
10
THERMOCOUPLE GEH-WB13X28098
...
11
IGNITOR WITH WIRE GEH-WB13X28076
...
12
IGNITOR WITH WIRE GEH-WB13X28078
...
13
IGNITOR WITH WIRE GEH-WB13X28077
...
14
ORIFICE GEH-WB28X28092
...
15
ORIFICE GEH-WB28X28093
...
16
ORIFICE GEH-WB28X28091
...
17
INJET GEH-WB28X28080
...
18
INJET SUPPORT GEH-WB02X28083
...
20
GAS TUBE ASM LF GEH-WB28X28067
...
21
GAS TUBE ASM LR GEH-WB28X28068
...
22
GAS TUBE ASM RR GEH-WB28X28070
...
23
GAS TUBE ASM RF GEH-WB28X28069
...
24
GAS VALVE GEH-WB21X28072
...
25
GAS VALVE GEH-WB21X28073
...
26
GAS VALVE GEH-WB21X28071
...
29
SPARK MODULE GEH-WB13X28096
...
30
TERMINAL BLOCK GEH-WB18X28097
...
32
BURNER CAP GEH-WB29X28066
...
33
BURNER BASE GEH-WB16X28063
...
34
BURNER CAP GEH-WB29X28065
...
35
BURNER BASE GEH-WB16X28062
...
38
KNOB GEH-WB03X28087
...
39
INJET GEH-WB28X28081
...
40
INJET SUPPORT GEH-WB02X28084
...
41
INJET GEH-WB28X28079
...
42
INJET SUPPORT GEH-WB02X28082
...
43
MANIFOLD INLET ELBOW GEH-WB28X28090
...
44
INLET NUT GEH-WB01X28086
...
45
INLET GASKET GEH-WB35X28085
...
46
MANIFOLD GEH-WB36X28089
...
47
POWER CORD GEH-WB18X28094
...
49
WOK ADAPTER GEH-WB31X28100
...
...
...
