Haier HCC2220BEB Electric Range

Model: HCC2220BEB

Save
 Part Not Listed?Part Not Listed?
product name

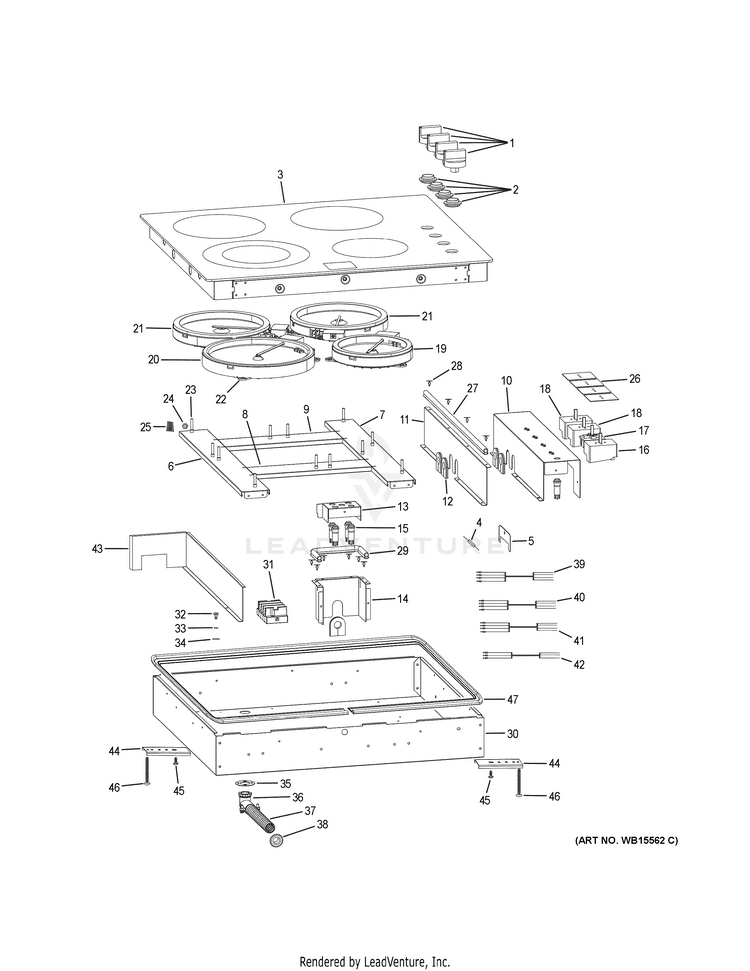

CONTROL PANEL & COOKTOP

...
...
1
KNOB GEH-WB03X30113
...
2
KNOB GASKET GEH-WB35X30112
...
3
MAINTOP GLASS AND FRAME ASM GEH-WB62X30109
...
4
FUSE GEH-WB24X30097
...
5
FUSE HOLDER GEH-WB34X30096
...
6
LEFT BRACKET GEH-WB34X30111
...
7
RIGHT BRACKET GEH-WB34X30131
...
8
FRONT BRACKET GEH-WB34X30098
...
9
REAR BRACKET GEH-WB34X30132
...
10
INFINITE SWITCH BRACKET GEH-WB34X30119
...
11
INSULATOR GEH-WB35X30115
...
12
CLIP GEH-WB02X30104
...
13
INDICATOR LIGHT BRACKET GEH-WB34X30124
...
14
INSULATOR GEH-WB35X30114
...
15
COOKTOP LIGHT INDICATOR GEH-WB25X30102
...
16
INFINITE SWITCH 1200W GEH-WB24X30121
...
17
DOUBLE BURNER INFINITE SWITCH GEH-WB24X30100
...
18
INFINITE SWITCH 1800W GEH-WB24X30120
...
19
RADIANT BURNER 1200W GEH-WB30X30135
...
20
DOUBLE BURNER GEH-WB30X30101
...
21
RADIANT BURNER 1800W GEH-WB30X30134
...
22
RADIANT ELEMENT BRACKET GEH-WB34X30133
...
23
BOLT GEH-WB01X30106
...
24
HEX NUT GEH-WB01X30091
...
25
SPRING GEH-WB02X30126
...
26
INFINITE SWITCH GASKET GEH-WB35X30117
...
27
INFINITE SWITCHES RUBBER GASKET GEH-WB35X30118
...
28
RUBBER PIN GEH-WB02X30129
...
29
INDICATOR LIGHT INSULATION TAPE GEH-WB02X30123
...
30
BURNER BOX GEH-WB63X30105
...
31
TERMINAL BLOCK GEH-WB18X30125
...
32
GROUND SCREW GEH-WB01X30094
...
33
GROUND SCREW PAD GEH-WB02X30092
...
34
GROUND SCREW PAD GEH-WB02X30093
...
35
GASKET GEH-WB35X30095
...
36
POWER CORD ELBOW GEH-WB02X30137
...
37
CONNECTOR GEH-WB02X30103
...
38
RUBBER GASKET GEH-WB35X30130
...
39
MAINTOP HARNESS GEH-WB18X30108
...
40
POWER CORD ASM GEH-WB18X30107
...
41
INDICATOR LIGHT HARNESS GEH-WB18X30122
...
42
POWER HARNESS GEH-WB18X30136
...
43
LEFT FRONT INSULATOR GEH-WB35X30110
...
44
INSTALLATION BRACKET GEH-WB34X30116
...
45
SCREW ST4 2X8 GEH-WB01X30128
...
46
SCREW ST5X75 GEH-WB01X30127
...
47
FOAM TAPE GEH-WB02X30099
...
...
...
