product name

Haier 3U24MS2VHB Room Air Conditioner Built In

Model: 3U24MS2VHB

Save
 Part Not Listed?Part Not Listed?
product name

OPTIONAL ACCESSORIES

...
...
9994
ADAPTOR 1/2 X 3/8 GEH-WJ01X26854
...
9995
ADAPTOR 3/8 X 1/2 GEH-WJ01X26853
...
9996
ADAPTER 1/2X5/8 GEH-WJ01X23932
...
9997
ADAPTER 1/4X3/8 GEH-WJ01X23925
...
9998
ADAPTER 3/8X5/8 GEH-WJ01X23924

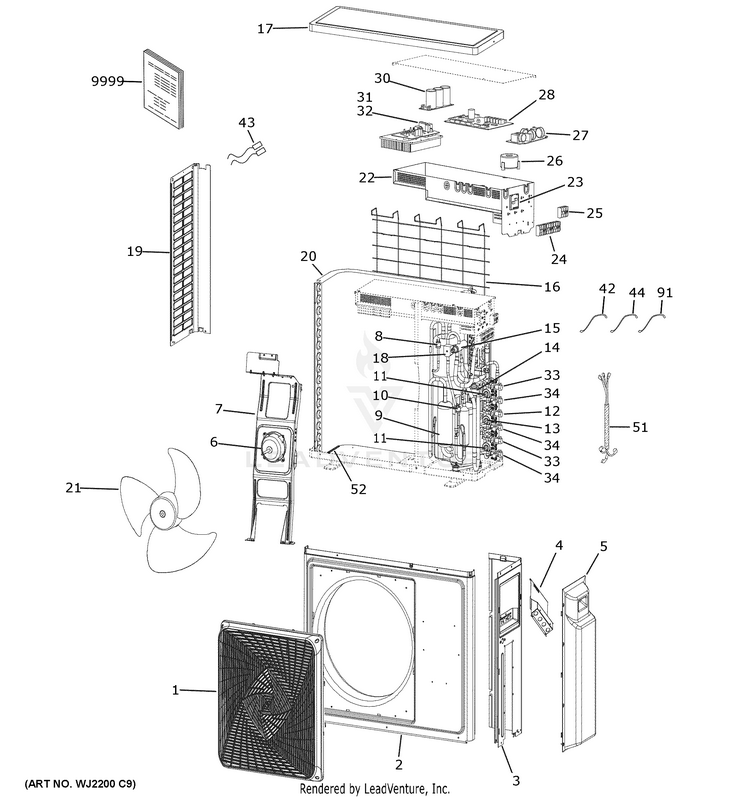

ROOM AIR CONDITIONER

...
...
1
GRILLE GEH-WJ71X24782
...
2
CASING GEH-WJ71X23714
...
3
RIGHT SIDE PANEL GEH-WJ71X23720
...
4
TERMINAL BLOCK GUARD GEH-WJ76X24366
...
5
VALVE COVER GEH-WJ76X24365
...
6
OUTDOOR FAN MOTOR GEH-WJ94X23718
...
7
OUTDOOR FAN MOTOR BRACKET GEH-WJ65X23712
...
8
LOW PRESSURE SWITCH GEH-WJ26X23722
...
9
COMPRESSOR GEH-WJ98X23731
...
10
HIGH PRESSURE SWITCH GEH-WJ27X22646
...
11
LEVB ELECTRONIC EXPANSION VALVE GEH-WJ26X22674
...
12
EEV COIL GEH-WJ26X24364
...
14
ELECTRONIC EXPANSION VALVE GEH-WJ53X23724
...
15
4-WAY STOP VALVE GEH-WJ53X23567
...
16
REAR GRILLE GEH-WJ71X23711
...
17
TOP PANEL GEH-WJ71X23723
...
19
LEFT SIDE PANEL GEH-WJ71X23713
...
21
OUTDOOR FAN BLADE GEH-WJ73X23728
...
22
ELECTRICAL BOX GEH-WJ26X23726
...
23
SERVICE POWER CONTROL BOARD GEH-WJ26X23716
...
24
TERMINAL BLOCK GEH-WJ26X23730
...
25
TERMINAL BLOCK GEH-WJ26X23729
...
26
REACTOR GEH-WJ26X23727
...
27
FILTER POWER CONTROL BOARD GEH-WJ26X23717
...
28
OUTDOOR POWER CONTROL BOARD GEH-WJ26X23715
...
30
CAPACITOR POWER CONTROL BOARD GEH-WJ20X23721
...
31
INVERTER DRIVER MODULE GEH-WJ26X23719
...
32
RECTANGULAR INVERTER BOARD GEH-WJ96X24080
...
42
LIQUID PIPE SENSOR GEH-WJ26X24077
...
43
OUTDOOR SENSOR SET GEH-WJ26X24078
...
44
VAPOR PIPE TEMPERATURE SENSOR GEH-WJ26X22537
...
9999
PM INSTALL INSTRUCTIONS GEH-31-5000001
...
...
...
