Haier 2U18MS2VHB Room Air Conditioner Built In

Model: 2U18MS2VHB

Save
 Part Not Listed?Part Not Listed?
product name

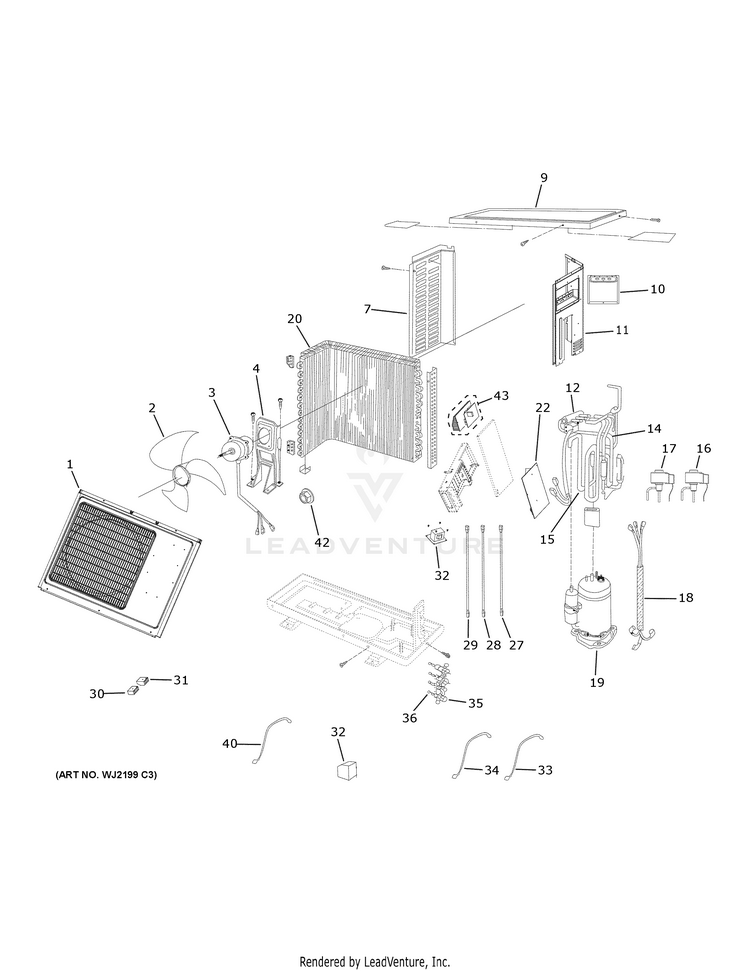

ROOM AIR CONDITIONER

...
...
1
CASING GEH-WJ71X23700
...
2
FAN BLADE GEH-WJ73X23305
...
3
OUTDOOR FAN MOTOR GEH-WJ94X23327
...
4
OUTDOOR FAN MOTOR BRACKET GEH-WJ65X23697
...
7
LEFT SIDE PANEL GEH-WJ71X23696
...
9
TOP PANEL GEH-WJ71X23710
...
10
COVER GEH-WJ76X24084
...
11
RIGHT SIDE PANEL GEH-WJ71X23708
...
12
4-WAY VALVE GEH-WJ53X22987
...
14
DISCHARGE TUBE GEH-WJ53X23295
...
15
SUCTION TUBE GEH-WJ53X23709
...
16
ELECTRONIC EXPANSION VALVE GEH-WJ53X23702
...
17
ELECTRONIC EXPANSION VALVE GEH-WJ53X23701
...
18
OUTDOOR WIRE HARNESS GEH-WJ35X23704
...
19
COMPRESSOR GEH-WJ98X23285
...
22
OUTDOOR POWER CONTROL BOARD GEH-WJ26X23703
...
27
COMPRESSOR TEMPERATURE SENSOR GEH-WJ26X23286
...
28
PIPE SENSOR GEH-WJ26X23334
...
29
AMBIENT TEMPERATURE SENSOR GEH-WJ26X23278
...
30
TERMINAL BLOCK GEH-WJ27X23010
...
31
TERMINAL BLOCK GEH-WJ27X23011
...
32
REACTOR GEH-WJ27X23006
...
33
PIPE TEMPERATURE SENSOR GEH-WJ26X23705
...
34
PIPE TEMPERATURE SENSOR GEH-WJ26X23706
...
35
3-WAY VALVE GEH-WJ53X23143
...
36
2-WAY STOP VALVE GEH-WJ53X22991
...
40
SUCTION TEMPERATURE SENSOR GEH-WJ26X23346
...
42
FLANGE NUT GEH-WJ01X22974
...
43
INVERTER ASSEMBLY GEH-WJ26X24105
...
...
...
