Haier 1U24TE2VHA Room Air Conditioner Built In

Model: 1U24TE2VHA

Save
 Part Not Listed?Part Not Listed?
product name

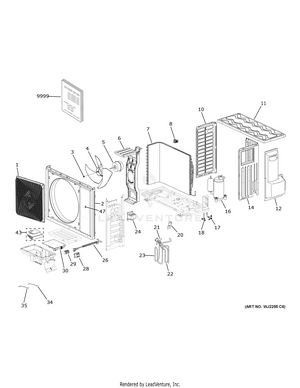

ROOM AIR CONDITIONER

...
...
1
GRILLE GEH-WJ71X23225
...
2
CASING GEH-WJ76X23221
...
3
FLANGE NUT GEH-WJ01X22974
...
4
FAN BLADE GEH-WJ73X23014
...
5
OUTDOOR FAN MOTOR GEH-WJ94X23000
...
6
OUTDOOR FAN MOTOR BRACKET GEH-WJ65X23226
...
7
CONDENSER GEH-WJ88X23223
...
8
SENSOR CLIP GEH-WJ01X23219
...
10
LEFT SIDE PANEL GEH-WJ76X23170
...
11
TOP COVER GEH-WJ76X23231
...
12
VALVE COVER GEH-WJ76X23018
...
14
RIGHT SIDE PANEL GEH-WJ71X23229
...
16
COMPRESSOR GEH-WJ98X23222
...
17
3-WAY VALVE GEH-WJ53X22992
...
18
2-WAY STOP VALVE GEH-WJ53X22991
...
20
ELECTRONIC EXPANSION VALVE GEH-WJ53X23213
...
21
4-WAY VALVE GEH-WJ53X22987
...
22
DISCHARGE TUBE GEH-WJ53X23224
...
23
SUCTION TUBE GEH-WJ53X23230
...
24
REACTOR GEH-WJ27X23006
...
26
OUTDOOR WIRE HARNESS GEH-WJ35X23003
...
28
TERMINAL BLOCK GEH-WJ27X23011
...
29
TERMINAL BLOCK GEH-WJ27X23010
...
30
OUTDOOR POWER CONTROL BOARD GEH-WJ26X23228
...
34
TEMPERATURE SENSOR GEH-WJ26X23009
...
35
TEMPERATURE SENSOR GEH-WJ26X22984
...
43
INVERTER ASSEMBLY GEH-WJ26X24107
...
47
FRONT SERVICE PANEL GEH-WJ76X24672
...
9999
PM INSTALLATION INSTRUCTION GEH-31-5000532
...
9999
PM OTHER GEH-31-5000408
...
...
...
