product name

Haier 1U24LP2VHA Room Air Conditioner Built In

Model: 1U24LP2VHA

Save
 Part Not Listed?Part Not Listed?
product name

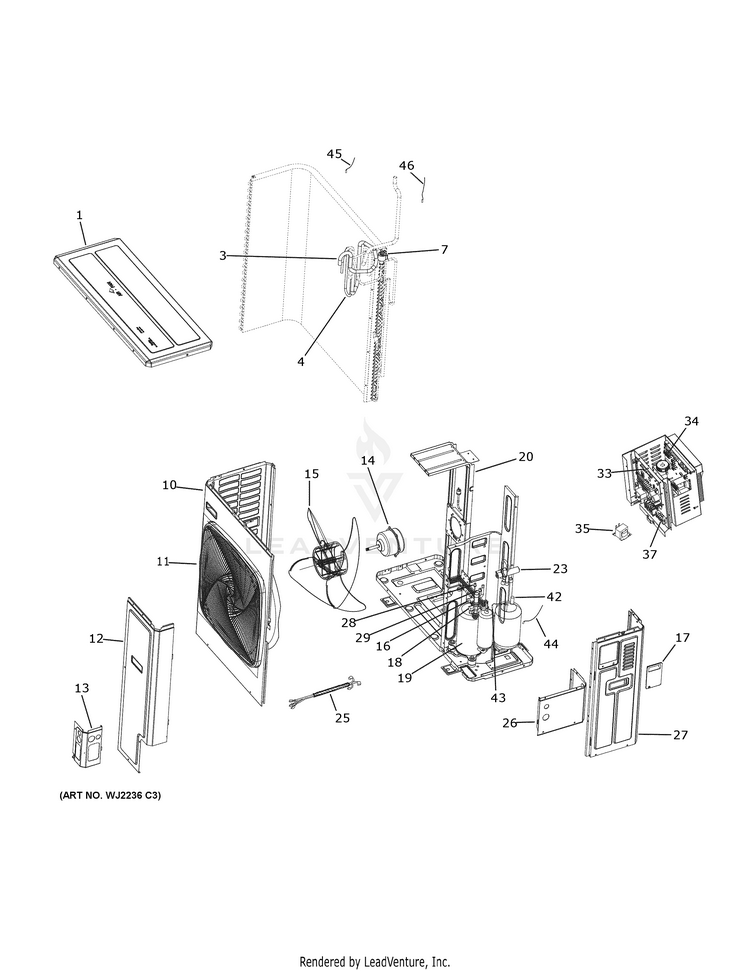

ROOM AIR CONDITIONER

...
...
1
TOP COVER GEH-WJ76X23571
...
3
SUCTION TUBE GEH-WJ53X23575
...
4
DISCHARGE TUBE GEH-WJ53X23581
...
7
ELECTRONIC EXPANSION VALVE GEH-WJ35X22605
...
10
FRONT PANEL GEH-WJ71X23562
...
11
OUTLET GRILL GEH-WJ71X23589
...
12
ACCESS PANEL GEH-WJ76X24384
...
13
FRONT PASSTHROUGH PANEL GEH-WJ76X24385
...
14
MOTOR GEH-WJ94X23582
...
15
FAN BLADE GEH-WJ73X22642
...
16
LIQUID LINE SERVICE VALVE GEH-WJ53X22650
...
17
DIAGNOSTIC BOARD COVER GEH-WJ76X24387
...
18
VAPOR SERVICE VALVE GEH-WJ53X23555
...
19
COMPRESSOR GEH-WJ98X23563
...
20
FAN MOTOR BRACKET GEH-WJ65X23569
...
23
4-WAY STOP VALVE GEH-WJ53X23567
...
26
REAR PASSTHROUGH PANEL GEH-WJ76X24386
...
27
SIDE PLATE RIGHT GEH-WJ71X23577
...
28
HIGH PRESSURE SWITCH GEH-WJ27X22646
...
29
LOW PRESSURE SWITCH GEH-WJ26X23722
...
33
POWER CONTROL BOARD GEH-WJ26X23573
...
34
DRIVER MODULE GEH-WJ26X23583
...
35
REACTOR GEH-WJ27X23553
...
37
TERMINAL BLOCK FOR POWER SUPPLY GEH-WJ27X23566
...
42
DISCHARGE TEMPERATURE SENSOR GEH-WJ26X22637
...
43
SUCTION LINE TEMPERATURE SENSOR GEH-WJ26X22667
...
44
DEFROST TEMPERATURE SENSOR GEH-WJ26X22636
...
45
LIQUID PIPE TEMPERATURE SENSOR GEH-WJ26X22533
...
46
OUTDOOR AMBIENT TEMPERATURE SENSOR GEH-WJ26X22657
...
...
...
