product name

Haier 1U24AP2VHA Room Air Conditioner Built In

Model: 1U24AP2VHA

Save
 Part Not Listed?Part Not Listed?
product name

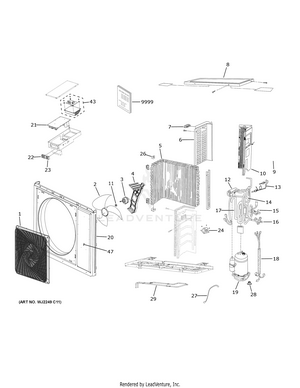

ROOM AIR CONDITIONER

...
...
1
GRILLE GEH-WJ71X23225
...
2
FAN BLADE GEH-WJ73X23014
...
3
OUTDOOR FAN MOTOR GEH-WJ94X23000
...
4
OUTDOOR FAN MOTOR BRACKET GEH-WJ65X23015
...
5
CONDENSER GEH-WJ88X23016
...
6
LEFT SIDE PANEL GEH-WJ76X23170
...
7
HANDLE GEH-WJ01X24664
...
8
TOP COVER GEH-WJ76X23231
...
9
VALVE COVER GEH-WJ76X23018
...
10
RIGHT SIDE PANEL GEH-WJ71X23229
...
11
FLANGE NUT GEH-WJ01X23150
...
12
4-WAY VALVE TUBE ASSEMBLY GEH-WJ53X24702
...
13
ELECTRONIC EXPANSION VALVE GEH-WJ26X25395
...
14
DISCHARGE TUBE GEH-WJ53X23019
...
15
LIQUID SERVICE VALVE GEH-WJ53X24973
...
16
VAPOR SERVICE VALVE GEH-WJ53X24975
...
17
SUCTION TUBE GEH-WJ53X23020
...
18
OUTDOOR WIRE HARNESS GEH-WJ35X25394
...
19
COMPRESSOR GEH-WJ98X23021
...
20
CASING GEH-WJ76X23221
...
21
POWER CONTROL BOARD GEH-WJ26X24714
...
22
TERMINAL BLOCK GEH-WJ27X23011
...
23
TERMINAL BLOCK SUPPLY GEH-WJ27X25393
...
24
REACTOR GEH-WJ27X23006
...
26
SENSOR CLIP GEH-WJ01X23219
...
27
TEMPERATURE SENSOR GEH-WJ26X23009
...
28
FLANGE NUT GEH-WJ01X22974
...
29
PAN HEATER GEH-WJ27X23172
...
43
INVERTER ASSEMBLY GEH-WJ26X24102
...
47
FRONT SERVICE PANEL GEH-WJ76X24672
...
9999
PM OTHER GEH-31-5000411
...
9999
PM INSTALLATION INSTRUCTION GEH-31-5000532
...
...
...
