Haier 1U09BU1ERH Room Air Conditioner Built In

Model: 1U09BU1ERH

Save
 Part Not Listed?Part Not Listed?
product name

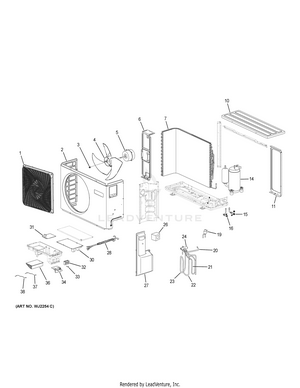

ROOM AIR CONDITIONER

...
...
1
GRILLE GEH-WJ71X23260
...
2
CASING GEH-WJ76X23185
...
3
FLANGE NUT GEH-WJ01X22974
...
4
FAN BLADE GEH-WJ73X23190
...
5
OUTDOOR FAN MOTOR GEH-WJ94X22975
...
6
OUTDOOR FAN MOTOR BRACKET GEH-WJ65X23192
...
7
CONDENSER GEH-WJ88X23187
...
10
TOP COVER GEH-WJ76X23200
...
11
REAR BOARD GUARD GEH-WJ76X23197
...
14
COMPRESSOR GEH-WJ98X23186
...
15
3-WAY VALVE GEH-WJ53X23143
...
16
2-WAY STOP VALVE GEH-WJ53X22991
...
19
ELECTRONIC EXPANSION VALVE GEH-WJ53X23148
...
20
EXHAUST PIPE GEH-WJ53X23189
...
21
AIR INLET PIPE GEH-WJ53X23183
...
22
DISCHARGE TUBE GEH-WJ53X23188
...
23
SUCTION TUBE GEH-WJ53X23199
...
24
4-WAY STOP VALVE GEH-WJ53X23182
...
26
REACTOR GEH-WJ26X23196
...
27
STOP VALVE COVER GEH-WJ76X23201
...
28
OUTDOOR WIRING HARNESS GEH-WJ35X23202
...
30
OUTDOOR POWER CONTROL BOARD GEH-WJ26X23194
...
31
OUTDOOR MODULE DRIVE BOARD GEH-WJ26X23193
...
32
TERMINAL BLOCK GEH-WJ27X22985
...
33
SCREW GEH-WJ01X23198
...
34
CAPACITOR BOARD GEH-WJ26X23184
...
36
RADIATOR GEH-WJ26X23195
...
37
TEMPERATURE SENSOR GEH-WJ26X22984
...
38
TEMPERATURE SENSOR GEH-WJ26X23009
...
...
...
