product name

GE ZW9000SJ1SS Electric Range

Model: ZW9000SJ1SS

Save
 Part Not Listed?Part Not Listed?
product name

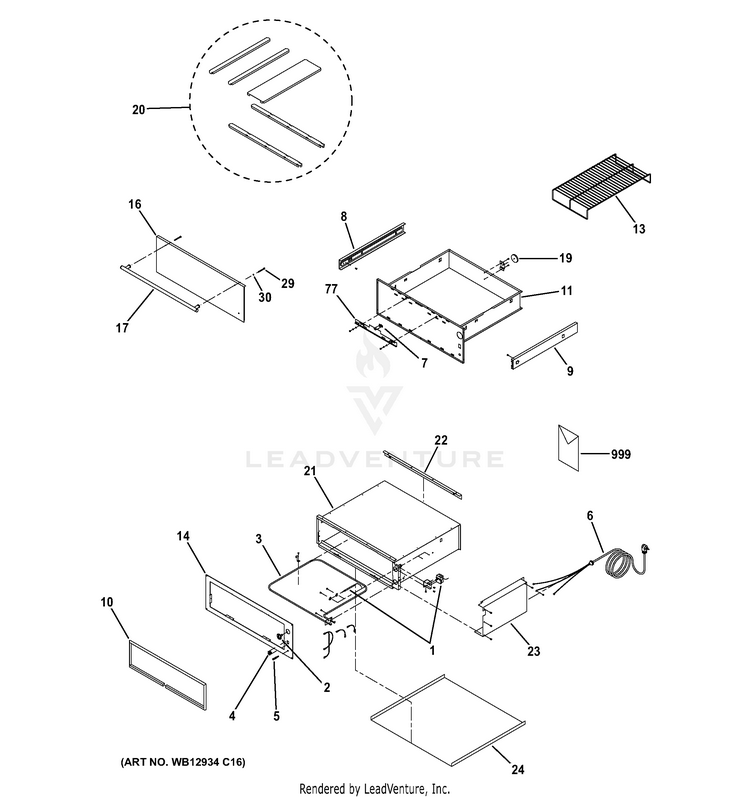

WARMING DRAWER

...
...
1
THERMOSTAT SERVICE ASSY GEH-WB20X10011
...
2
KNOB GEH-WB03X10349
...
3
HEATING ELEMENT GEH-WB44X10029
...
4
SWITCH, ROCKER GEH-WB24X10206
...
5
LAMP INDICATOR GEH-WB02X10587
...
6
CORD, POWER GEH-WB02X10588
...
7
VENT SLIDE KNOB SERVICE GEH-WB03X10061
...
8
SLIDE LH GEH-WB63X24412
...
9
SLIDE RH GEH-WB63X24411
...
10
GASKET SEAL 30" ASM GEH-WB02X11289
...
11
DRAWER FRAME 30 GEH-WB58X10020
...
13
WIRE RACK GEH-WB48X10045
...
14
FACE PANEL 30" SERV ASS' GEH-WB56X10698
...
16
FRONT PANEL 30" MGM SS GEH-WB56X24467
...
17
HANDLE ASM 30 (SS) GEH-WB15X23627
...
19
MAGNET-CLOSED DETENT GEH-WB02X11290
...
20
30" RAIL KIT SVCE ASSY GEH-WB64X10032
...
21
CAVITY 30" GEH-WB63X10059
...
22
ANTI TIP BRACKET 30" GEH-WB02X11006
...
23
CONTROL PANEL COVER GEH-WB02X11551
...
24
BOTTOM COVER 30" GEH-WB02X11008
...
29
BOLT,HEX HEAD 1/4"28*3/4 GEH-WB01X10288
...
30
WASHER 1.5 OD*.25 GEH-WB01X10289
...
77
VENT SLIDE GEH-WB06X10692
...
999
PM OWNERS MANUAL GEH-49-80384-3
...
999
INSTALL SCREW (QTY 4) GEH-WB01X10351
...
999
INSTRUCTION INSTALL GEH-31-10700
...
999
PM MANUAL MINI & WD ASM GEH-31-20754
...
...
...
