product name

GE ZV750SP3SS Electric Range

Model: ZV750SP3SS

Save
 Part Not Listed?Part Not Listed?
product name

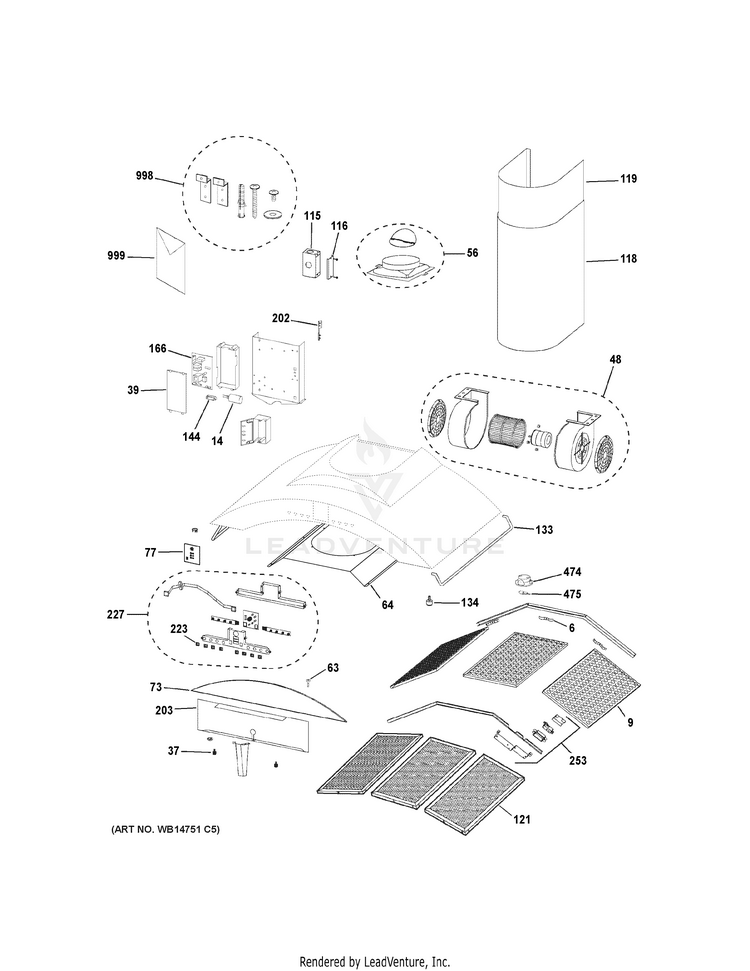

RANGE HOOD

...
...
6
SPRING GEH-WB09X10029
...
9
GREASE FILTER GEH-WB02X11491
...
14
CAPACITOR WITH WIRES GEH-WB17X10033
...
37
THUMB SCREW GEH-WB03X10002
...
39
COVER GEH-WB02X10889
...
48
BLOWER ASM GEH-WB26X31757
...
56
CONNECTION AIR OUTLET SE GEH-WB02X11493
...
63
PLASTIC SCREW, VISOR GEH-WB01X10266
...
64
BLOWER BOTTOM BRACKET GEH-WB02X11375
...
73
GLASS VISOR GEH-WB07X10007
...
77
PLEXIGLAS DISPLAY COVER GEH-WB02X10642
...
115
JUNCTION BOX GEH-WB02X11490
...
116
COVER GEH-WB59X10006
...
118
BOTTOM DUCT COVER GEH-WB38X10138
...
119
UPPER DUCT COVER GEH-WB38X10139
...
121
CHARCOAL FILTER (3 PACK) GEH-WB02X10731
...
133
IMPLEMENT HOLDER GEH-WB03X10092
...
134
IMPLEMENT HOLDER SCREWS GEH-WB01X10170
...
144
STRAIN RELIEF GEH-WB02X10398
...
166
CONTROL BOARD GEH-WB27X11076
...
202
WIRE GUIDE GEH-WB02X10401
...
203
BLOCKING BRACKET GEH-WB07X11267
...
223
SWITCH BOTTOM GEH-WB03X10149
...
227
SWITCH BOX ASSEMBLY GEH-WB27X11077
...
253
MICROSWITCH ASSEMBLY GEH-WB24X10179
...
474
HALOGEN LAMP ASSY GEH-WB08X10061
...
475
BULB GEH-WB25X10020
...
998
INSTALLATION HARDWARE GEH-WB01X10403
...
999
PM INSTALL INSTRUCTIONS GEH-31-10724
...
999
MOUNTING TEMPLATE GEH-31-10726
...
999
MINI MANUAL GEH-31-14783
...
999
USE & CARE GEH-49-80569
...
...
...
