product name

GE ZHU30RQDL1BB Electric Range

Model: ZHU30RQDL1BB

Save
 Part Not Listed?Part Not Listed?
product name

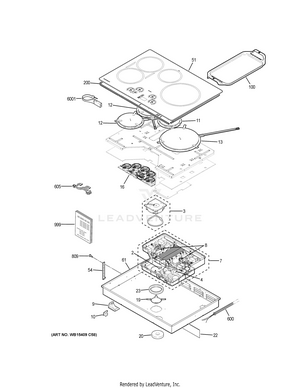

CONTROL PANEL & COOKTOP

...
...
2
FUSE 250V, 20A FB GEH-WB27X27316
...
3
BLOWER & GASKET ASM GEH-WB26X24235
...
4
FILTER BOARD GEH-WB27X27315
...
7
INDUCTION ASM GEH-WB00X27840
...
8
GENERATOR BOARD ASM GEH-WB27X27182
...
9
HOUSING RJ45 GEH-WB02X24122
...
10
BOARD RJ45 CONNECTOR GEH-WB27X24119
...
11
ELEMENT INDUCTION 1800W GEH-WB30X24233
...
12
ELEMENT INDUCTION 2500W GEH-WB30X21490
...
13
ELEMENT INDUCTION 3700W GEH-WB30X24600
...
16
DISPLAY BOARD ASM GEH-WB27X29488
...
19
FAN ENCLOSURE GEH-WB02X24262
...
20
TAPE FOAM GEH-WB02X26088
...
22
HEAT BAFFLE GEH-WB02X24231
...
23
GASKET BOTTOM GEH-WB35X24260
...
51
MAINTOP GLASS ASM GEH-WB62X29490
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
61
BURNER BOX GEH-WB63X29492
...
100
GRIDDLE GEH-WB31X24640
...
200
TAPE FOAM GEH-WB02X26088
...
600
POWER CORD GEH-WB18X29489
...
605
HARNESS WIRE MAIN GEH-WB18X24502
...
605
HARNESS WIRE GND ASM GEH-WB18X24228
...
809
SCREW GEH-WB01X1137
...
999
PM OWNERS MANUAL GEH-49-80774
...
999
PM MANUAL MINI & WD ASM GEH-31-17247
...
999
PM OWNERS MANUAL GEH-31-11037
...
999
GLASS CLEANER GEH-WB64X0093
...
6001
PRECISION COOKING PROBE GEH-JXSOUSV1

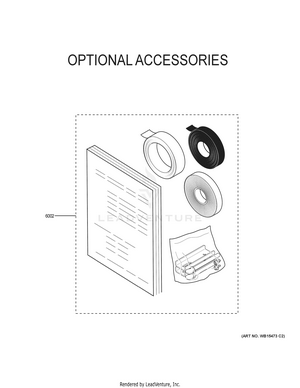

OPTIONAL ACCESSORIES

...
...
6002
KIT FLUSH MOUNT GEH-JXFLUSH1
...
...
...
