GE ZGU484NGP8SS Gas Range Or Dual Fuel

Model: ZGU484NGP8SS

Save
 Part Not Listed?Part Not Listed?
product name

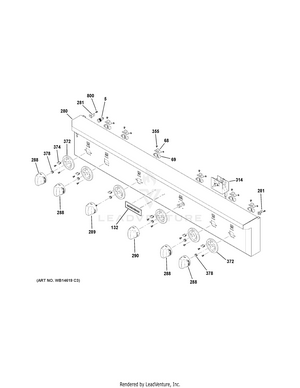

CONTROL PANEL

...
...
5
SWITCH-LED ASM GEH-WB24X26719
...
68
LED BOARD GEH-WB25K10014
...
69
BRACKET LED GEH-WB02K10214
...
132
BADGE MONOGRAM GEH-WB02X26123
...
280
CONTROL PANEL & RAIL ASM GEH-WB36X27701
...
281
BRACKET CONTROL PANEL GEH-WB02K10211
...
288
KNOB ASM GEH-WB03K10359
...
289
KNOB ASM GRILL GEH-WB03K10257
...
290
KNOB ASM GRIDDLE GEH-WB03K10258
...
314
THERMOSTAT ASM GEH-WB21K10136
...
355
SCREW 832 1/8 GEH-WB01K10029
...
372
BEZEL KNOB GEH-WB07K10299
...
374
LENS BEZEL GEH-WB02K10216
...
378
BUSHING BEZEL GEH-WB02K10217
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042

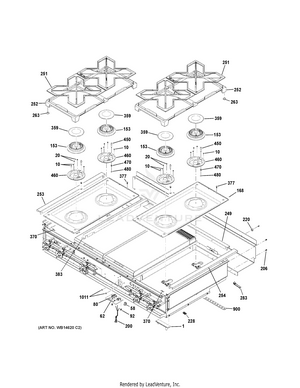

COOKTOP

...
...
1
CARRIER ORIFICE ASM GEH-WB28K10538
...
10
SCREW 8-32 MCH PNT15 GEH-WB01T10104
...
20
SCREW SIMMER MAIN HD GEH-WB01T10092
...
58
POWER CORD CLAMP GEH-WB02X9838
...
62
TERMINAL BLOCK GEH-WB17X0208
...
80
LED POWER SUPPLY GEH-WB25K10013
...
92
SCREW GROUND GEH-WB01X1261
...
153
BURNER HEAD ASM (18K) GEH-WB16T10043
...
168
PAN UNIT GEH-WB49K10016
...
200
LINE CORD ASM GEH-WB18K10048
...
206
SCREW GEH-WB01K10091
...
220
GROMMET HANDLE GEH-WB01K0010
...
228
CLIP WIRE GEH-WB02X7066
...
249
TRIM BACK GEH-WB07K10433
...
251
GRATE GEH-WB31K10224
...
252
FRAME GRATE ASM GEH-WB31K10225
...
253
TRIM SIDE TOP GEH-WB07K10434
...
254
TRIM SIDE TOP GEH-WB07K10435
...
263
FOOT GRATE GEH-WB02K10223
...
283
CLIP CABLE GEH-WB02K0031
...
359
CAP BURNER GEH-WB13T10067
...
370
INSULATION TOP GEH-WB35K10191
...
377
SCR 8-18 AB HW 1/2 S GEH-WB01T10115
...
383
COVER CENTER GEH-WB02K10377
...
450
ELECTRODE TOP GEH-WB13T10065
...
460
BASE BURNER 18K-SIMMER GEH-WB16T10047
...
470
SPRING IGNITER GEH-WB09T10011
...
480
WASHER IGNITER GEH-WB02T10323
...
900
BRACKET HOLD DOWN GEH-WB02K10271
...
1011
NUT KEPS 6-32 SPECIAL GEH-WB01T10086

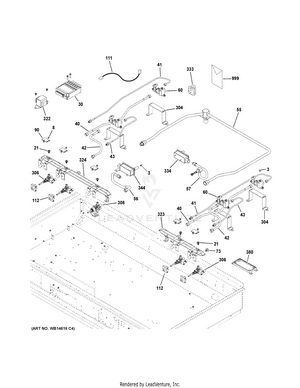

GAS & BURNER PARTS

...
...
3
ORIFICE SPUD LP MAIN GEH-WB28T10118
...
3
ORIFICE SPUD (NG SIMMER) GEH-WB28T10159
...
3
SPUD ORIFICE GRIDDLE GEH-WB28K10529
...
3
ORIFICE SPUD (NG MAIN) GEH-WB28T10155
...
3
ORIFICE SPUD LP MAIN GEH-WB28T10117
...
3
SPUD ORIFICE GRILL GEH-WB28K10530
...
8
SCREW 8-32 GEH-WB01K10002
...
21
SCR 8 HD 1/4 - 20 GEH-WB01K10067
...
30
MODULE SPARK 4+0 GEH-WB13K10037
...
40
TUBE AND NUT ASM GEH-WB28K10509
...
41
TUBE AND NUT ASM GEH-WB28K10511
...
42
TUBE AND NUT ASM GEH-WB28K10510
...
43
TUBE AND NUT ASM GEH-WB28K10512
...
55
ELBOW SWAGED ASM GEH-WB28K10730
...
56
TUBE GRILL AND NUT ASM GEH-WB28K10514
...
57
TUBE GRIDDLE AND NUT ASM GEH-WB28K10500
...
60
INJET BURNER 18K GEH-WB28T10114
...
73
SCR 8 HD 1/4-20 GEH-WB01K10109
...
90
LED ASM GEH-WB25K10012
...
111
HARNESS HV GEH-WB18K10047
...
112
HARNESS BURNER BOX GEH-WB24K10049
...
304
BRACKET INJET GEH-WB02K10192
...
306
VALVE DUAL GEH-WB21K10162
...
308
SWITCH VALVE ASM GEH-WB21K10126
...
322
TRANSFORMER GEH-WB27K10298
...
323
PIPE MANIFOLD ASM GEH-WB28K10515
...
324
PIPE MANIFOLD ASM GEH-WB28K10516
...
333
REGULATOR GEH-WB21K10137
...
334
VALVE SAFETY GEH-WB19K10032
...
344
VALVE SAFETY GEH-WB19K10033
...
380
BRACKET POWER SUPPLY GEH-WB02K10296
...
999
PM OWNERS MANUAL GEH-45-85119
...
999
CLEANER-SS GEH-WB02T10111
...
999
TAPE MASTIC 4" X 2" GEH-WB02K10359
...
999
PM ATTENTION INSTALLER GEH-31-10697
...
999
PM CONVERSION STEPS GEH-31-10693
...
999
PM MINI MANUAL GEH-31-14752
...
999
PM INSTRUCTIONS INSTALL GEH-31-10691

GRILL & GRIDDLE ASSEMBLY

...
...
8
SCREW 8-32 GEH-WB01K10002
...
10
SCREW 8-32 MCH PNT15 GEH-WB01T10104
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
37
IGNITER COVER GEH-WB34K0014
...
140
VENT GRIDDLE GEH-WB07K10294
...
141
COVER GEH-WB07K10431
...
142
BURNER GRIDDLE GEH-WB28K10636
...
143
BURNER IR GEH-WB28K10505
...
144
HANDLE COVER GEH-WB15K10088
...
145
IGNITER GLOWBAR GEH-WB13K10030
...
146
GRIDDLE BODY WELD GEH-WB49K10040
...
147
GRATE GRILL GEH-WB32K10040
...
148
BAFFLE GRILL GEH-WB36K10919
...
149
GRILL BODY WELD GEH-WB49K10041
...
150
FRAME GRILL GRATE ASM GEH-WB07K10296
...
151
TROUGH GREASE ASM GEH-WB49K10014
...
152
REFLECTOR ASM GEH-WB34K10131
...
156
COVER GEH-WB07K10432
...
157
BRACKET GRIDDLE GEH-WB02K10208
...
159
PLATE GRIDDLE WELD ASM GEH-WB32K10042
...
169
FRAME MESH ASM GEH-WB31K10226
...
199
INSULATION GEH-WB49K10039
...
211
PLATE GRIDDLE GEH-WB07K10295
...
219
SHIELD THERMOSTAT BULB GEH-WB49K10015
...
224
BRACKET SUPPORT GEH-WB02K10209
...
265
FOOT GRATE GRILL GEH-WB02K10231
...
781
BUTCHER BLOCK (GRIDDLE) GEH-WB31K10223
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
877
SCREW 10-16 SHLDR TYPE A GEH-WB01T10048
...
1000
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
2000
SCR 10-32 TRP 1/2 GEH-WB01K10100
...
...
...
