GE ZDBI240HAII Refrigerator

Model: ZDBI240HAII

Save
 Part Not Listed?Part Not Listed?
product name

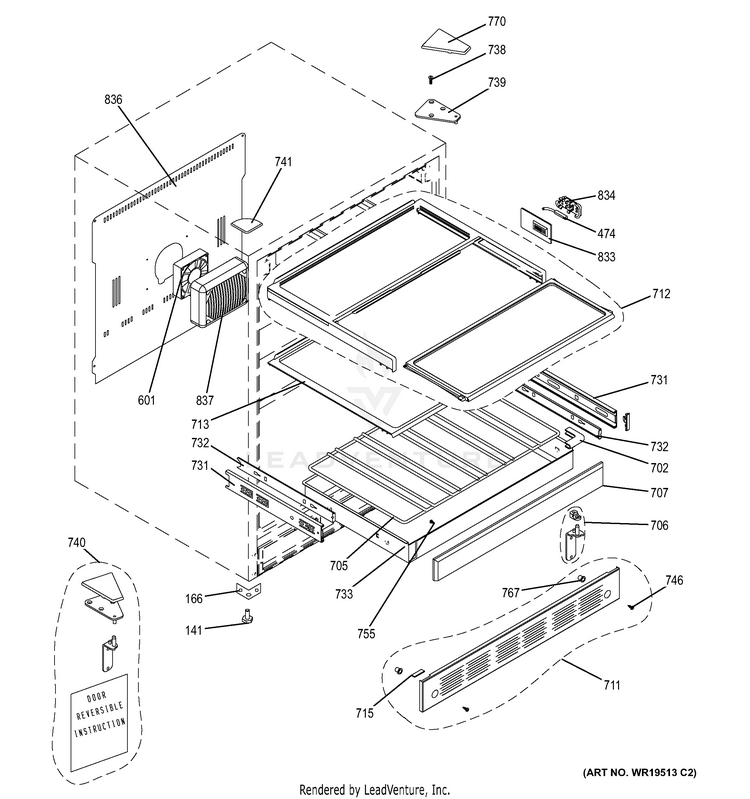

CABINET & SHELVES

...
...
141
LEVELLING LEG GEH-WR01X10456
...
166
LEVELLING LEG SUPPORT GEH-WR02X11844
...
474
TEMP SENSOR GEH-WR55X10409
...
601
EVAP. FAN GEH-WR60X10165
...
702
CORNER PIECE GEH-WR02X11830
...
705
BOTTLE RACK - SHORT GEH-WR71X10592
...
706
HINGE & CAM RISER ASM GEH-WR13X10571
...
707
FRAME FRONT GEH-WR17X11693
...
711
KICK PLATE KIT - BLACK GEH-WR74X10190
...
712
GLASS SHELF GEH-WR71X10588
...
715
KICK PLATE FRONT BK GEH-WR02X11414
...
731
FRAME GUIDE SHORT SLID GEH-WR72X10123
...
732
INNER-LINER GUIDE SHORT GEH-WR17X11394
...
733
BOTTLE SHELF FRAME GEH-WR72X10168
...
738
UPPER HINGE SCREW GEH-WR01X10491
...
739
UPPER HINGE RIGHT GEH-WR13X10276
...
740
REVERSE DOOR HINGE KIT GEH-WR13X10572
...
741
HINGE COVER GEH-WR13X23839
...
746
KICK PLATE SCREW - BLACK GEH-WR01X10457
...
755
SCREW (FRAME FRONT) GEH-WR01X10526
...
767
KICK PLATE SPACER GEH-WR02X11485
...
770
COVER HINGE SUPPORT RH GEH-WR02X11486
...
833
TEMP.CONTROL BULB COVER GEH-WR02X11813
...
834
TEMP.CONTROL BULB COVER GEH-WR02X11816
...
836
EVAPORATOR COVER GEH-WR17X11806
...
837
EVAP FAN COVER GEH-WR02X11814

CLIMATE CONTROLS

...
...
33
BULB LED 120V GEH-WR23X23840
...
324
SOCKET LAMP GEH-WR23X10376
...
716
BULB SHIELD GEH-WR02X11415
...
717
CONTROL HOUSING COVER GEH-WR17X11674
...
876
CONTROL BOARD ASM GEH-WR55X23841

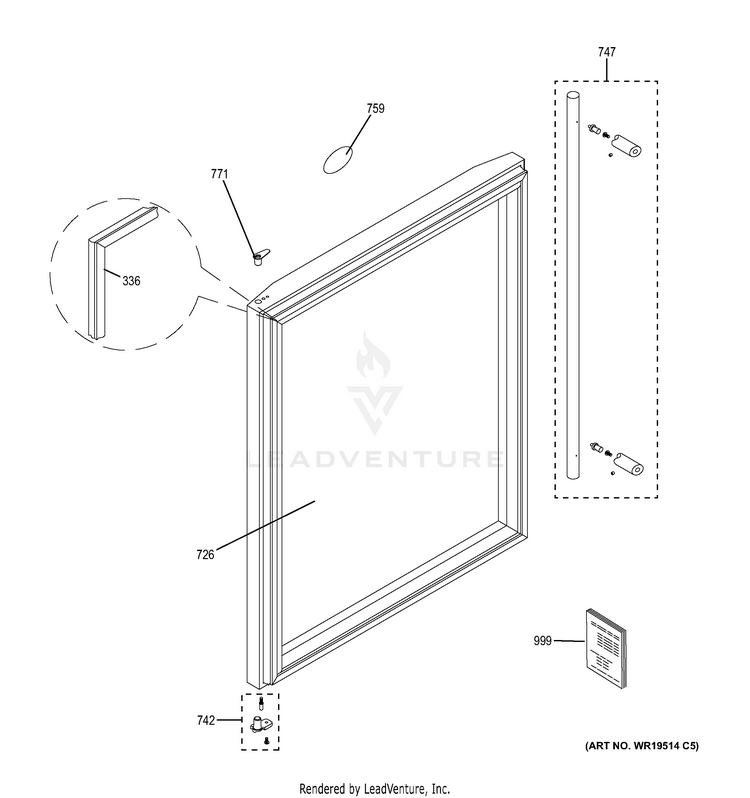

DOOR

...
...
336
MAGNETIC GASKET GEH-WR24X10123
...
726
GLASS DOOR GEH-WR78X12141
...
747
HANDLE ASM GEH-WR12X10895
...
771
HINGE FILL PLUG GEH-WR02X11411
...
999
PM MINI MANUAL GEH-31-51543-2

MACHINE COMPARTMENT

...
...
31
RELAY START GEH-WR07X10072
...
35
DRYER GEH-WR87X23836
...
36
DRAIN PAN GEH-WR17X11673
...
41
LEVELING LEG REAR GEH-WR01X23922
...
165
CAPACITOR, COMPRESSOR GEH-WR62X10033
...
209
POWER CORD GEH-WR23X10373
...
210
COMPRESSOR REPL. KIT GEH-WR87X10076
...
211
OVERLOAD GEH-WR08X10049
...
577
CONDENSER FAN MOTOR GEH-WR60X10163
...
583
CONDENSER FAN SPRING PIN GEH-WR01X23838
...
587
FAN PROPELLER GEH-WR60X10164
...
751
FAN RUBBER GEH-WR01X10350
...
761
HARNESS ASM.COMP GEH-WR23X10374
...
763
COMPRESSOR MOUNTING KIT GEH-WR01X10452
...
816
CONDENSER FAN HOUSING GEH-WR17X11675
...
819
REAR ACCESS COVER GEH-WR82X10096
...
824
CONDENSER CANAL GEH-WR17X11679
...
825
CONDENSER ASM GEH-WR84X10067
...
828
POWER SUPPLY BOARD ASM GEH-WR55X10430
...
...
...
