GE XGBS400DM1WW Gas Range or Dual Fuel

Model: XGBS400DM1WW

Save
 Part Not Listed?Part Not Listed?
product name

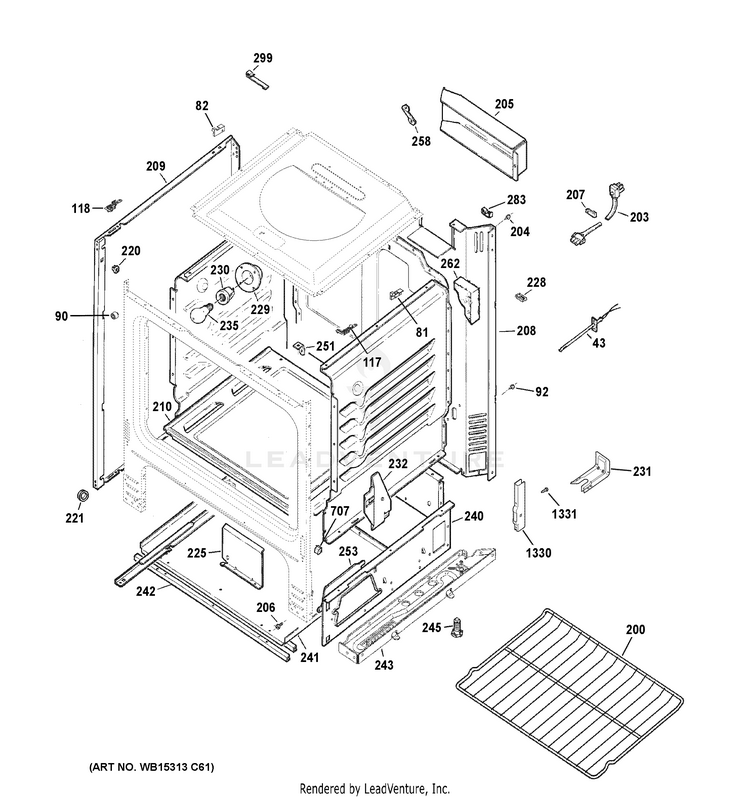

BODY PARTS

...
...
43
TEMPERATURE SENSOR GEH-WB20K10015
...
90
FRAME FRONT BUMPER GEH-WB02X28738
...
92
SCREW GROUND GEH-WB01X1261
...
200
OVEN RACK GEH-WB48X20249
...
203
LINE CORD GEH-WB18K10036
...
204
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
205
COVER BACK PANEL GEH-WB34K10144
...
206
SCREW GEH-WB01K10091
...
207
CLAMP CABLE GEH-WB02K0036
...
208
RANGE BACK GEH-WB63K0021
...
209
PANEL SIDE GEH-WB56X29122
...
210
BOTTOM OVEN GEH-WB35K10035
...
220
GROMMET GEH-WB02K0008
...
221
GROMMET GEH-WB02K10294
...
225
SHIELD VALVE GEH-WB34K0002
...
228
CLIP WIRE GEH-WB02X7066
...
229
HOUSING RECEPTACLE GEH-WB08K0001
...
230
RECEPTACLE PUSH-IN GEH-WB08T10026
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
232
HINGE GUARD LEFT GEH-WB34K0004
...
232
HINGE GUARD RIGHT GEH-WB34K0003
...
235
40A15 GEH-STD372401
...
239
PANEL REAR BROIL GEH-WB63X26606
...
240
PANEL SIDE BROIL RT GEH-WB63K0002
...
240
PANEL SIDE BROIL LFT GEH-WB63K0003
...
241
BOTTOM RANGE GEH-WB63K10029
...
242
BRACE BOTTOM GEH-WB63K0005
...
243
SUPPORT BASE RT GEH-WB63X20215
...
243
SUPPORT BASE LT GEH-WB63X20216
...
245
LEG LEVELER GEH-WB02K10182
...
251
ANGLE SUPPORT GEH-WB02K0003
...
253
COVER ACCESS SPRING GEH-WB02K0004
...
258
BRACE VENT GEH-WB38K0002
...
262
INSULATION OVEN BACK GEH-WB35K0016
...
283
CLIP CABLE GEH-WB02K0031
...
299
CLIP WIRE GEH-WB02K0038
...
707
CLIP WIRE GEH-WB02K10267
...
1330
RECEIVER HINGE GEH-WB10X20220
...
1331
SCREW MTG HINGE (TORX) GEH-WB01K0053

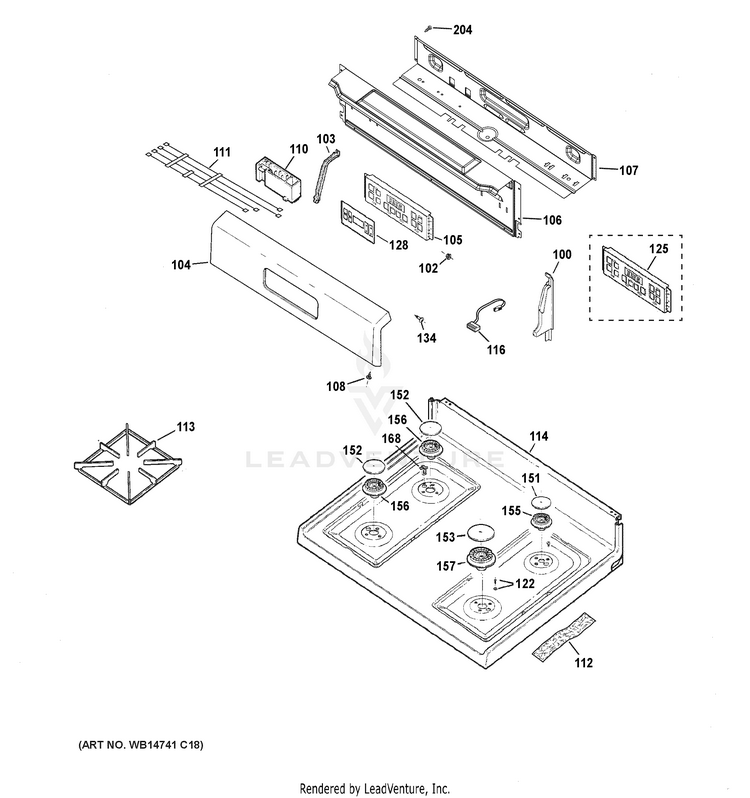

CONTROL PANEL & COOKTOP

...
...
100
END SUPPORT LF (WH) GEH-WB07K10196
...
100
END SUPPORT RT (WH) GEH-WB07K10195
...
102
SCREW GEH-WB01K0021
...
103
BRACKET CONTROL GEH-WB02K10074
...
104
WHITE BACKGUARD GEH-WB36X32366
...
105
CONTROL OVEN TO9 (GAS) GEH-WB27X26656
...
106
COVER BACK LOWER GEH-WB34K10129
...
107
COVER BACK UPPER GEH-WB34K10003
...
108
SCREW WH GEH-WB01X5874
...
110
IGNITION MODULE GEH-WB13X24323
...
111
ELECTRODES & HARNESS H.V. GEH-WB18X26607
...
112
FOIL COOKTOP GEH-WB35K10005
...
113
GRATE ASM HAIRPIN HV GEH-WB31X20643
...
114
WHITE RANGE TOP GEH-WB62X31580
...
116
HARNESS CONTROL GEH-WB18X32406
...
122
CKT SCREW GEH-WB01X24735
...
128
OVERLAY T09 GEH-WB07X22662
...
134
SCREW 8-18 AB HXW 5/8 S GEH-WB01T10016
...
151
ASM. CAP, BURNER SMALL V2 GEH-WB16X28654
...
152
ASM BURNER CAP (9500) GEH-WB29K10023
...
153
ASM BURNER CAP (12000) GEH-WB29K10024
...
155
BURNER, SMALL V2 GEH-WB16X24721
...
156
BURNER, LARGE V2 GEH-WB16X24723
...
157
BURNER, LARGE V2 GEH-WB16X24723
...
168
CLIP, IGNITER V2 GEH-WB02X24976
...
204
SCREW 8-18X5/8 HXW GEH-WZ04X0345

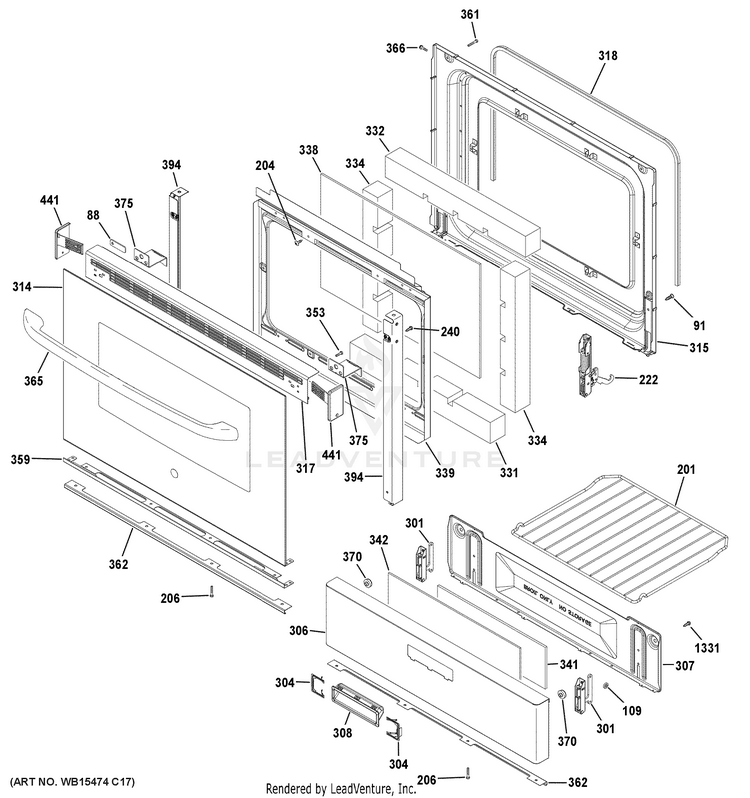

DOOR & DRAWER PARTS

...
...
88
PAD FELT (2") GEH-WB02K0062
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
109
SCREW #8-18 GEH-WB01X31119
...
201
OVEN RACK GEH-WB48X26677
...
204
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
206
SCREW GEH-WB01K10091
...
222
HINGE DOOR GEH-WB10X21979
...
240
PANEL SIDE BROIL RT GEH-WB63K0002
...
240
PANEL SIDE BROIL LFT GEH-WB63K0003
...
301
HINGE DOOR GEH-WB10X26678
...
304
CLIP BROIL HANDLE GEH-WB01X26891
...
306
PANEL DRAWER GEH-WB56X26688
...
307
LINER DRAWER GEH-WB56X26676
...
308
HANDLE BROIL GEH-WB15X26670
...
314
GLASS DOOR (WH) GEH-WB57K0005
...
315
LINER ASM WELD DOOR GEH-WB56X20206
...
317
TRIM VENT DOOR (WH) GEH-WB07K10191
...
318
GASKET DOOR ASM GEH-WB35X29720
...
331
BOTTOM INSULATION DOOR GEH-WB35K10147
...
332
INSULATION TOP DOOR GEH-WB35K10148
...
334
SIDE INSULATION DOOR GEH-WB35K10146
...
338
CRYSTAL WINDOW GEH-WB56X23809
...
339
GUARD INSULATION GEH-WB56K10033
...
341
INSULATION GEH-WB35X29083
...
342
PANEL SIDE FOIL GEH-WB35X26892
...
353
SCREW 8-22 PL 1HX 71 GEH-WB01K10012
...
359
TRIM BOTTOM ASM GEH-WB07K10250
...
361
SCREW 12-14, 5/8S GEH-WB01K0078
...
362
BARRIER DOOR GEH-WB07X20288
...
365
HANDLE GEH-WB15K10100
...
366
SCREW MTG END CAP (WH) GEH-WB01K0066
...
370
BUMPER DOOR GEH-WB02K10330
...
375
BRACKET DOOR GEH-WB02K10245
...
394
TRIM POST LEFT GEH-WB07X23480
...
394
TRIM POST RIGHT GEH-WB07X23481
...
441
END CAP DOOR RT (WH) GEH-WB07K0266
...
441
END CAP DOOR LFT (WH) GEH-WB07K0267
...
1331
SCREW MTG HINGE (TORX) GEH-WB01K0053

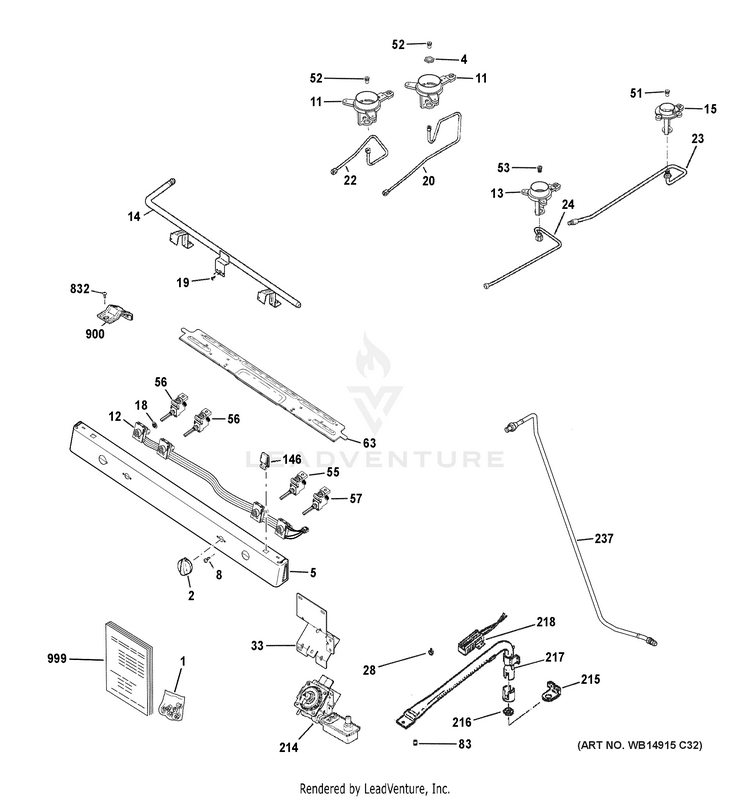

GAS & BURNER PARTS

...
...
1
KIT LP CONVERSION ASM GEH-WB28X26889
...
2
KNOB MINIVALVE GEH-WB03K10218
...
4
ECONOMIC NUT GEH-WB01K10037
...
5
WHITE MANIFOLD PANEL GEH-WB36X31444
...
8
SCREW 8-32 GEH-WB01K10002
...
11
INJET, MEDIUM V2 GEH-WB02X24727
...
12
SWITCHES HARNESS BURNER BOX GEH-WB18X31208
...
13
INJET, LARGE V2 GEH-WB02X24726
...
14
MANIFOLD PIPE GEH-WB28K10457
...
15
INJET, SMALL V2 GEH-WB02X24728
...
18
COVER VALVE GEH-WB02K0024
...
19
SCREW THERMOSTAT GEH-WB01K0008
...
20
REAR ORIFICE HOLDER LEFT GEH-WB28X26308
...
22
FRONT ORIFICE HOLDER LEF GEH-WB28X26306
...
23
REAR ORIFICE HOLDER RIGH GEH-WB28X26309
...
24
FRONT ORIFICE HOLDER GEH-WB28X26604
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
33
BRACKET REGULATOR GEH-WB02X22890
...
51
ORIFICE SPUD GEH-WB28K10834
...
52
ORIFICE-LP 89MM GEH-WB28K10023
...
53
ORIFICE-LP LG 99MM GEH-WB28K10032
...
55
ROUND VALVE BURNER 140 GEH-WB21K10169
...
56
ROUND VALVE BURNER 140 GEH-WB28K10578
...
57
ROUND VALVE BURNER 140 GEH-WB21K10170
...
63
MANIFOLD SUPPORT GEH-WB34X20680
...
83
OVEN ORIFICE SPUD GEH-WB28X21079
...
146
CLIP RANGETOP GEH-WB02K0052
...
214
VALVE CONTROL ASM NOR. S GEH-WB21X29149
...
215
BRACKET SAFETY VALVE GEH-WB02K0065
...
216
NUT LOCK GEH-WB01K0006
...
217
BURNER OVEN ASSY GEH-WB16X20253
...
218
IGNITER-OVEN BAKE GEH-WB13K0021
...
219
FLAME SPREADER GEH-WB49K0044
...
237
TUBE MANIFOLD SUPPLY ASM GEH-WB28X25363
...
832
SCREW THERMOSTAT GEH-WB01K10080
...
900
ROUND VALVE BRACKET GEH-WB02K10263
...
999
PM INSTALL INSTRUCTIONS GEH-31-11148
...
999
PM MANUAL MINI & WD ASM GEH-31-17307
...
999
HINGE SERVICE KIT GEH-WB49X21392
...
999
PM INSTALL INSTRUCTIONS GEH-31-10934
...
999
PM QUICK OWNERS MANUAL GEH-49-2000224
...
...
...
