GE WCVH6800J5WW Washer

Model: WCVH6800J5WW

Save
 Part Not Listed?Part Not Listed?
product name

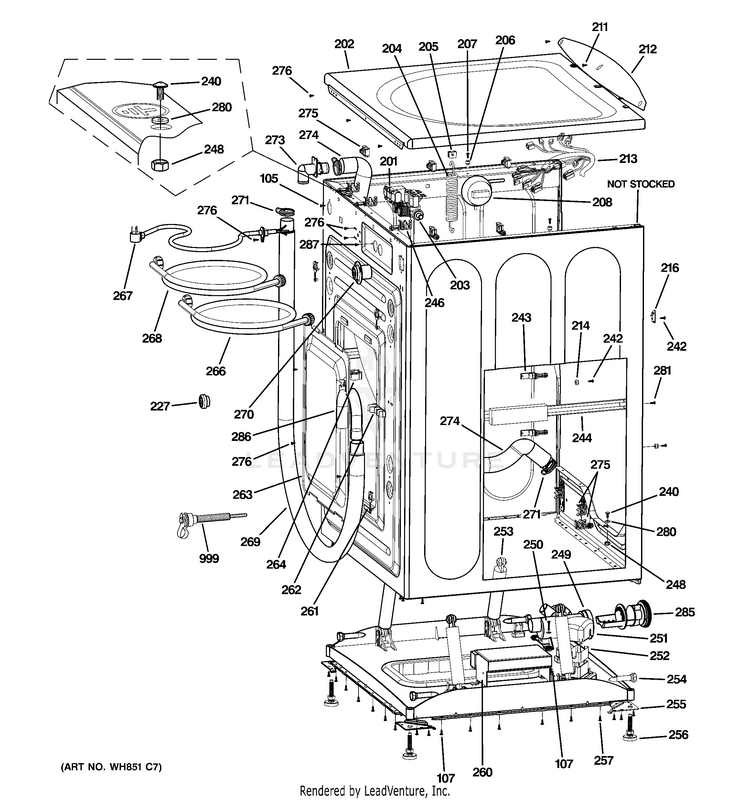

CABINET & TOP PANEL

...
...
105
SCREW_ST3.5 X 11 GEH-WH02X10181
...
107
SCREW_ST4*13 GEH-WH02X10183
...
201
EMI FILTER GEH-WH41X10298
...
202
TOP PANEL ASM WW GEH-WH44X10173
...
203
WATER VALVE GEH-WH13X10023
...
204
SUSPENSION_SPRING GEH-WH05X10009
...
205
SPRING_HANGER GEH-WH01X10251
...
206
TOP_PANEL_PIN GEH-WH01X10252
...
207
SCREW_ST 4.2X14 GEH-WH02X10187
...
208
PRESSURE SWITCH GEH-WH12X10522
...
211
SCREW ST4X11 GEH-WH02X10188
...
212
TOP DECOR COVER WW GEH-WH44X10174
...
213
WIRE_HARNESS GEH-WH19X10047
...
214
FRONT_PANEL_PIN GEH-WH01X10253
...
216
FRONT_PANEL_HANGER GEH-WH16X10073
...
227
INLET HOSE STRAINER GEH-WH01X10636
...
240
SCREW_M5*12 GEH-WH02X10198
...
242
SCREW_ST4.2*13 GEH-WH02X10182
...
243
WIRE_CATCH GEH-WH16X10074
...
244
SIDE_BRACKET GEH-WH16X10075
...
246
WIRE_CATCH GEH-WH16X10076
...
248
NUT_M5 GEH-WH02X10199
...
249
PUMP GEH-WH23X10028
...
250
SCREW_WASHER_ST4*25 GEH-WH02X10200
...
251
WIRING_COVER GEH-WH44X10176
...
252
INVERTER CONNECTORS SHIE GEH-WH44X10177
...
253
DAMPER - SHOCK GEH-WH01X10425
...
254
DAMPER_PIN GEH-WH01X10261
...
255
CORNER BRACKET GEH-WH16X10077
...
256
LEG GEH-WH46X10130
...
257
SCREW_ST4.2*13 GEH-WH02X10201
...
260
INVERTER GEH-WH12X10519
...
261
SHIPPING_SCREW_COVER GEH-WH44X10178
...
262
OUTSIDE_DRAIN_HOSE_CATCH GEH-WH01X10262
...
263
CABINET_REAR_COVER GEH-WH46X10132
...
264
INSIDE_DRAIN_HOSE_CATCH GEH-WH01X10263
...
266
MAIN_WATER_HOSE_COLD GEH-WH41X10286
...
267
POWER_CORD GEH-WH19X10046
...
268
MAIN_WATER_HOSE_HOT GEH-WH41X10287
...
269
OUTSIDE_DRAIN_HOSE GEH-WH41X10126
...
270
VENT_HOSE_COUPLING GEH-WH01X10264
...
271
DRAIN_HOSE_CLAMP GEH-WH01X10265
...
273
DRAIN_HOSE_COUPLING GEH-WH01X10266
...
274
INSIDE_DRAIN_HOSE GEH-WH41X10127
...
275
WIRE_CATCH_1 GEH-WH16X10078
...
276
SCREW ST4.2*11 GEH-WH02X10203
...
280
LOCK WASHER GEH-WH02X10218
...
281
SCREW_ST4*10 GEH-WH02X10219
...
285
PUMP FILTER GEH-WH23X10029
...
286
DRAIN HOSE GUIDE U-SHAPE GEH-WH41X10133
...
287
SCREW_ST4.2*13 GEH-WH02X10220
...
999
KIT - SHIPPING BOLT GEH-WH49X10047

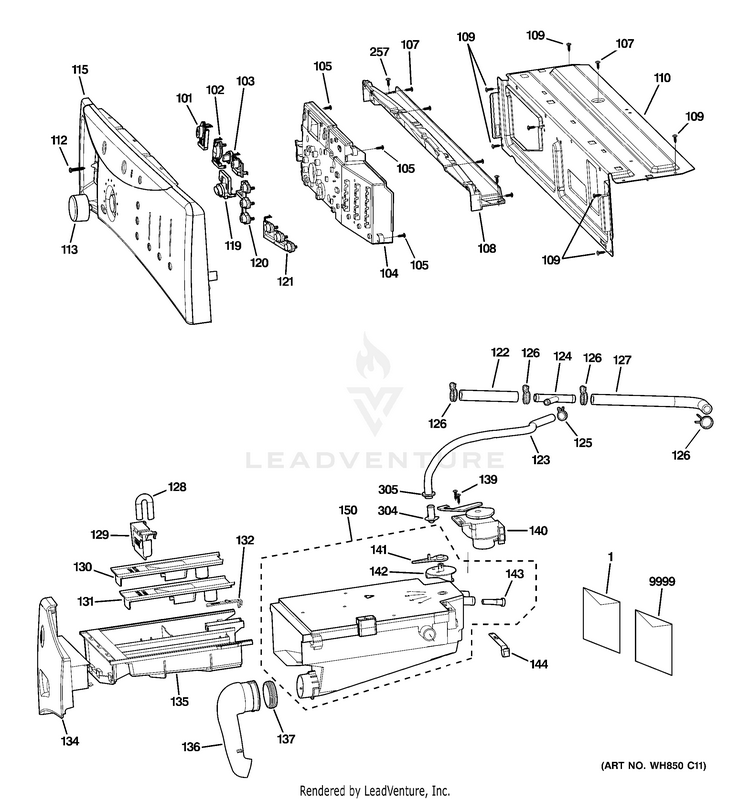

CONTROLS & DISPENSER

...
...
1
USER MANUAL GEH-49-90315
...
101
POWER BUTTON GEH-WH01X10239
...
102
START PAUSE BUTTON GEH-WH01X10240
...
103
CHILD LOCK BUTTON GEH-WH01X10241
...
104
CONTROL BOARD ASM GEH-WH12X10517
...
105
SCREW_ST3.5 X 11 GEH-WH02X10181
...
107
SCREW_ST4*13 GEH-WH02X10183
...
108
CONTROL_REAR_COVER GEH-WH16X10071
...
109
SCREW_ST4.2*13 GEH-WH02X10184
...
110
FRONT_TOP_BRACKET GEH-WH46X10122
...
112
SCREW_ST4*25 GEH-WH02X10185
...
113
SELECT CYCLE KNOB GEH-WH11X10054
...
115
CONTROL PANEL ASM WW GEH-WH42X10771
...
119
MY-CYCLE_BUTTON GEH-WH12X10304
...
120
RINSE_BUTTON GEH-WH12X10305
...
121
SOIL_SPEED_TEMP_BUTTON GEH-WH12X10306
...
122
INLET_WATER_HOSE_1 GEH-WH41X10108
...
123
SPRAY_HOSE GEH-WH41X10109
...
124
3_WAY_PIPE GEH-WH41X10110
...
125
3_WAY_PIPE_CLAMP GEH-WH01X10243
...
126
3_WAY_PIPE_CLAMP GEH-WH01X10244
...
127
INLET_WATER_HOSE GEH-WH41X10111
...
128
SIPHON_PIPE GEH-WH41X10112
...
129
LIQUID_DETERGENT_INSERT GEH-WH41X10113
...
130
BLEACH_COVER GEH-WH41X10114
...
131
SOFTENER COVER GEH-WH41X10115
...
132
DRAWER LATCH LEVEL GEH-WH01X10245
...
134
DISPENSER DWR FRONT WW GEH-WH41X10177
...
135
DRAWER DISPENSER GEH-WH41X10117
...
136
WATER_INLET_PIPE GEH-WH41X10118
...
137
DISPENSER_SEAL GEH-WH41X10119
...
139
SCREW ST 4*20 GEH-WH02X10186
...
140
DIVERTER GEH-WH43X10059
...
141
DIVERTER_INDICATOR GEH-WH01X10247
...
142
DIVERTER_LEVEL_PLATE GEH-WH01X10248
...
143
DISPENSER_INLET GEH-WH41X10121
...
144
DISPENSER_CLAMP GEH-WH01X10249
...
150
MAIN BOX DIVERTER ASM GEH-WH41X10283
...
257
SCREW_ST4.2*13 GEH-WH02X10201
...
304
GASKET_NOZZLE GEH-WH08X10021
...
305
GASKET_NOZZLE_WASHER GEH-WH02X10206
...
9999
KIT - STACKING WSH/DRY GEH-WE25X10028

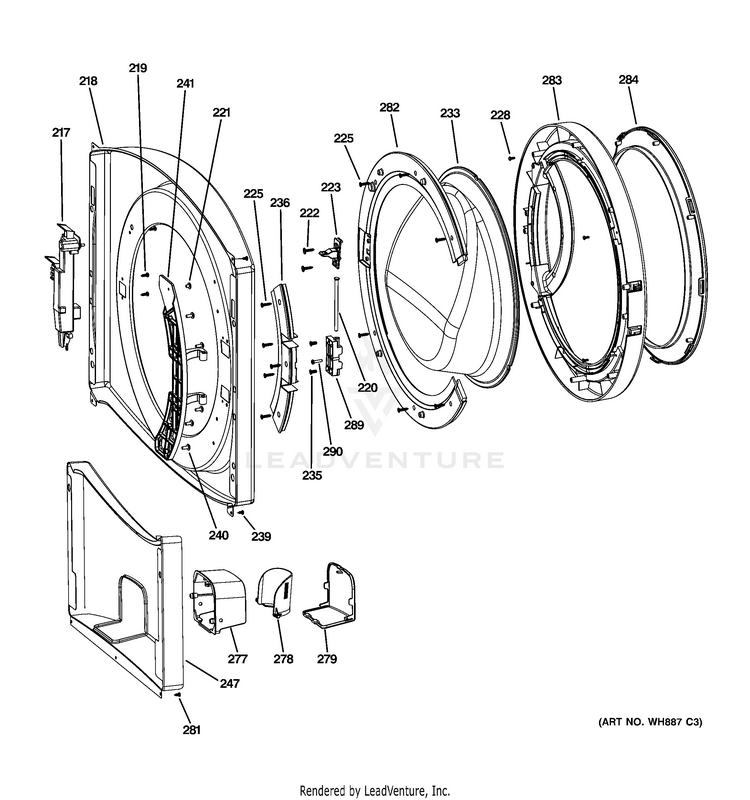

DOOR

...
...
217
DOOR_LOCK GEH-WH10X10006
...
218
FRONT PANEL WW GEH-WH46X10149
...
219
SCREW_ST4*13 GEH-WH02X10189
...
220
HINGE DOOR SHORT PIN GEH-WH01X10319
...
221
SCREW_M5*6 GEH-WH02X10190
...
222
SCREW_ST4*20 GEH-WH02X10191
...
223
DOOR PLUNGER GEH-WH01X10356
...
225
SCREW_ST4*20 GEH-WH02X10192
...
228
SCREW_ST3.5*9.5 GEH-WH02X10193
...
233
DOOR GLASS GEH-WH46X10150
...
235
SCREW_M5*12 GEH-WH02X10194
...
236
HINGE COVER GEH-WH44X10182
...
239
SCREW ST4.4*9.5 GEH-WH02X10197
...
240
SCREW_M5*12 GEH-WH02X10198
...
241
HINGE GEH-WH01X10511
...
247
SERVICE PANEL WW GEH-WH46X10188
...
277
PUMP ACCESS SHROUD GEH-WH01X10358
...
278
PUMP DRAIN CHANNEL GEH-WH01X10359
...
279
PUMP ACCESS DOOR WW GEH-WH01X10357
...
281
SCREW_ST4*10 GEH-WH02X10219
...
282
DOOR COVER ASM GEH-WH46X10185
...
283
DOOR FRAME-OUTER ASM GEH-WH46X10159
...
284
PROTECT COVER & RING GEH-WH46X10127
...
289
HINGE DOOR PLATE GEH-WH01X10340
...
290
SCREW M4*17 GEH-WH02X10252

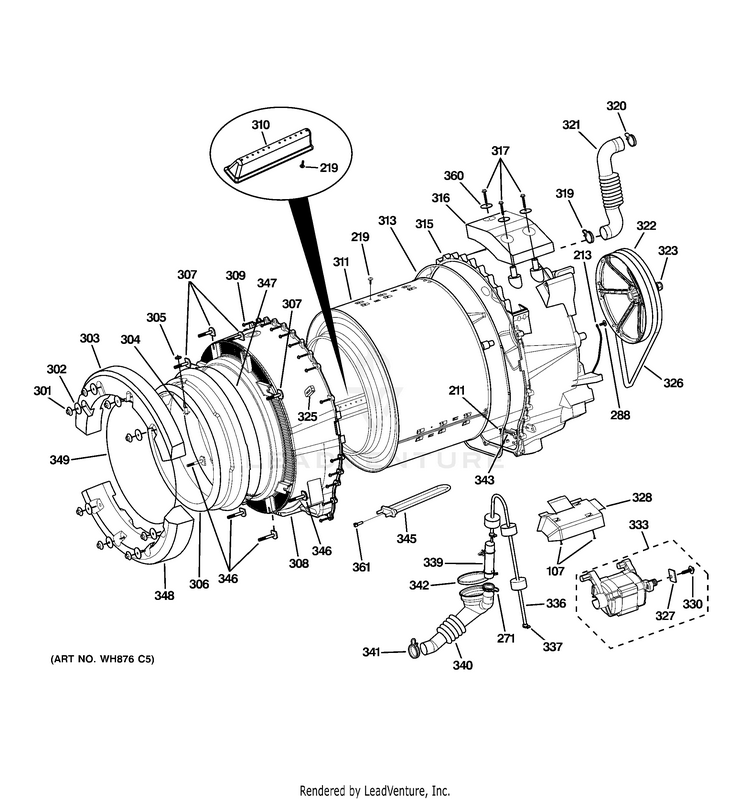

TUB & MOTOR

...
...
107
SCREW_ST4*13 GEH-WH02X10183
...
211
SCREW ST4X11 GEH-WH02X10188
...
213
WIRE_HARNESS GEH-WH19X10047
...
219
SCREW_ST4*13 GEH-WH02X10189
...
271
DRAIN_HOSE_CLAMP GEH-WH01X10265
...
288
SCREW M5*12 GEH-WH02X10234
...
301
NUT_M8 GEH-WH02X10204
...
302
WASHER GEH-WH02X10205
...
303
COUNTERWEIGHT FRONT UPPE GEH-WH01X10267
...
304
GASKET_NOZZLE GEH-WH08X10021
...
305
GASKET_NOZZLE_WASHER GEH-WH02X10206
...
306
GASKET GEH-WH08X10036
...
307
BOLT M8*48 GEH-WH02X10207
...
308
FRONT TUB GEH-WH45X10108
...
309
SCREW_ST6*35 GEH-WH02X10208
...
310
BAFFLE ASM GEH-WH16X10079
...
311
BASKET ASM GEH-WH45X10079
...
313
TUB_SEAL GEH-WH08X10023
...
315
REAR_TUB GEH-WH45X10071
...
316
COUNTERWEIGHT REAR GEH-WH01X10268
...
317
SCREW ST8*45 GEH-WH02X10210
...
319
BOTTOM_VENT_HOSE_CLAMP GEH-WH01X10270
...
320
VENT_HOSE_CLAMP GEH-WH01X10271
...
321
VENT_HOSE GEH-WH41X10128
...
322
DRIVE PULLEY KIT GEH-WH07X10016
...
323
NUT_M16 GEH-WH02X10211
...
325
AIR PIPE RUBBER GROMMET GEH-WH01X10634
...
326
DRIVING_BELT GEH-WH08X10024
...
327
MOTOR_WASHER GEH-WH02X10212
...
328
MOTOR_SHIELD GEH-WH16X10080
...
330
FLANGE_BOLT_M8*35 GEH-WH02X10213
...
333
MOTOR ASM KIT GEH-WH20X10028
...
336
HOSE - PRESSURE SWITCH GEH-WH41X10262
...
337
PRESSURE_HOSE_CLAMP GEH-WH01X10273
...
339
AIR_CHAMBER GEH-WH41X10130
...
340
DRAIN_HOSE GEH-WH41X10131
...
341
PUMP_CLAMP GEH-WH01X10275
...
342
TUB DRAIN HOSE CLAMP GEH-WH01X10276
...
343
HEATER SUPPORT GEH-WH16X10081
...
345
HEATER GEH-WH12X10309
...
346
BOLT 8X58 GEH-WH02X10216
...
347
GASKET INSIDE CLAMP GEH-WH01X10277
...
348
COUNTERWEIGHT FRONT LOWE GEH-WH01X10278
...
349
GASKET OUTSIDE CLAMP GEH-WH01X10279
...
360
WASHER GEH-WH02X10221
...
361
HEATER THERMISTOR GEH-WH12X10310
...
...
...
