product name

GE VPS10FGMCBB Refrigerator

Model: VPS10FGMCBB

Save
 Part Not Listed?Part Not Listed?
product name

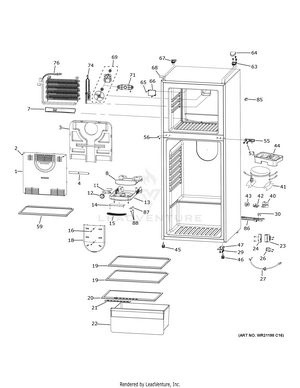

CABINET

...
...
1
EVAPORATOR COVER GEH-WR14X41805
...
2
EVAPORATOR COVER SCREW GEH-WR01X29254
...
3
EVAPORATOR COVER GEH-WR14X29253
...
4
AIR DUCT COVER GEH-WR14X29243
...
7
DRAIN TROUGH GEH-WR14X29251
...
8
COLD CONTROL HOUSING DUCT GEH-WR14X29247
...
11
THERMOSTAT GEH-WR09X30949
...
12
THERMOSTAT KNOB GEH-WR01X29289
...
13
COLD CONTROL HOUSING GEH-WR14X29246
...
14
LED BOARD GEH-WR55X29270
...
15
LED COVER GEH-WR14X30946
...
16
EVAPORATOR COVER SCREW GEH-WR01X29254
...
18
FRESH FOOD AIR TOWER GEH-WR14X30945
...
19
GLASS SHELF GEH-WR71X30200
...
20
VEGETABLE PAN COVER GEH-WR71X29296
...
21
VEGETABLE PAN CRISPER GEH-WR71X29297
...
22
VEGETABLE PAN GEH-WR71X29295
...
23
TIMER BOX GEH-WR14X29290
...
24
TIMER BOX COVER GEH-WR14X29291
...
26
ELECTRONIC DEFROST TIMER GEH-WR09X29252
...
27
POWER CORD GEH-WR55X29276
...
29
HEXAGON HEAD BOLTS GEH-WR01X29269
...
30
CAPACITOR GEH-WR55X32900
...
40
COMPRESSOR ELECTRICALS COVER GEH-WR87X32902
...
41
COMPRESSOR GEH-WR87X32901
...
42
OVERLOAD PROTECTOR GEH-WR87X32903
...
43
STARTER GEH-WR87X32904
...
44
DRAIN PAN GEH-WR14X29250
...
45
LEVELING LEG LEFT GEH-WR01X29272
...
46
LEVELING LEG RIGHT GEH-WR01X29273
...
47
BOTTOM HINGE GEH-WR13X29244
...
53
HEXAGON BOLT CROSS RECESSED GEH-WR01X29268
...
55
MIDDLE HINGE GEH-WR13X29274
...
56
MIDDLE HINGE PLUG BUTTON GEH-WR01X29275
...
59
FREEZER GLASS SHELF GEH-WR71X30948
...
63
TOP HINGE & PIN GEH-WR13X29292
...
64
TOP HINGE COVER GEH-WR13X29293
...
65
FLAT HEAD TAPPING SCREW GEH-WR01X29258
...
66
WIRING BOX COVER GEH-WR01X29298
...
67
TOP HINGE & PIN - LEFT GEH-WR13X43565
...
68
TOP HINGE HOLE COVER BLACK GEH-WR13X30954
...
69
EVAPORATOR FAN MOTOR GROMMET GEH-WR01X29257
...
71
EVAPORATOR FAN BRACKET GEH-WR14X29256
...
74
EVAPORATOR DEFROST HARNESS GEH-WR55X29255
...
76
DEFROST HEATER GEH-WR09X29249
...
85
LAMP SWITCH GEH-WR23X10699
...
86
COMPRESSOR BASE GEH-WR17X32533
...
87
MOUNTING CLIP GEH-WR02X33072
...
88
SCREW GEH-WR01X20039

DOORS

...
...
5
CONSERVATOR BADGE GEH-WR04X30852
...
48
REFRIGERATOR - FRESH FOOD DOOR GASKET BL GEH-WR14X29283
...
50
FRESH FOOD DOOR STOP GEH-WR01X29265
...
51
REFRIGERATOR - FRESH FOOD DOOR BLACK GEH-WR78X30953
...
52
FRESH FOOD DOOR BIN GEH-WR71X29263
...
54
FRESH FOOD GALLON BIN GEH-WR71X29266
...
57
RIGHT DOOR HINGE BUCKLE GEH-WR01X30952
...
58
FRESH FOOD DOOR RAIL BIN GEH-WR71X29264
...
60
FREEZER DOOR RAIL BIN GEH-WR71X29260
...
61
REFRIGERATOR - FREEZER DOOR GASKET BLACK GEH-WR14X29278
...
62
REFRIGERATOR - FREEZER DOOR BLACK GEH-WR78X29277
...
83
LEFT DOOR HINGE BUCKLE GEH-WR01X32412
...
84
LEFT FRESH FOOD DOOR STOP GEH-WR01X32411
...
999
PM OWNERS MANUAL GEH-49-1000110

LOKRING CONNECTORS

...
...
7000
6MM X 4MM LOKRING GEH-WR97X10033
...
7001
6MM X 2MM LOKRING GEH-WR97X10032
...
7002
6MM X 6MM LOKRING GEH-WR97X10031
...
7003
8MM X 8MM LOKRING GEH-WR97X10021
...
7004
8MM X 6MM LOKRING GEH-WR97X10036
...
7005
4MM X 4MM LOKRING GEH-WR97X10137
...
7006
R600a CHARGE CAN 50 GRAMS GEH-WR98X50
...
...
...
