GE RE2H80R6-1NCWW WATER HEATER

Model: RE2H80R6-1NCWW

Save
 Part Not Listed?Part Not Listed?
product name

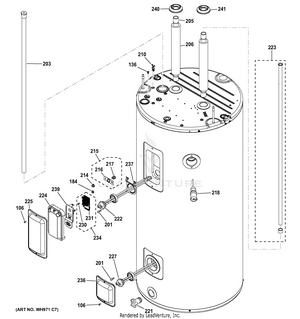

BODY PARTS

...
...
106
SCR 8-18 B PNT7/16 S RED GEH-WS02X10083
...
136
SCR 10-32 GX HXW 7/16 S GEH-WS02X10087
...
184
NUT KEPS 10-32 SPECIAL GEH-WH02X10300
...
201
SCR 10-32 PNUP 13/32 S GEH-WS02X10077
...
203
ROD ANODE GEH-WS02X10071
...
205
WATER EXTENSION PIPE GEH-WS07X20401
...
206
TUBE INSULATION, PIPE GEH-WS07X10031
...
210
WIRE TIE BALL GEH-WS02X10073
...
214
1/4-20 HEX NUT - LOCKING GEH-WS02X10075
...
215
T2 TANK THERMISTOR ASM GEH-WS17X10013
...
216
BRACKET THERMISTOR T2 GEH-WS28X10074
...
217
TANK THERMISTOR T2 GEH-WS17X10006
...
218
VALVE, TEMP/PRESSURE REL GEH-WS06X10014
...
221
VALVE DRAIN STRAIGHT GEH-WS06X20402
...
222
ELEMENT HEATING W GASKET GEH-WS51X10002
...
223
DIPTUBE ASM GEH-WS08X20361
...
224
COVER ELMNT (UPPER) EPS GEH-WS82X10006
...
225
COVER ELMNT METAL U. RED GEH-WS31X10055
...
227
ELEMENT HEATING W GASKET GEH-WS51X20161
...
230
SCR 10-32 PNUP 3/8 S GEH-WS02X10076
...
231
TCO (THERMAL CUT OUT) GEH-WS17X10009
...
234
TCO DLB AND SCREWS GEH-WS17X10012
...
236
COVER ELMNT METAL L. RED GEH-WS31X10056
...
237
CLIP SPRING TCO GEH-WS03X10074
...
239
BARRIER DIELECTRIC GEH-WS34X10026
...
240
GROMMET OUTLET, RED GEH-WS01X10050
...
241
GROMMET INLET, BLUE GEH-WS01X10051

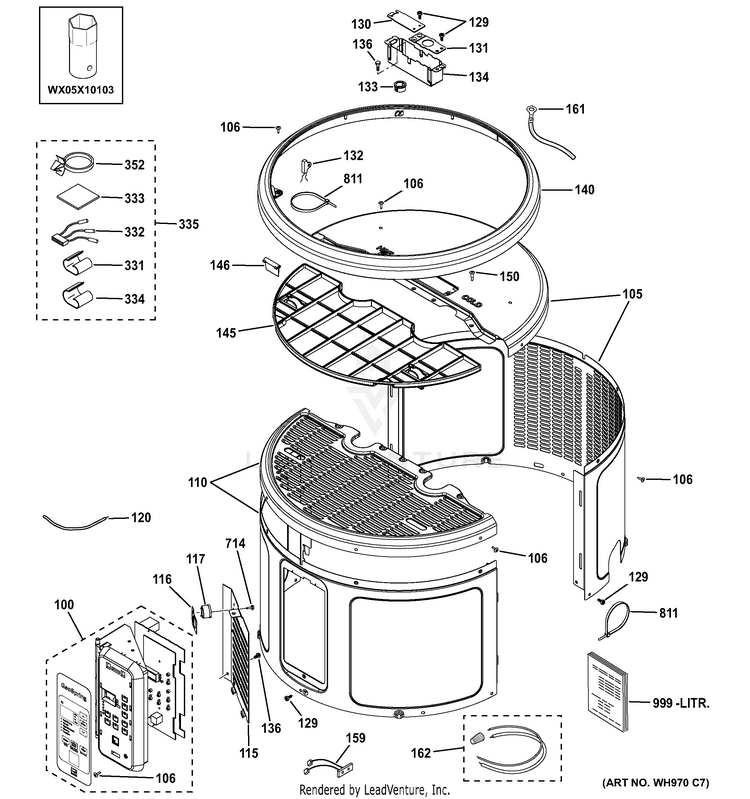

CONTROL PANEL & SHROUD

...
...
100
SERVICE KIT CONTROL ASM GEH-WS55X20521
...
105
REAR SHROUD ASM GEH-WS31X20222
...
106
SCR 8-18 B PNT7/16 S RED GEH-WS02X10083
...
110
CVR SHROUD FRONT, GRAY GEH-WS31X10063
...
115
REAR CONTROL COVER GEH-WS31X20384
...
116
BRKT OVERLOAD GEH-WS28X10075
...
117
OVERLOAD COMP GEH-WS08X20363
...
120
WIRE (E-D) YELLOW GEH-WS19X10033
...
129
SCR 10-32 GX PNT20 1/2 S GEH-WS02X10086
...
130
COVER ACCESS J- BOX GEH-WS01X20382
...
131
COVER FIXED J- BOX GEH-WS01X20383
...
132
SENSOR T5 GEH-WS17X10008
...
133
GROMMET DC (J-BOX) GEH-WS02X10072
...
134
CAVITY JUNCTION BOX GEH-WS01X20381
...
136
SCR 10-32 GX HXW 7/16 S GEH-WS02X10087
...
140
TRIM RING GEH-WS31X10061
...
145
FILTER AIR GEH-WS31X10058
...
146
COVER AIR FILTER SNAP GEH-WS01X10053
...
150
SCR 8-18 B PNT 3/4 S RED GEH-WS02X10084
...
159
T2 WIRE REPAIR KIT GEH-WS19X10040
...
161
GROUND WIRE TO J-BOX GEH-WS19X10038
...
162
WIRE L1-L2 REPAIR KIT GEH-WS19X10039
...
331
CLIP SENSOR (T3A/T4) GEH-WS02X10078
...
332
SENSOR (T3A/T3B/T4) GEH-WS17X10007
...
333
MASTIC THERMAL SENSOR GEH-WS03X10075
...
334
CLIP SENSOR (T3B) GEH-WS02X10079
...
335
SENSOR ASM (T3A/T3B/T4) GEH-WS17X10011
...
352
WIRE TIE/PLUG GEH-WH01X10217
...
811
WIRE TIE GEH-WR02X11607
...
999
PM USE & CARE GEH-49-50300
...
999
HYBRID WATER HEATER GEH-31-75035

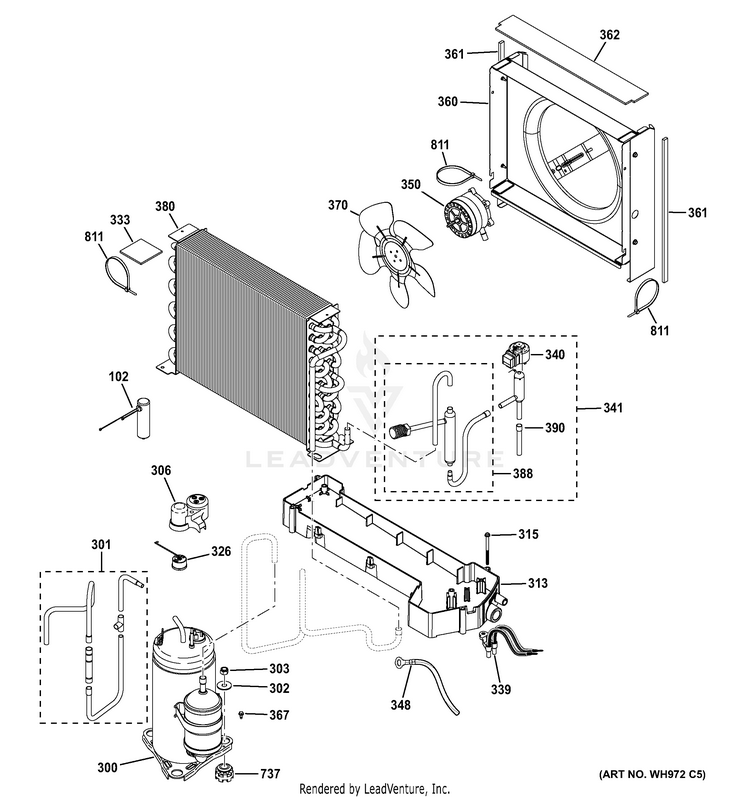

UNIT PARTS

...
...
300
COMPRESSOR GEH-WS87X20403
...
301
DISCHARGE TUBE ASM GEH-WS07X20406
...
306
COVER TERMINAL GEH-WS31X20404
...
313
SERVICE KIT DRAIN PAN GEH-WS35X20681
...
315
SCR 10-32 HXW 2 1/2 S GEH-WS02X10085
...
326
OVERLOAD COMP GEH-WS08X20405
...
333
MASTIC THERMAL SENSOR GEH-WS03X10075
...
339
TUBE DRYER GEH-WS07X20389
...
340
EEV VALVE GEH-WS17X20390
...
341
EEV VALVE ASM KIT GEH-WS35X20386
...
348
WIRE (G-B) GRD COMPRESSO GEH-WS19X10034
...
350
FAN MOTOR EC GEH-WS26X20393
...
360
FAN SHROUD ASM GEH-WS35X20392
...
361
SEAL FOAM BARRIER GEH-WS16X10003
...
362
SEAL FOAM EVAP GEH-WS16X10002
...
367
SCR 8-32 GX IHX 3/8 SCA GEH-WR01X10757
...
370
BLADE FAN GEH-WS26X20102
...
380
EVAPORATOR KIT GEH-WS35X20201
...
388
FILTER DRYER ASM GEH-WS86X20387
...
390
COMP PROCESS TUBE 5/16 GEH-WS07X10035
...
737
GROMMET GEH-WR02X22869
...
811
WIRE TIE GEH-WR02X11607
...
...
...
