GE PP962BM4BB Electric Range

Model: PP962BM4BB

Save
 Part Not Listed?Part Not Listed?
product name

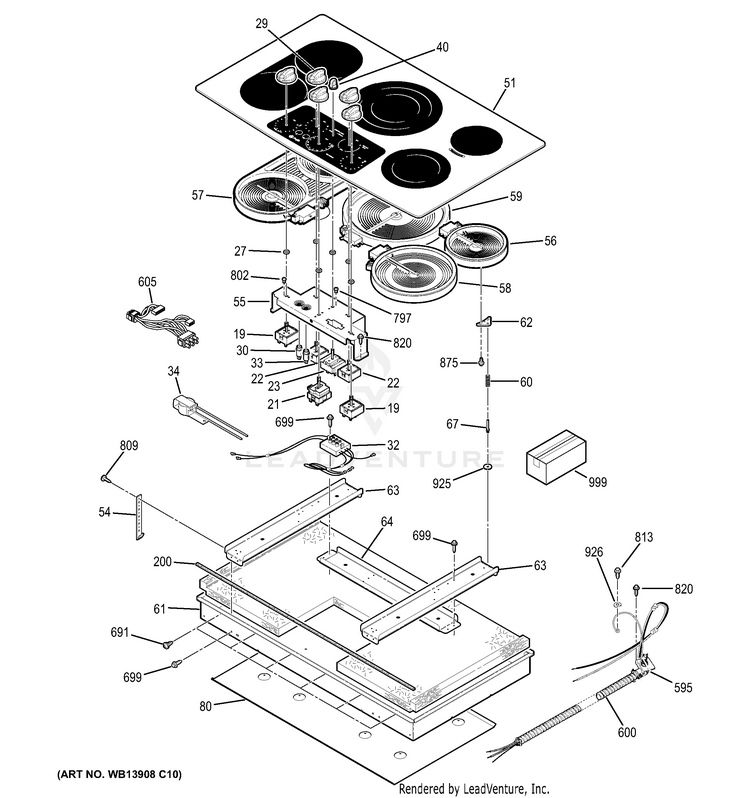

CONTROL PANEL & COOKTOP

...
...
19
SWITCH INFINITE CONTROL GEH-WB24X22301
...
21
SWITCH INF CNTL GEH-WB24T10133
...
22
SWITCH INFINITE CONTROL GEH-WB24X22302
...
23
SWITCH LOCKOUT GEH-WB24T10113
...
27
INFINITE CONTROL SEAL GEH-WB02X9504
...
29
KNOB INF (BL GEH-WB03T10025
...
30
INDICATOR LIGHT LOCKOUT GEH-WB25T10046
...
32
LIGHT INDICATOR ASM GEH-WB25T10092
...
33
INDICATOR LIGHT GEH-WB25T10012
...
34
BUZZER (240V) GEH-WB08T10038
...
40
KNOB SEL (BL GEH-WB03T10035
...
51
GLASS MAINTOP ASM GEH-WB62X22460
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
55
BRACKET INF SWITCH GEH-WB34X22305
...
56
ELEMENT RADIANT 6 WARMER GEH-WB30T10124
...
57
ELEMENT RADNT BRIDGE GEH-WB30T10152
...
58
ELEMENT HALIANT (DUAL) GEH-WB30T10135
...
59
ELEMENT HALIANT 12 TRPL GEH-WB30T10126
...
60
SPRING RADIANT (COMP) GEH-WB09T10005
...
61
BOTTOM BURN BOX GEH-WB64T10044
...
62
RADIANT HEATER BRACKET GEH-WB02K5318
...
63
BRACKET ELEM SUPPORT GEH-WB02T10602
...
64
BRACKET ELEM SUPPORT GEH-WB02T10330
...
67
RADIANT HEATER STUD GEH-WB02X9502
...
80
SHIELD BURN BOX BTM GEH-WB34T10104
...
200
PROTECTIVE TAPE GEH-WB02X11333
...
595
CONDUIT HARNESS PLATE GEH-WB02X9867
...
600
CONDUIT WIRE ASM GEH-WB18T10374
...
605
HARNESS WIRE MAIN RT GEH-WB18X22304
...
605
HARNESS WIRE MAIN LT GEH-WB18X22303
...
691
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
699
SCR 10-16 AB FLT15 3/8 S GEH-WB01X10426
...
797
SCREW GEH-WB01K5119
...
802
SCREW GEH-WB01K5123
...
809
SCREW GEH-WB01X1137
...
813
SCREW GROUND GEH-WB01X1261
...
820
SCREW GEH-WB01M0001
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
925
WASHER .250 ID X .812 OD GEH-WB01K5117
...
926
GROUND WASHER GEH-WB01X1260
...
999
PM MANUAL USE & CARE GEH-49-80413
...
999
PM INSTRUCTION INSTALL GEH-31-10636
...
999
GLASS CLEANER GEH-WB64X0093
...
...
...
