product name

GE PGP953DET1WW Gas Range Or Dual Fuel

Model: PGP953DET1WW

Save
 Part Not Listed?Part Not Listed?
product name

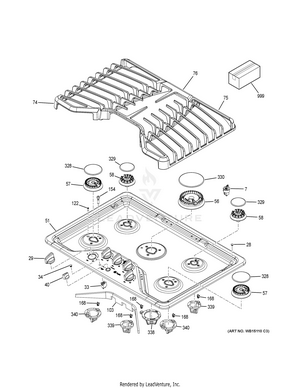

CONTROL PANEL & COOKTOP

...
...
7
KIT CONVERSION ASM GEH-WB28T10273
...
28
BUMPER (BK) GEH-WB28T10278
...
29
KNOB ASM (WH) GEH-WB03T10328
...
33
LIGHT INDICATOR PILOT GEH-WB27T10626
...
34
LENS GEH-WB25T10041
...
40
KNOB SELECTOR (WH) GEH-WB03T10318
...
51
MAINTOP GAS ASM 30 GEH-WB62T10819
...
56
VISION BURNER XL GEH-WB16K10062
...
57
BURNER MEDIUM (9500) GEH-WB16K10055
...
58
SMALL BURNER V 5K GEH-WB16K10070
...
74
GRATE LT 30 (PRF) GEH-WB31T10146
...
75
GRATE RT 30 (PRF) GEH-WB31T10145
...
76
GRATE CTR 30 (PRF) GEH-WB31T10147
...
103
INSULATION MAINTOP GEH-WB35T10246
...
122
SCR 6-32 CA OVT-15 5/8 GEH-WB01T10106
...
154
ELECTRODE TOP GEH-WB13K10014
...
168
CLIP-ELECTRODE GEH-WB01K10007
...
328
CAP BURNER ASM (15K) GEH-WB28K10222
...
329
ASM BURNER CAP (5000) GEH-WB29K10022
...
330
ASM BURNER CAP (9500) GEH-WB29K10023
...
338
BRACKET COOKTOP XL GEH-WB02K10082
...
339
CKT BRACKET SMALL GEH-WB02K10079
...
340
CKT BRACKET MEDIUM GEH-WB02K10078
...
999
PM MANUAL MINI & WD ASM GEH-31-14984
...
999
PM INSTALL INSTRUCTIONS GEH-31-10807
...
999
PM MANUAL USE & CARE GEH-49-80636
...
999
KIT BUTANE ASM GEH-WB28T10250
...
999
PM LP INSTRUCTIONS GEH-31-10783
...
999
KIT CONVERSION ASM GEH-WB28T10263

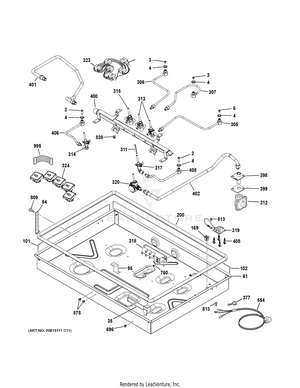

GAS & BURNER PARTS

...
...
2
ORIFICE SPUD LP 9.1K GEH-WB28T10246
...
3
ORIFICE SPUD LP 5K GEH-WB28T10245
...
4
ECONOMIC NUT GEH-WB01K10037
...
6
ORIFICE SPUD LP 17K GEH-WB28T10274
...
35
BUZZER (120V) GEH-WB08T10039
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
61
BOTTOM BURN BOX GEH-WB64T10070
...
95
BRACKET GEH-WB02T10567
...
101
INSULATION SIDE GEH-WB35T10249
...
102
INSULATION SIDE GEH-WB35T10250
...
169
VENTURI 15K LP GEH-WB16K10045
...
200
TAPE FOAM GEH-WB06T10016
...
305
TUBE BURNER ASM GEH-WB28T10268
...
306
TUBE BURNER ASM GEH-WB28T10269
...
307
TUBE BURNER ASM GEH-WB28T10277
...
311
PLUG VALVE STEM GEH-WB02T10569
...
312
REGULATOR CONVERT PRESS GEH-WB19T10089
...
313
VALVE GAS GEH-WB19T10084
...
314
VALVE GAS GEH-WB19T10085
...
315
VALVE GAS GEH-WB19T10093
...
317
VALVE GAS GEH-WB19T10092
...
318
SPARK MODULE (0+6) GEH-WB13T10047
...
319
CONTROL BOARD LED GEH-WB27T11382
...
320
VALVE LOCKOUT GEH-WB19T10039
...
323
HARNESS SWITCH GEH-WB18T10512
...
324
BOARD LED ASM GEH-WB17T10026
...
377
STRAIN RELIEF-RT ANGLE GEH-WB02K5275
...
398
SUPPLY INLET GEH-WB04T10082
...
399
SEAL MANIFOLD GEH-WB04T10084
...
400
BRACKET MANIFOLD ASM GEH-WB28T10249
...
401
TUBE MANIFOLD GEH-WB28T10251
...
402
TUBE SUPPLY GEH-WB28T10267
...
405
TUBE BURNER RF GEH-WB28T10272
...
406
TUBE BURNER ASM GEH-WB28T10276
...
408
STANDOFF GEH-WB02T10207
...
554
CORD RANGE GEH-WB08T10015
...
696
SCR 8-18X.450 AB FLT20 S GEH-WB01T10110
...
760
SCREW GEH-WB01K5028
...
809
SCREW GEH-WB01X1137
...
813
SCREW GROUND GEH-WB01X1261
...
838
SCREW GEH-WB01X1121
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
995
HARNESS WIRE BURNER GEH-WB18T10510
...
995
HARNESS WIRE BURNER GEH-WB18T10511
...
...
...
