product name

GE PGP7036DL1WW Gas Range Or Dual Fuel

Model: PGP7036DL1WW

Save
 Part Not Listed?Part Not Listed?
product name

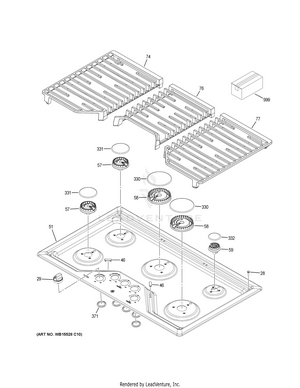

CONTROL PANEL & COOKTOP

...
...
28
BUMPER GEH-WB02X24790
...
29
KNOB ASM SS GEH-WB03X29354
...
46
BRIDGE BUMPER GEH-WB02X30761
...
51
MAINTOP ASM 36" WH GEH-WB62X29356
...
57
BURNER, MEDIUM V2 GEH-WB16X24724
...
58
BURNER, XL V2 GEH-WB16X24722
...
59
BURNER, SMALL V2 GEH-WB16X24721
...
74
GRATE LH GEH-WB31X29309
...
76
GRATE CTR GEH-WB31X29310
...
77
GRATE RH GEH-WB31X29308
...
330
CAP BURNER ASM (15K) GEH-WB28K10222
...
331
ASM BURNER CAP (9500) GEH-WB29K10023
...
332
ASM. CAP, BURNER SMALL V2 GEH-WB16X28654
...
371
SEAL CNTL (WHT) GEH-WB04T10040
...
999
PM GUIDE MINI GEH-49-80801
...
999
PM MANUAL MINI & WD ASM GEH-31-17258
...
999
PM INSTRUCTIONS INSTALL GEH-31-11100
...
999
PM INSTALL INSTRUCTIONS GEH-31-11089

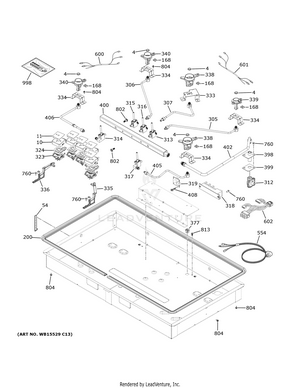

GAS & BURNER PARTS

...
...
4
ECONOMIC NUT GEH-WB01K10037
...
10
LED BOARD HOUSING WH GEH-WB02X29380
...
11
HOUSING FILM GEH-WB02X29383
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
168
CLIP, IGNITER V2 GEH-WB02X24976
...
200
BURNER BOX GASKET GEH-WB35X29395
...
305
GAS TUBE ASM RR GEH-WB28X29327
...
306
GAS TUBE ASM LR GEH-WB28X29328
...
307
GAS TUBE ASM CTR GEH-WB28X29351
...
312
REGULATOR CONVERT PRESS GEH-WB19T10089
...
313
GAS VALVE RR GEH-WB21X29318
...
314
GAS VALVE LF GEH-WB21X29321
...
315
GAS VALVE LR GEH-WB21X29319
...
316
GAS VALVE CTR GEH-WB21X29320
...
317
GAS VALVE RF GEH-WB21X29322
...
318
SPARK MODULE (0+6) GEH-WB13T10047
...
319
CONTROL BOARD LED GEH-WB27T11382
...
323
SWITCH HARNESS ASM GEH-WB18X33165
...
323
HARNESS SWITCH ASM GEH-WB18X29387
...
324
LED BOARD GEH-WB27X29381
...
333
MOUNTING BRACKET GEH-WB34X29323
...
334
MOUNTING BRACKET GEH-WB34X29316
...
335
MANIFOLD BRACKET RH GEH-WB34X29311
...
336
MANIFOLD BRACKET LH GEH-WB34X29312
...
338
INJET, XL V2 GEH-WB02X24725
...
339
INJET, SMALL V2 GEH-WB02X24728
...
340
INJET, MEDIUM V2 GEH-WB02X24727
...
377
STRAIN RELIEF-RT ANGLE GEH-WB02K5275
...
398
SUPPLY INLET GEH-WB04T10082
...
399
SEAL MANIFOLD GEH-WB04T10084
...
400
MANIFOLD TUBE AND CLAMP ASM GEH-WB28X29324
...
402
INLET GAS TUBE ASM GEH-WB28X29329
...
405
GAS TUBE ASM RF GEH-WB28X29325
...
406
GAS TUBE ASM LF GEH-WB28X29326
...
408
STANDOFF GEH-WB02T10207
...
554
CORD RANGE GEH-WB18X25912
...
600
IGNITERS AND HARNESS ASM LT GEH-WB18X29353
...
601
IGNITERS AND HARNESS ASM RT GEH-WB13X29294
...
602
HARNESS WIRE POWER GEH-WB18X29355
...
760
SCREW GEH-WB01K5028
...
802
SCREW 1/4-20 HXW GKT 3/4 GEH-WB01X30011
...
804
SCR 8-18 GEH-WB01X24092
...
813
SCR 10-32 GX HXW 7/16 S GEH-WS02X10087
...
998
NG HIGH ALTITUDE CONVERSION KIT GEH-WB28X29862
...
998
LP CONVERSION KIT GEH-WB28X29965
...
998
LP HIGH ALTITUDE CONVERSION KIT GEH-WB28X29861
...
...
...
