product name

GE PGB900DET2WW Gas Range

Model: PGB900DET2WW

Save
 Part Not Listed?Part Not Listed?
product name

BODY PARTS

...
...
43
TEMPERATURE SENSOR GEH-WB20K10027
...
92
SCREW GROUND GEH-WB01X1261
...
203
LINE CORD GEH-WB18K10080
...
204
SCREW (BLK) GEH-WB01K0042
...
204
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
205
COVER BACK LAMP GEH-WB34K10124
...
206
SCREW GEH-WB01K10091
...
207
CLAMP CABLE GEH-WB02K0036
...
208
RANGE BACK GEH-WB63K10188
...
209
PANEL SIDE GEH-WB63K10122
...
210
BOTTOM OVEN ASM GEH-WB35K10220
...
212
SPEEDNUT GEH-WB01K0002
...
213
NUT SPEED GEH-WB01K0003
...
220
GROMMET GEH-WB02K0008
...
228
CLIP WIRE GEH-WB02X7066
...
229
HOUSING RECEPTACLE GEH-WB08K0001
...
230
RECEPTACLE PUSH-IN GEH-WB08T10026
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
233
PLUNGER SWITCH GEH-WB24K10067
...
235
40A15 GEH-STD372401
...
236
SPACER BASE GEH-WB02K10104
...
238
SPACER BASE GEH-WB02K10270
...
239
PANEL REAR BROIL GEH-WB63K10039
...
240
PANEL SIDE BROIL RT GEH-WB63K0002
...
240
PANEL SIDE BROIL LFT GEH-WB63K0003
...
243
SUPPORT BASE LEFT GEH-WB63K10255
...
243
SUPPORT BASE RIGHT GEH-WB63K10256
...
245
LEG LEVELER GEH-WB02K10182
...
246
FRAME WELD ASM GEH-WB63K10261
...
247
OVEN TOP GEH-WB53K10017
...
248
OVEN SIDE GEH-WB53K10052
...
249
OVEN SIDE GEH-WB53K10053
...
250
OVEN BACK BK GEH-WB53K10054
...
253
COVER ACCESS SPRING GEH-WB02K0004
...
254
SCREW MTG HINGE (TORX) GEH-WB01K0053
...
256
GASKET VENT GEH-WB32K10051
...
257
VENT ASSY GEH-WB38K10008
...
258
BRACE VENT GEH-WB38K0002
...
259
DRAWER SLIDE ASSY LEFT GEH-WB39K10021
...
259
DRAWER SLIDE ASSY RIGHT GEH-WB39K10020
...
261
INSULATION OVEN WRAP GEH-WB35K10158
...
262
INSULATION OVEN BACK GEH-WB35K10161
...
274
SCREW LATCH GEH-WB01K0044
...
275
GLASS OVEN LAMP GEH-WB08K0005
...
276
BAIL GEH-WB02K0027
...
277
GASKET OVEN LIGHT GEH-WB32K0005
...
279
LATCH AUTOMATIC GEH-WB02K10339
...
283
CLIP CABLE GEH-WB02K0031
...
284
BOTTOM OVEN BRACKT SUPPO GEH-WB02K0032
...
286
CLIP WIRE GEH-WB02K10068
...
287
GUARD RADIATION LFT GEH-WB34K0031
...
287
GUARD RADIATION RT GEH-WB34K0030
...
288
BRACE BOTTOM GEH-WB63K0015
...
289
LOWER HEAT SHIELD GEH-WB34K10086
...
291
GUARD BOTTOM GEH-WB63K0016
...
292
BOTTOM INNER GUARD GEH-WB63K10187
...
295
INSULATION VENT GEH-WB35K10218
...
296
SHIELD HEAT INNER GEH-WB34K0013
...
299
CLIP WIRE GEH-WB02K0038
...
700
CLIP INSULATION GEH-WB02K10380
...
703
BRACKET OVEN CORNER GEH-WB02K0041
...
709
RETAINER INSULATION LAMP GEH-WB08K0004
...
780
DIFFUSER VENT GEH-WB38K10022
...
1120
BUMPER GEH-WB02K10179
...
1330
RECEIVER HINGE GEH-WB10K10029

CONTROL PANEL & COOKTOP

...
...
100
END SUPPORT LF WH GEH-WB07K10257
...
100
END SUPPORT RT WH GEH-WB07K10256
...
103
BRACKET CONTROL GEH-WB02K10150
...
104
TRIM CONTROL GEH-WB36K10697
...
105
TO11 CONTROL GEH-WB27K10376
...
106
COVER BACK UPPER GEH-WB34K10115
...
107
COVER BACK LOWER GEH-WB34K10129
...
108
SCREW (CR) GEH-WB01X5364
...
110
SPARK MODULE 6+0 GEH-WB13K10033
...
111
ELECTRODES & HV HARNESS GEH-WB18K10090
...
112
HINGE RANGE TOP GEH-WB14K10003
...
113
GRATE CAST GEH-WB31K10250
...
114
RANGETOP & BRKT ASM GEH-WB62K10166
...
115
GRATE CAST MID GEH-WB31K10248
...
116
GRATE CAST GEH-WB31K10251
...
117
PIN LOCATOR REAER GEH-WB14K10004
...
121
SCREW GEH-WB01K0001
...
121
SCREW 12-14, 5/8S GEH-WB01K0078
...
122
CKT SCREW GEH-WB01K10106
...
136
OVERLAY T011 GEH-WB27K10270
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM BURNER CAP (5000) GEH-WB29K10022
...
152
ASM BURNER CAP (12000) GEH-WB29K10024
...
153
CAP BURNER ASM (15K) GEH-WB28K10222
...
155
SMALL BURNER V 5K GEH-WB16K10070
...
156
BURNER 12K GEH-WB16T10046
...
157
VISION BURNER XL GEH-WB16K10062
...
159
BURNER MEDIUM (9500) GEH-WB16K10055
...
168
CLIP ELECTRODE GEH-WB01K10114
...
169
VENTURI 15K LP GEH-WB16K10083
...
170
SCREW WH GEH-WB01X5874
...
175
HARNESS GROUND GEH-WB18K10056
...
204
SCREW (BLK) GEH-WB01K0042
...
204
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
1100
SCREW 8-18 AB HXW 5/8 S GEH-WB01T10016

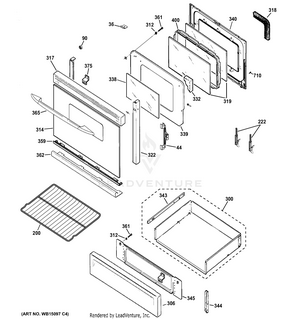

DOOR & DRAWER PARTS

...
...
36
BRACKET GLASS GEH-WB02K10350
...
44
BRACKET DOOR GEH-WB02K10355
...
90
BUMPER DOOR GEH-WB02K10330
...
200
RACK OVEN GEH-WB48K10034
...
222
HINGE DOOR GEH-WB10K10039
...
222
HINGE DOOR GEH-WB10K10040
...
300
KIT DRAWER BODY ASM GEH-WB49X26562
...
306
PANEL DRAWER (WHITE) GEH-WB36K10033
...
312
CONTOURED WASHER GEH-WB01X0119
...
314
GLASS DOOR (WH) GEH-WB57K10078
...
317
VENT TRIM GEH-WB07K10421
...
318
GASKET OVEN ASM GEH-WB32K10052
...
319
CRYSTAL WINDOW GEH-WB57K10174
...
322
TRIM POST LF GEH-WB07K10258
...
322
TRIM POST RT GEH-WB07K10259
...
332
INSULATION GEH-WB35K10222
...
332
INSULATION GEH-WB35K10221
...
338
CRYSTAL WINDOW GEH-WB56K0020
...
339
GUARD INSULATION DOOR GEH-WB34K10137
...
340
LINER DOOR WELD ASSEMBLY GEH-WB55K10084
...
344
BRACKET MOUNTING DRAWER GEH-WB39K0020
...
345
SUPPORT OVEN REAR GEH-NOT_STOCKED
...
359
TRIM BOTTOM ASM GEH-WB07K10250
...
361
SCREW 10-16 PL PNT 2.5 S GEH-WB01K0031
...
362
BARRIER DOOR GEH-WB07K10342
...
365
HANDLE PRF DOOR (WH) GEH-WB15T10141
...
375
BRACKET GEH-WB02K10341
...
400
FRAME WINDOW PACK ASM GEH-WB34K10141
...
710
SCREW - DOOR ASM (4 PER) GEH-WB01X0593

GAS & BURNER PARTS

...
...
1
KIT CONVERSION LP GEH-WB28K10836
...
1
PM OWNERS AND INSTALL GEH-49-85183
...
1
PM INSTALL INSTRUCTIONS GEH-31-10781
...
1
PM MINI MANUAL GEH-31-14974
...
2
KNOB COVER ASM GEH-WB03K10325
...
3
KNOB COVER ASM GEH-WB03K10326
...
4
ECONOMIC NUT GEH-WB01K10037
...
5
MANIFOLD PANEL GEH-WB36K10935
...
6
KNOB LOCATOR GEH-WB03K10320
...
8
SCREW 8-32 GEH-WB01K10002
...
9
BOX BURNER SP GEH-WB63K10190
...
10
CKT BRACKET SMALL GEH-WB02K10360
...
11
CKT BRACKET MDM & LGE GEH-WB02K10361
...
12
IGNIT SWITCHES & HARNESS GEH-WB24K10077
...
13
CKT BRACKET MDM & LGE GEH-WB02K10362
...
14
ROUND MANIFOLD PIPE GEH-WB28K10761
...
16
BRACKET COOKTOP XL GEH-WB02K10363
...
18
COVER VALVE GEH-WB02K0024
...
20
ORIFICE HOLDER ASM GEH-WB28K10744
...
22
ORIFICE HOLDER RF GEH-WB28K10735
...
23
ORIFICE HOLDER LF GEH-WB28K10736
...
24
ORIFICE HOLDER LR GEH-WB28K10389
...
25
ORIFICE HOLDER RR GEH-WB28K10737
...
26
BURNER BAKE GEH-WB16K10080
...
27
TUBE BURNER SUPPLY GEH-WB28K10168
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
29
ELBOW DUAL CAVITY GEH-WB28K10798
...
30
BURNER BROIL GEH-WB16K10078
...
37
IGNITER COVER GEH-WB34K0014
...
50
ORIFICE-LP 89MM GEH-WB28K10023
...
51
ORIFICE SPUD GEH-WB28K10834
...
52
ORIFICE SPUD LP 88L GEH-WB28K10214
...
53
ORIFICE SPUD LP GEH-WB28K10842
...
55
VALVE BURNER 270 GEH-WB21K10113
...
56
VALVE BURNER 270 GEH-WB21K10122
...
57
VALVE BURNER 270 HI-CAP GEH-WB21K10117
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
118
PIN LOCATOR FRONT GEH-WB14K10005
...
146
CLIP RANGETOP GEH-WB02K0052
...
206
SCREW GEH-WB01K10091
...
214
VALVE CONTROL ASM NOR. D GEH-WB19K10079
...
217
IGNITER GLOWBAR BROIL GEH-WB13K10020
...
218
IGNITER GLOWBAR GEH-WB13K10026
...
219
DEFLECTOR OVEN GEH-WB49K10037
...
237
TUBE BURNER SUPPLY ASM. GEH-WB28K10587
...
237
TUBE MANIFOLD SUPPLY GEH-WB28K10186
...
269
DEFLECTOR SIDE GEH-WB35K10048
...
270
DEFLECTOR GEH-WB49K10025
...
272
SHIELD BROIL GEH-WB49K10026
...
294
COVER TERMINAL GEH-WB63K10040
...
707
CLIP WIRE GEH-WB02K10267
...
832
SCREW THERMOSTAT GEH-WB01K10080
...
900
BRACKET VALVE GEH-WB02K10297
...
...
...
