product name

GE PEM31BM1TS Microwave Or Advantium

Model: PEM31BM1TS

Save
 Part Not Listed?Part Not Listed?
product name

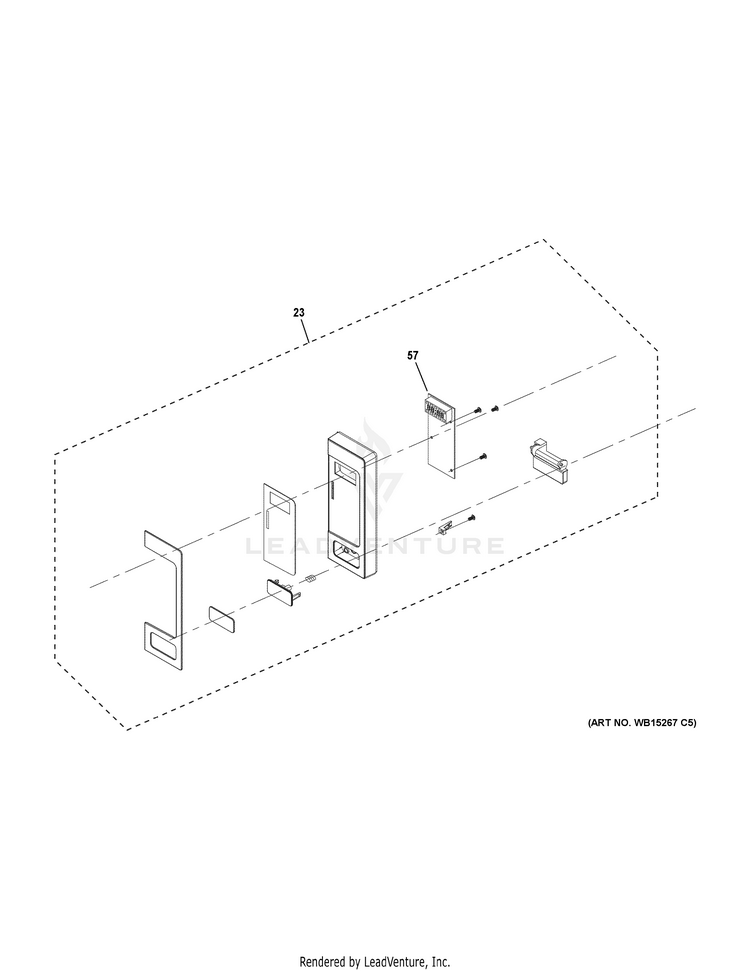

CONTROL PARTS

...
...
23
CONTROL PANEL BLACK STAINLESS STEEL GEH-WB56X32112
...
57
PCB ASM GEH-WB27X21308

DOOR PARTS

...
...
41
DOOR BLACK STAINLESS STEEL WITH FLAT GE GEH-WB56X32113
...
42
LATCH GEH-WB10X21310
...
43
SPRING, LATCH GEH-WB10X21334
...
44
DOOR HINGE GEH-WB10X21301
...
46
DOOR GASKET GEH-WB35X21300
...
9999
PM INSTALL INSTRUCTIONS GEH-49-40698
...
9999
PM OWNERS MANUAL GEH-49-40699
...
9999
PM TEMPLATE GEH-31-41082
...
9999
PM MINI MANUAL GEH-31-41083

OVEN CAVITY PARTS

...
...
1
FUSE GEH-WB27X11151
...
2
LAMP GEH-WB25X21309
...
3
TRANSFORMER, H.V. GEH-WB26X21335
...
4
TRAY MOTOR GEH-WB26X10252
...
5
HARNESS GEH-WB18X21306
...
6
THERMOSTAT 160/95 *V GEH-WB20X10054
...
7
THERMOSTAT 120/0 *H GEH-WB20X10056
...
8
HUMIDITY SENSOR GEH-WB24X21307
...
10
FILTER NOISE GEH-WB27X11140
...
11
MOUNTING PLATE,LH GEH-WB34X21316
...
16
TT COUPER GEH-WB02X29702
...
17
PLASTIC NAIL GEH-WB01X21329
...
18
OUTER CASE DARK DORIAN GRAY GEH-WB56X32111
...
19
GASKET GEH-WB35X21305
...
20
MICROSWITCH INTERLOCK GEH-WB02X21313
...
21
MICROSWITCH MONITOR GEH-WB02X21314
...
22
LEVER SWITCH GEH-WB06X10864
...
24
BOARD LATCH GEH-WB14X10049
...
25
CAPACITOR, H.V. GEH-WB24X21272
...
26
BRACKET GEH-WB06X10933
...
27
FOOT GEH-WB02X21302
...
29
HVDIODE GEH-WB27X10849
...
30
FAN GUIDE GEH-WB39X10031
...
31
POWER CORD ASM GEH-WB18X21330
...
32
ROLLER GUIDE RING GEH-WB02X21331
...
34
MAGNETRON GEH-WB26X21312
...
35
DUCT GEH-WB06X10917
...
37
TREY GEH-WB48X21336
...
38
FAN GEH-WB06X10860
...
39
MOTOR FAN GEH-WB26X21315
...
40
SIDE SHIELD GEH-WB34X21332
...
50
PLASTIC NAIL GEH-WB01X10418
...
51
COVER WAVE GUID GEH-WB39X10034
...
60
MOUNTING PLATE,RH GEH-WB34X21317
...
61
BASE PLATE GEH-WB63X21337
...
62
LOWER HINGE GEH-WB10X21338
...
63
FUSE H.V. ASM GEH-WB24X21304
...
...
...
