GE P2B940SEF1SS Gas Range Or Dual Fuel

Model: P2B940SEF1SS

Save
 Part Not Listed?Part Not Listed?
product name

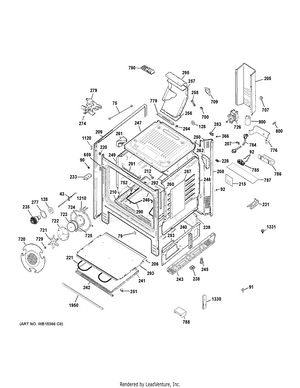

BODY PARTS

...
...
43
SENSOR-OVEN GEH-WB23X5340
...
75
HARNESS GROUND GEH-WB18K10083
...
79
SPACER SIDE GEH-WB02X20849
...
90
BUMPER DOOR GEH-WB02K10330
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
92
SCREW GROUND GEH-WB01X1261
...
128
LAMP INSULATION GEH-WB02K10349
...
205
GUARD TERMINAL GEH-WB34K10029
...
206
SCREW GEH-WB01K10091
...
207
CLAMP CABLE GEH-WB02K0036
...
208
RANGE BACK GEH-WB63X20419
...
209
PANEL SIDE GEH-WB63K10285
...
210
BOTTOM OVEN GEH-WB35K10209
...
212
SPEEDNUT GEH-WB01K0002
...
215
FIBER GLASS GEH-WB63K10048
...
220
GROMMET GEH-WB02K0008
...
221
HEATING ELEMENT GEH-WB44K10011
...
228
CLIP WIRE GEH-WB02X7066
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
233
PLUNGER SWITCH DUAL GEH-WB24X20445
...
235
OVEN LAMP HOLDER ASM GEH-WB08T10002
...
238
SPACER BASE FRONT GEH-WB16X20448
...
238
SPACER BASE REAR GEH-WB16X20449
...
239
PANEL REAR BROIL GEH-WB63K10039
...
240
PANEL SIDE BROIL LFT GEH-WB63K0003
...
240
PANEL SIDE BROIL RT GEH-WB63K0002
...
241
BOTTOM RANGE GEH-WB63K10041
...
242
BRACE BOTTOM GEH-WB63K0005
...
243
SUPPORT BASE LT GEH-WB63X20216
...
243
SUPPORT BASE RT GEH-WB63X20215
...
245
LEG LEVELER GEH-WB02K10182
...
246
FRAME WELD ASM GEH-WB63X20442
...
247
OVEN TOP GEH-WB63X20437
...
248
SIDE OVEN GEH-WB63K10247
...
249
SIDE OVEN GEH-WB63K10248
...
250
OVEN BACK GEH-WB63X20424
...
251
CLAMP-HEAT ELEMENT GEH-WB02K10023
...
253
COVER ACCESS SPRING GEH-WB02K0004
...
256
GASKET VENT GEH-WB35X20455
...
257
VENT ASSEMBLY GEH-WB34X20294
...
258
BRACE VENT GEH-WB34X20456
...
260
GASKET OVEN SEAL LG GEH-WB32K0002
...
261
INSULATION OVEN WRAP GEH-WB35X20915
...
262
INSULATION OVEN BACK GEH-WB35X25761
...
264
SUPPORT CATALYST GEH-WB35K10028
...
274
SCREW LATCH GEH-WB01K0044
...
277
GASKET OVEN LIGHT GEH-WB32K10044
...
279
LATCH AUTOMATIC GEH-WB10X20842
...
283
CLIP CABLE GEH-WB02K0031
...
287
GUARD RADIATION GEH-WB56X21578
...
290
BAKE ELEMENT GEH-WB44K10005
...
291
BROIL ELEMENT GEH-WB44K10002
...
292
SUPPORT BROIL GEH-WB28X20452
...
293
GUARD INSULATION BOTTOM GEH-WB35X20420
...
295
INSULATION VENT GEH-WB35X20447
...
366
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
659
CORD FIBER GLASS GEH-WB35X21685
...
700
CLIP INSULATION GEH-WB02K10380
...
707
CLIP WIRE GEH-WB02K10267
...
709
COVER LAMP GEH-WB08K10018
...
720
FAN COVER GEH-WB34K10142
...
721
FAN BLADE GEH-WB02X8351
...
722
FAN COVER BACK GEH-WB34K10038
...
723
FAN INSULATION GEH-WB35K10013
...
724
FAN SUPPORT GEH-WB02K10170
...
725
FAN INSULATOR GEH-WB35X20989
...
726
MOTOR PSC CONV GEH-WB26K10015
...
729
NUT GEH-WB02T10017
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
776
GUARD TERMINAL COMP GEH-WB34K10054
...
779
SUPPORT SMOKE ELIMINATOR GEH-WB38K10004
...
780
DIFFUSER VENT GEH-WB38K10022
...
784
LINE CORD KIT GEH-WB18K10014
...
785
BLOCK TERMINAL ASM GEH-WB17T10016
...
786
BRACKET MTG TERMINAL GEH-WB02K10052
...
787
PLATE-GROUND GEH-WB02X0646
...
788
COVER HEATING ELEMENT GEH-WB34K10128
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
900
CAPACITOR MOTOR GEH-WB08K10009
...
1120
BUMPER GEH-WB02K10171
...
1210
CONVECTION ELEMENT GEH-WB44X10051
...
1330
RECEIVER HINGE GEH-WB10K10029
...
1331
SCREW GEH-WB01K10057
...
1950
TRIM FRONT BOTTOM GEH-WB01K10072

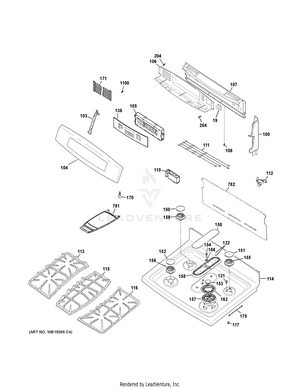

CONTROL PANEL & COOKTOP

...
...
19
BOARD RJ45 CONNECTOR GEH-WB27X21461
...
100
END SUPPORT GEH-WB07X20533
...
100
END SUPPORT GEH-WB07X20534
...
103
BRACKET CONTROL RIGHT GEH-WB02X20517
...
103
BRACKET CONTROL LEFT GEH-WB02X20518
...
104
TRIM CONTROL GEH-WB07X20360
...
105
CONTROL BOARD T012 ELE GEH-WB27X25341
...
106
COVER BACK UPPER GEH-WB34X20525
...
107
COVER BACK LOWER GEH-WB34K10129
...
108
SCREW (BLK) GEH-WB01K0042
...
110
SPARK MODULE 6+0 GEH-WB13K10033
...
111
HARNESS HV GEH-WB18X20380
...
112
HINGE RANGE TOP GEH-WB14K10003
...
113
GRATE CAST GEH-WB31K10250
...
114
RANGETOP & BRKT ASM GEH-WB62X20485
...
115
GRATE CAST MID GEH-WB31K10248
...
116
GRATE CAST GEH-WB31K10251
...
117
PIN LOCATOR REAER GEH-WB14K10004
...
121
CKT SCREW GEH-WB01K10106
...
122
SCREW GEH-WB01K0001
...
136
GLASS AND BOARD ASM GEH-WB27X20513
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM BURNER CAP (5000) GEH-WB29K10022
...
152
ASM BURNER CAP (12000) GEH-WB29K10024
...
153
BURNER CAP CENTRAL GEH-WB29K10045
...
154
ELECTRODE TOP GEH-WB13T10080
...
155
SMALL BURNER V 5K GEH-WB16K10070
...
156
BURNER 12K GEH-WB16T10046
...
157
3R BURNER ASM GEH-WB16K10079
...
158
OVAL BURNER ASM GEH-WB16K10076
...
159
BURNER MEDIUM (9500) GEH-WB16K10055
...
162
BURNER CAP OUTER GEH-WB29K10044
...
168
CLIP ELECTRODE GEH-WB01K10112
...
170
SCREW GEH-WB01X5754
...
171
HARNESS WIRE GLASS TOUCH GEH-WB18X20521
...
175
HARNESS GROUND GEH-WB18X20790
...
204
SCREW GEH-WB01K10111
...
204
SCREW GEH-WB01K0084
...
204
SCREW (BLK) GEH-WB01K0042
...
254
SCREW MTG HINGE (TORX) GEH-WB01K0053
...
781
REVERSIBLE GRIDDLE GEH-WB31K10236
...
782
COVER BACK GEH-WB34K10140
...
1100
SCREW GEH-WB01K0021

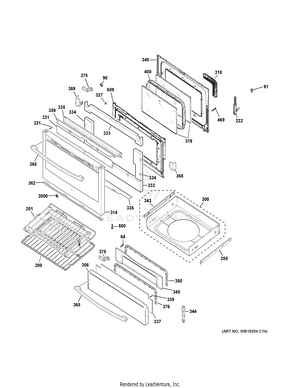

DOOR & DRAWER PARTS

...
...
64
SCREW M4X8 GEH-WB01X1189
...
90
BUMPER DOOR GEH-WB02K10330
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
200
OVEN RACK GEH-WB48X21508
...
201
RACK OVEN SLIDE ASM GEH-WB48X20990
...
222
HINGE DOOR GEH-WB10K10039
...
222
HINGE DOOR GEH-WB10K10040
...
259
DRAWER SLIDE ASSY RIGHT GEH-WB39K10020
...
259
DRAWER SLIDE ASSY LEFT GEH-WB39K10021
...
300
KIT DRAWER BODY ASM GEH-WB49X26562
...
306
PANEL DRAWER GEH-WB56X20978
...
314
GLASS DOOR ASM GEH-WB56X21451
...
318
GASKET OVEN ASM GEH-WB32K10052
...
319
CRYSTAL WINDOW GEH-WB57K10174
...
321
SCREW-MTG-DOOR GEH-WB01K10014
...
327
SPEEDNUT GEH-WB01K10093
...
331
INNER DOOR DEFLECTOR GEH-WB35X21565
...
332
INSULATION DOOR GEH-WB35X21566
...
333
INSULATION DOOR GEH-WB35X21568
...
334
INSULATION DOOR GEH-WB35X21567
...
335
DOOR STIFFENER GEH-WB34X21570
...
336
INSULATION TRIM GEH-WB35X21569
...
337
INSULATION DRAWER FRONT GEH-WB35K10053
...
339
SCREW-MTG-DOOR GEH-WB01K10014
...
340
LINER DOOR WELD ASSEMBLY GEH-WB55K10084
...
343
GUIDE- SLIDE DRAWER GEH-WB39K10022
...
344
BRACKET MOUNTING DRAWER GEH-WB39K0020
...
345
LINER DRAWER GEH-WB55K10055
...
359
COMPLEMENT VENT TRIM GEH-WB07X21510
...
360
SEAL DRAWER GEH-WB04K10003
...
362
BARRIER DOOR GEH-WB07X20288
...
365
HANDLE AND END CAP ASM GEH-WB15X27280
...
368
HEAT DEFLECTOR DOOR RT GEH-WB34X21571
...
369
HEAT DEFLECTOR DOOR LT GEH-WB34X21572
...
375
BRACKET HANDLE GEH-WB02X20522
...
376
PANEL DRAWER SPACER GEH-WB02X20979
...
400
FRAME WINDOW PACK ASM GEH-WB34K10141
...
469
SCR 10-16 AB TRW20 1/2 GEH-WB01K10116
...
609
DOOR GUARD GEH-WB34X21683
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
2000
GE BADGE GRAY GEH-WB02T10589X

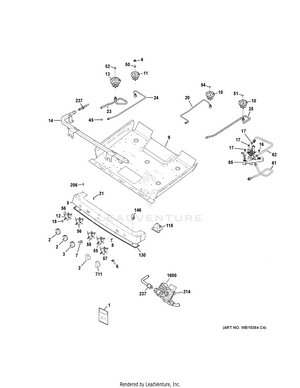

GAS & BURNER PARTS

...
...
1
CLEANER-SS GEH-WB02T10111
...
1
LP CONVERSION INST GEH-31-10923
...
1
PM OWNERS MANUAL GEH-49-85212
...
1
KIT HIGH ALTITUDE ASM GEH-WB28X20691
...
1
KIT LP CONVERSION ASM GEH-WB49X20387
...
1
PM MINI MANUAL GEH-31-17091
...
2
KNOB GE PROFILE ASM GEH-WB03X20563
...
3
KNOB GE PROFILE GRIDDDLE GEH-WB03X20565
...
4
ECONOMIC NUT GEH-WB01K10037
...
5
ASM MANIFOLD PANEL GEH-WB36X20918
...
6
KNOB LOCATOR GEH-WB03X20919
...
7
KNOB LOCATOR GEH-WB03X20973
...
8
SCREW 8-32 GEH-WB01K10002
...
9
BURNER BOX SP GEH-WB63X20464
...
10
CKT BRACKET SMALL GEH-WB02K10360
...
11
CKT BRACKET MDM & LGE GEH-WB02K10361
...
12
HARNESS SWITCHES GEH-WB18X20393
...
13
CKT BRACKET MDM & LGE GEH-WB02K10362
...
14
MANIFOLD PIPE GEH-WB28X20975
...
16
ORIFICE SPUD GEH-WB28K10694
...
17
ORIFICE SPUD GEH-WB28K10693
...
18
COVER VALVE GEH-WB02K0024
...
20
ORIFICE HOLDER ASM GEH-WB28X21513
...
21
SCR 8 HD 1/4 - 20 GEH-WB01K10067
...
23
ORIFICE HOLDER LF GEH-WB28X20607
...
24
ORIFICE HOLDER LR GEH-WB28X21953
...
25
ORIFICE HOLDER RR GEH-WB28X21954
...
45
FLAT WASHER-M4 GEH-WB01X1378
...
50
ORIFICE-LP 89MM GEH-WB28K10023
...
51
ORIFICE SPUD GEH-WB28K10834
...
52
ORIFICE SPUD LP 88L GEH-WB28K10214
...
54
ORIFICE SPUD LP 86L GEH-WB28K10215
...
55
VALVE BURNER 270 GEH-WB21X20469
...
56
VALVE BURNER 270 GEH-WB21X20470
...
57
VALVE BURNER 3R 310 GEH-WB21X20472
...
58
VALVE BURNER 270 GEH-WB21X20471
...
61
TUBE SIMMER DUAL VALVE GEH-WB28X20466
...
62
TUBE MAIN DUAL VALVE GEH-WB28X20467
...
65
INJECT TOP BURNER ASM GEH-WB28K10784
...
118
PIN LOCATOR FRONT GEH-WB14K10005
...
130
MANIFOLD EYEBROW GEH-WB35K10211
...
146
CLIP RANGETOP GEH-WB02K0052
...
206
SCREW GEH-WB01K10091
...
214
PRESSURE REGULATOR GEH-WB19K10018
...
237
TUBE MANIFOLD SUPPLY GEH-WB28X25365
...
711
KNOB GE PROFILE ASM GEH-WB03X20566
...
1600
VALVE LOCKOUT GEH-WB19K10059
...
...
...
