product name

GE Monogram ZV1050SF2SS Electric Range

Model: ZV1050SF2SS

Save
 Part Not Listed?Part Not Listed?
product name

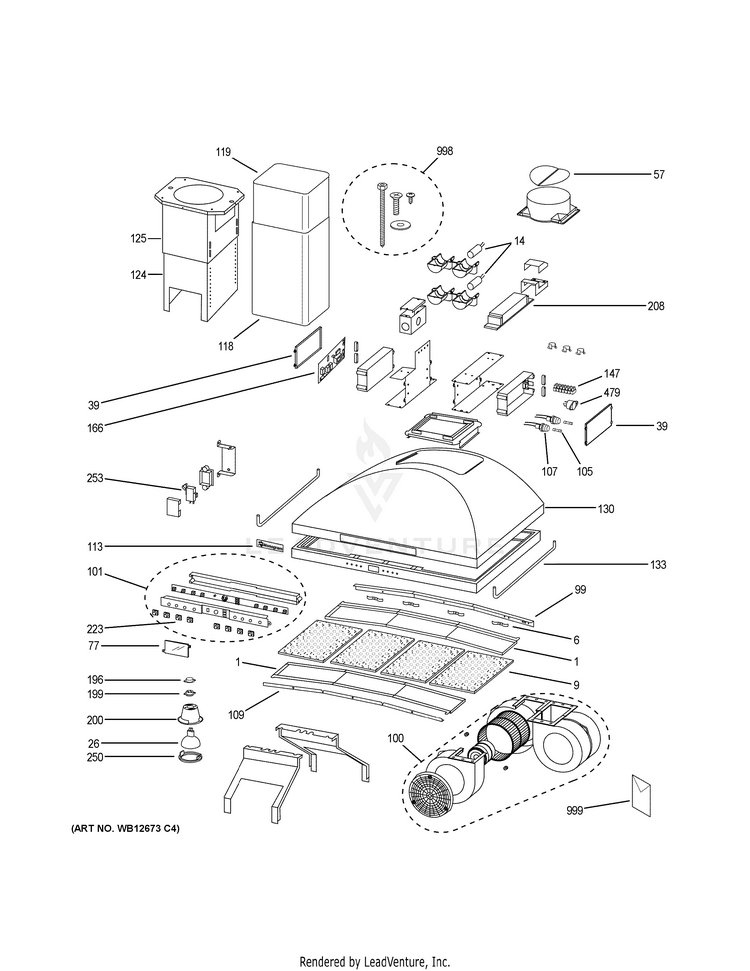

RANGE HOOD

...
...
1
FRAME GEH-WB63X10035
...
6
SPRING GEH-WB09X10029
...
9
GREASE FILT 4/BOX GEH-WB02X10888
...
14
CONDENSER GEH-WB17X10013
...
26
LAMP BULB GEH-WB08X10014
...
39
COVER GEH-WB02X10889
...
57
NON-RETURN FLAP GEH-WB02X10800
...
77
PLEXIGLAS GEH-WB02X10801
...
99
GREASE FILTER REAR BRACK GEH-WB02X10890
...
100
BLOWER ASSEMBLY GEH-WB26X10127
...
101
SWITCH BOX ASSEMBLY GEH-WB03X10168
...
105
FUSE 5 A 125V GEH-WB27X10542
...
107
FUSE HOLDER GEH-WB02X10647
...
109
GREASE FILTER FRONT BRAC GEH-WB02X11488
...
113
BADGE MONOGRAM SMALL GEH-WB02X10833
...
118
BOTTOM DUCT EXT.FOR VENT GEH-WB38X10135
...
119
UPPER DUCT EXT.FOR VENT GEH-WB38X10136
...
124
BOTTOM TELESCOPIC SKELET GEH-WB38X10092
...
125
UPPER TELESCOPIC SKELETO GEH-WB38X10091
...
130
FRONT PANEL GEH-WB07X11237
...
130
FRONT PANEL GEH-WB07X10827
...
133
CUTLERY HANGER, ACCESSOR GEH-WB02X10892
...
147
JUNCTION CLAMP GEH-WB02X10893
...
166
ELECTRICAL PRINTED CIRCU GEH-WB02X10894
...
196
REFLECTOR GEH-WB07X10651
...
199
CERAMIC INSULATION BASE GEH-WB02X10400
...
200
DICHROIC LAMP PROTECTION GEH-WB08X10001
...
208
TRANSFORMER GEH-WB17X10002
...
223
SWITCH BOTTOM GEH-WB03X10149
...
250
RING NUT GEH-WB01X10002
...
253
MICROSWITCH GEH-WB24X10001
...
479
TRIAC GEH-WB02X10402
...
998
HARDWARE PACK GEH-WB01X10204
...
999
INSTRUCTIONS INSTALL GEH-49-80153
...
999
USE & CARE GEH-49-80157
...
999
MINI - MANUAL GEH-31-20787
...
...
...
