product name

GE JV347H2BB Range Hood

Model: JV347H2BB

Save
 Part Not Listed?Part Not Listed?
product name

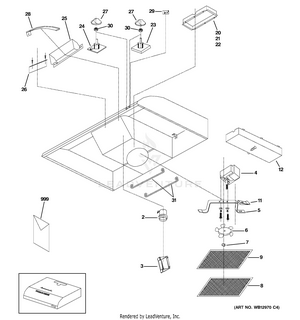

RANGE HOOD

...
...
2
LAMP SOCKET GEH-WB08X10037
...
3
LENS COVER GEH-WB02X11024
...
4
MOTOR GEH-WB26X10147
...
5
MOTOR BRACKET GEH-WB13X10013
...
6
FAN GEH-WB02X11025
...
7
FAN CLIP GEH-WB02X11026
...
8
CHARCOAL FILTER KIT GEH-WB02X10700
...
9
FILTER GREASE GEH-WB02X8391
...
11
RETAINING NUT GEH-WB02X11035
...
12
COVER, BB GEH-WB34X25409
...
20
PIVOT FRAME GEH-WB02X11028
...
21
COLLAR GEH-WB02X11029
...
22
DAMPER GEH-WB02X11030
...
23
FAN SWITCH GEH-WB24X10129
...
24
LAMP SWITCH GEH-WB24X10130
...
25
SWITCH BOX GEH-WB02X11031
...
26
COVER PLATE GEH-WB02X11032
...
27
KNOB GEH-WB03X10208
...
28
BRACKET GEH-WB02X11033
...
29
SWITCH PANEL GEH-WB02X11034
...
30
HEX NUT GEH-WB02X11325
...
31
FAN GUARD GEH-WB06X10769
...
999
U&C/INSTALL MANUAL GEH-49-80169
...
999
MANUAL USE & CARE GEH-49-80589

GE JV347H2BB

...
...
2
Lamp Socket GEH-WB08X10037
...
3
Lens Cover GEH-WB02X11024
...
4
Motor GEH-WB26X10147
...
5
Motor Bracket GEH-WB13X10013
...
6
Fan GEH-WB02X11025
...
7
Fan Clip GEH-WB02X11026
...
8
Filter Charcoal GEH-WB02X10700
...
9
Filter Grease GEH-WB02X8391
...
11
Retaining Nut GEH-WB02X11035
...
12
Cover, Bb GEH-WB34X25409
...
20
Pivot Frame GEH-WB02X11028
...
21
Damper GEH-WB02X11029
...
22
Collar GEH-WB02X11030
...
23
Fan Switch GEH-WB24X10129
...
24
Lamp Switch GEH-WB24X10130
...
25
Switch Box GEH-WB02X11031
...
26
Cover Plate GEH-WB02X11032
...
27
Knob GEH-WB03X10208
...
28
Bracket GEH-WB02X11033
...
29
Switch Panel GEH-WB02X11034
...
30
Hex Nut GEH-WB02X11325
...
31
Fan Gua GEH-WB06X10769
...
999
Manual Use & Care GEH-49-80589
...
999
U&C/Install Manual GEH-49-80169
...
...
...
