product name

GE JP3530DJ3BB Electric Range

Model: JP3530DJ3BB

Save
 Part Not Listed?Part Not Listed?
product name

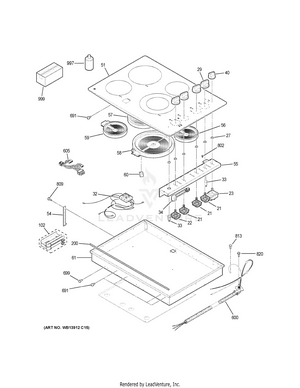

CONTROL PANEL & COOKTOP

...
...
21
SWITCH INFINITE CONTROL GEH-WB24X22341
...
22
SWITCH INFINITE CONTROL GEH-WB24X22340
...
23
LOCKOUT SWITCH GEH-WB24X24106
...
27
INFINITE CONTROL SEAL GEH-WB02X9504
...
29
KNOB BK GEH-WB03X29629
...
32
MODULE INDICATOR LIGHT GEH-WB18T10349
...
33
INDICATOR LIGHT GEH-WB25T10012
...
34
BUZZER GEH-WB18X24105
...
40
SELECTOR KNOB BB GEH-WB03X29623
...
51
MAINTOP GLASS & FRAME A GEH-WB62X24112
...
54
BRACKET HOLD DOWN GEH-WB02X24100
...
55
BRACKET INF SWITCH GEH-WB02X24099
...
56
ELEMENT RADIANT 5.5 IN GEH-WB30T10145
...
57
ELEMENT HALIANT 8 IN GEH-WB30T10136
...
58
ELEMENT RADIANT 9" DUAL GEH-WB30X24111
...
59
ELEMENT RADIANT 6 IN GEH-WB30T10129
...
60
SPRING RADIANT ELEMENT GEH-WB09T10013
...
61
BOTTOM BURN BOX GEH-WB63X24094
...
102
INSTALLATION KIT GEH-WB01X24570
...
200
TAPE FOAM GEH-WB02X26088
...
600
CONDUIT WIRE ASM GEH-WB18X26942
...
605
HARNESS WIRE INF LT GEH-WB18X26943
...
605
HARNESS WIRE INFINITE GEH-WB18X24519
...
605
HARNESS WIRE INF RT GEH-WB18X24109
...
605
HARNESS WIRE MAINTOP LT GEH-WB18X26944
...
605
HARNESS WIRE MAINTOP RT GEH-WB18X24504
...
691
SCR 8-18 GEH-WB01X24092
...
699
SCR 8-18X GEH-WB01X24096
...
802
SCR 8-32 TT FLP .270 GEH-WB01X23501
...
809
SCREW GEH-WB01X1137
...
813
SCR 10-32 GX HXW 7/16 S GEH-WS02X10087
...
820
SCREW GEH-WB01M0001
...
997
GLASS CLEANER GEH-WB64X0093
...
999
PM OWNERS MANUAL GEH-49-80745
...
999
PM INSTALL INSTRUCTIONS GEH-31-11072
...
999
PM MANUAL MINI & WD ASM GEH-31-17203
...
...
...
