product name

GE JP3030SJ4SS Electric Range

Model: JP3030SJ4SS

Save
 Part Not Listed?Part Not Listed?
product name

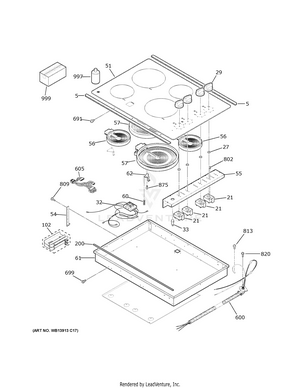

CONTROL PANEL & COOKTOP

...
...
5
TRIM ASM, SS GEH-WB07X25210
...
21
SWITCH INFINITE CONTROL GEH-WB24X22341
...
27
INFINITE CONTROL SEAL GEH-WB02X9504
...
29
KNOB SS GEH-WB03X29631
...
32
MODULE INDICATOR LIGHT GEH-WB18T10349
...
33
INDICATOR LIGHT GEH-WB25T10012
...
51
MAINTOP GLASS & FRAME A GEH-WB62X24097
...
54
BRACKET HOLD DOWN GEH-WB02X24100
...
55
BRACKET INF SWITCH GEH-WB02X24099
...
56
ELEMENT RADIANT 5.5 IN GEH-WB30T10145
...
57
ELEMENT HALIANT 8 IN GEH-WB30T10136
...
60
SPRING RADIANT ELEMENT GEH-WB09T10013
...
61
BOTTOM BURN BOX GEH-WB63X24094
...
62
BRACKET RADIANT ELEMENT GEH-WB02X20902
...
63
BRACKET RADIANT ELEMENT GEH-WB02X24098
...
102
INSTALLATION KIT GEH-WB01X24570
...
200
TAPE FOAM GEH-WB02X26088
...
600
CONDUIT WIRE ASM GEH-WB18X32525
...
605
HARNESS WIRE INF LT GEH-WB18X32523
...
605
HARNESS WIRE MAINTOP RT GEH-WB18X32558
...
605
HARNESS WIRE MAINTOP LT GEH-WB18X32536
...
605
HARNESS WIRE INF RT GEH-WB18X32535
...
691
SCR 8-18 GEH-WB01X24092
...
699
SCR 8-18X GEH-WB01X24096
...
802
SCR 8-32 TT FLP .270 GEH-WB01X23501
...
809
SCREW GEH-WB01X1137
...
813
SCR 10-32 GX HXW 7/16 S GEH-WS02X10087
...
820
SCREW GEH-WB01M10002
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
997
GLASS CLEANER GEH-WB64X0093
...
999
PM OWNERS MANUAL GEH-49-80745
...
999
PM INSTALL INSTRUCTIONS GEH-31-11072
...
...
...
