GE JGSS66FEL1DS Gas Range Or Dual Fuel

Model: JGSS66FEL1DS

Save
 Part Not Listed?Part Not Listed?
product name

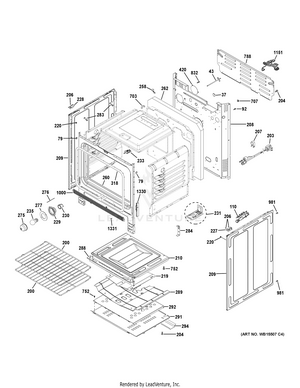

BODY PARTS

...
...
37
COVER IGNITOR GEH-WB34X24753
...
43
SENSOR ASM GEH-WB24X25557
...
79
SPACER SIDE GEH-WB02X20849
...
92
SCREW GROUND GEH-WB01X1261
...
110
SPARK MODULE 6+0 GEH-WB13K10033
...
200
OVEN RACK GEH-WB48X20249
...
203
LINE CORD GEH-WB18X28854
...
204
SCREW (BLK) GEH-WB01K0042
...
206
SCR 8-18 AB X 5/16S GEH-WB01X26995
...
207
CLAMP CABLE GEH-WB02K0036
...
208
RANGE BACK GEH-WB63X28837
...
209
PANEL SIDE GEH-WB56X28847
...
210
BOTTOM OVEN ASM GEH-WB63X20914
...
219
FLAME SPREADER GEH-WB49K0044
...
220
GROMMET GEH-WB02K0008
...
227
FRONT SUPPORT RH GEH-WB34X28747
...
228
FRONT SUPPORT LH GEH-WB34X28749
...
229
HOUSING RECEPTACLE GEH-WB08K0001
...
230
RECEPTACLE PUSH-IN GEH-WB08T10026
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
233
PLUNGER SWITCH DUAL GEH-WB24X28840
...
235
40A15 GEH-STD372401
...
258
BRACE VENT GEH-WB38K0002
...
260
GASKET OVEN SEAL LG GEH-WB32K0002
...
262
INSULATION OVEN BACK GEH-WB35X20370
...
275
GLASS OVEN LAMP GEH-WB08K0005
...
276
BAIL GEH-WB02K0027
...
277
GASKET OVEN LIGHT GEH-WB32K0005
...
283
CLIP CABLE GEH-WB02K0031
...
284
BOTTOM OVEN BRACKT SUPPO GEH-WB02K0032
...
288
BRACE BOTTOM GEH-WB63K0015
...
289
LOWER HEAT SHIELD GEH-WB34K10086
...
291
GUARD BOTTOM GEH-WB63K0016
...
292
BOTTOM INNER GUARD GEH-WB63K10187
...
294
COVER TERMINAL GEH-WB63K10040
...
318
GASKET ASM DOOR GEH-WB35X29668
...
420
COVER BACK GEH-WB34K0016
...
703
BRACKET OVEN CORNER GEH-WB02K0041
...
707
CLIP WIRE GEH-WB02K10267
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
788
COVER BACK GEH-WB34X21575
...
832
SCREW GEH-WB1K21
...
981
SCREW GEH-WB01K10091
...
1000
TRIM FRONT FRAME GEH-WB34X24779
...
1151
HARNESS MAIN GEH-WB18X28906
...
1330
RECEIVER HINGE GEH-WB10X20220
...
1331
SCREW 10-32 TR T GEH-WB01T10008

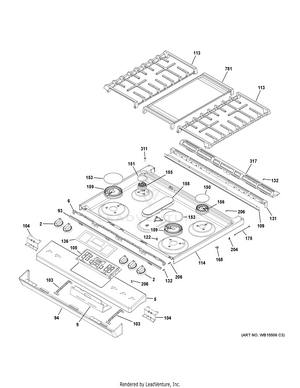

CONTROL PANEL & COOKTOP

...
...
2
KNOB ASSEMBLY GEH-WB03X28132
...
5
PANEL MANIFOLD UPPER GEH-WB36X30811
...
6
PANEL COMPLEMENT GEH-WB36X28810
...
9
CTRL INSULATION HOUSING GEH-WB35X28981
...
93
PANEL MANIFOLD GEH-WB36X28858
...
94
MANIFOLD PANEL LOWER GEH-WB36X29269
...
103
BRACKET GEH-WB34X28665
...
104
BRACKET GEH-WB34X28238
...
105
CONTROL OVEN TO9 (GAS) GEH-WB27X29031
...
109
BACKGUARD COMPLEMENT GEH-WB34X28912
...
113
GRATE ASM GEH-WB31X28755
...
114
RANGE TOP GEH-WB62X28233
...
122
CKT SCREW GEH-WB01X24735
...
131
TRIM KIT GEH-WB07X28825
...
132
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
136
OVERLAY T09 GEH-WB07X28841
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM. CAP, BURNER SMALL V2 GEH-WB16X28654
...
153
CAP BURNER ASM (15K) GEH-WB28K10222
...
155
BURNER, SMALL V2 GEH-WB16X24721
...
156
BURNER, MEDIUM V2 GEH-WB16X24724
...
158
OVAL BURNER ASM GEH-WB16K10076
...
159
BURNER, XL V2 GEH-WB16X24722
...
168
CLIP, IGNITER V2 GEH-WB02X24976
...
175
HARNESS GROUND GEH-WB18X30063
...
204
SCREW (BLK) GEH-WB01K0042
...
206
SCR 8-18 AB X 5/16S GEH-WB01X26995
...
311
BUMPER GEH-WB02X24790
...
317
VENT TRIM GEH-WB07X28819
...
781
GRIDDLE ALUMINUM GEH-WB31X24738

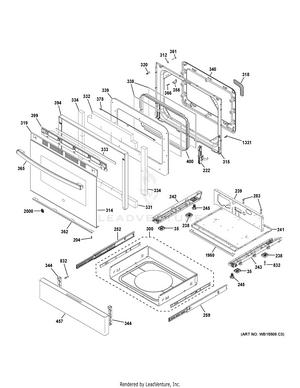

DOOR & DRAWER PARTS

...
...
35
SPACER BASE FRONT GEH-WB16X20448
...
204
SCREW (BLK) GEH-WB01K0042
...
222
HINGE DOOR GEH-WB10X21659
...
238
SPACER BASE REAR GEH-WB16X20449
...
239
PANEL REAR BROIL GEH-WB63K10203
...
241
BOTTOM RANGE GEH-WB63K10041
...
242
SUPPORT BASE LT GEH-WB63X20216
...
243
SUPPORT BASE RT GEH-WB63X20215
...
245
LEG LEVELER GEH-WB02K10182
...
252
DRAWER SLIDE ASSY LEFT GEH-WB39K10021
...
259
DRAWER SLIDE ASSY RIGHT GEH-WB39K10020
...
283
CLIP CABLE GEH-WB02K0031
...
300
DRAWER BODY & GUIDE- SLIDE DRAWER GEH-WB49X28972
...
312
CONTOURED WASHER GEH-WB01X0119
...
314
GLASS OVEN DOOR ASM GEH-WB56X30818
...
315
LINER ASM WELD DOOR GEH-WB56X30421
...
318
GASKET ASM DOOR GEH-WB35X29668
...
319
VENT TRIM GEH-WB07X30810
...
320
SPACER GEH-WB02K10156
...
331
INSULATION BOTTOM DOOR GEH-WB35K10150
...
332
INSULATION SIDE DOOR GEH-WB35K10149
...
333
INSULATION FRONT DOOR GEH-WB35X21579
...
334
INSULATION SIDE DOOR GEH-WB35X28971
...
338
CRYSTAL WINDOW GEH-WB56X23809
...
339
GUARD INSULATION GEH-WB56K0012
...
340
PANEL ASM WELD GEH-WB55X30422
...
344
BRACKET DRAWER GEH-WB02X24742
...
356
CLIP WINDOW GEH-WB02K0056
...
361
SCR 10-16 X 2 3/4 GEH-WB01K10078
...
362
BARRIER DOOR GEH-WB07X28885
...
365
HANDLE AND END CAP ASM GEH-WB15X31194
...
366
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
378
DEFLECTOR INNER DOOR GEH-WB34X28968
...
394
TRIM DOOR GEH-WB07X20358
...
399
PANEL BACKER GEH-WB56X20809
...
400
WINDOW SPACER ASM GEH-WB34K10087
...
457
PANEL DRAWER GEH-WB56X30202
...
832
SCREW GEH-WB1K21
...
1331
SCREW 10-32 TR T GEH-WB01T10008
...
1950
TRIM FRONT BOTTOM GEH-WB01K10072
...
2000
BADGE ASM GEH-WB02X29637

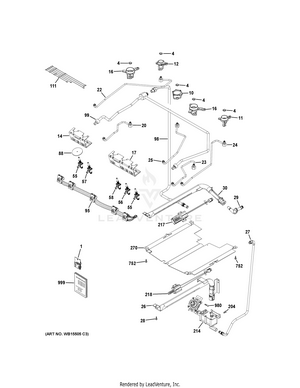

GAS & BURNER PARTS

...
...
1
KIT HIGH ALTITUDE ASM GEH-WB49X25441
...
1
KIT LP CONVERSION ASM GEH-WB28X28136
...
1
LABEL WIRE DIAGRAM GEH-295D2744P011
...
1
KIT HIGH ALTITUDE ASM GEH-WB49X25442
...
4
ECONOMIC NUT GEH-WB01K10037
...
10
CKT BRACKET SMALL GEH-WB02K10360
...
11
INJET, MEDIUM V2 GEH-WB02X24727
...
12
INJET, SMALL V2 GEH-WB02X24728
...
14
MANIFOLD PIPE ASM GEH-WB28X28204
...
16
INJET, XL V2 GEH-WB02X24725
...
17
MANIFOLD PIPE ASM GEH-WB28X28200
...
20
LF ORIFICE HOLDER GEH-WB28X28865
...
22
LR ORIFICE HOLDER GEH-WB28X28142
...
23
RF ORIFICE HOLDER GEH-WB28X28144
...
24
RR ORIFICE HOLDER GEH-WB28X28147
...
25
CTR ORIFICE HOLDER GEH-WB16X28686
...
26
BURNER BAKE GEH-WB16X28250
...
27
TUBE BURNER SUPPLY GEH-WB28X24773
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
29
ELBOW 90 ASM GEH-WB28X28697
...
30
BURNER BROIL GEH-WB16X28251
...
55
VALVE BURNER 270 GEH-WB21X20612
...
56
VALVE BURNER 270 GEH-WB21X20470
...
57
VALVE BURNER 270 GEH-WB21X25979
...
58
VALVE BURNER 270 GEH-WB21X20471
...
88
SEAL VALVE GEH-WB35X21708
...
95
HARNESS SWITCHES GEH-WB18X28762
...
98
TUBE BURNER BOX SUPPLY GEH-WB28X28151
...
99
TUBE MANIFOLD SUPPLY GEH-WB28X28158
...
111
ELECTRODES & HARNESS H. V. GEH-WB18X28729
...
204
SCREW (BLK) GEH-WB01K0042
...
214
VALVE CONTROL ASM NOR. D GEH-WB21X28820
...
217
IGNITER GLOWBAR GEH-WB13X24755
...
218
IGNITER GLOWBAR GEH-WB13X25500
...
270
DEFLECTOR GEH-WB34X28689
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
980
SCREW GEH-WB01K0033
...
999
PM GAS QUICK GUIDE GEH-49-85224
...
999
PM INSTALL INSTRUCTIONS GEH-31-10781
...
999
PM INSTALL INSTRUCTIONS GEH-31-11060
...
999
PM INSTALL INSTRUCTIONS GEH-31-11084
...
999
PM MANUAL MINI & WD ASM GEH-31-17254
...
...
...
