product name

GE JGS650DEF3WW Gas Range

Model: JGS650DEF3WW

Save
 Part Not Listed?Part Not Listed?
product name

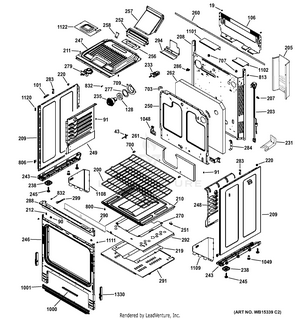

BODY PARTS

...
...
19
SCREW THERMOSTAT GEH-WB01K0008
...
43
SENSOR ASM. GEH-WB24X5340
...
90
BUMPER DOOR GEH-WB02K10330
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
101
SUPPORT COOK TOP REAR GEH-WB02X20735
...
106
COVER BACK GEH-WB34X20846
...
128
LAMP INSULATION GEH-WB02K10349
...
200
OVEN RACK GEH-WB48X20249
...
203
LINE CORD GEH-WB18K10081
...
205
COVER MOTOR GEH-WB34K10097
...
207
CLAMP CABLE GEH-WB02K0036
...
208
RANGE BACK GEH-WB63X20841
...
209
PANEL SIDE GEH-WB56X22020
...
210
BOTTOM OVEN ASM GEH-WB35K10220
...
211
BOTTOM OVEN SCREW GEH-WB01K0005
...
212
SPEEDNUT GEH-WB01K0002
...
219
DEFLECTOR OVEN GEH-WB49K10037
...
220
GROMMET GEH-WB02K0008
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
233
PLUNGER SWITCH DUAL GEH-WB24X20445
...
235
OVEN LAMP HOLDER ASM GEH-WB08T10002
...
238
SPACER BASE FRONT GEH-WB16X20448
...
243
SUPPORT BASE RT GEH-WB63X20741
...
243
SUPPORT BASE LT GEH-WB63X20740
...
245
LEG LEVELING GEH-WB02X20759
...
246
FRAME WELD ASM GEH-WB63X20732
...
247
OVEN TOP GEH-WB63X20437
...
248
OVEN SIDE GEH-WB53K10052
...
249
OVEN SIDE GEH-WB53K10053
...
250
OVEN BACK GEH-WB63X20720
...
251
CLAMP-HEAT ELEMENT GEH-WB02K10023
...
252
VENT COMPLEMENT ASM GEH-WB34X20742
...
257
VENT ASSEMBLY GEH-WB34X20730
...
258
BRACE VENT GEH-WB34X20456
...
260
GASKET OVEN SEAL LG GEH-WB32K0002
...
261
INSULATION OVEN WRAPINSU GEH-WB35X20844
...
261
INSULATION OVEN WRAP GEH-WB35X20843
...
262
INSULATION OVEN BACK GEH-WB35X20370
...
270
DEFLECTOR GEH-WB49K10025
...
277
GASKET OVEN LIGHT GEH-WB32K10044
...
279
LATCH AUTOMATIC GEH-WB10X20842
...
283
CLIP CABLE GEH-WB02K0031
...
284
BOTTOM OVEN BRACKT SUPPO GEH-WB02K0032
...
286
CLIP WIRE GEH-WB02K10068
...
288
BRACE BOTTOM GEH-WB63K0015
...
290
SHIELD RADIATION GEH-WB34K0012
...
291
GUARD BOTTOM GEH-WB63K0016
...
292
BOTTOM INNER GUARD GEH-WB63K10187
...
294
COVER TERMINALS GEH-WB63K10054
...
299
CLIP WIRE GEH-WB02K0038
...
700
RETAINER-INSULATION VENT GEH-WB02K0030
...
703
BRACKET OVEN CORNER GEH-WB02K0041
...
707
CLIP WIRE GEH-WB02K10267
...
709
COVER LAMP GEH-WB08K10018
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
806
BUMPER GEH-WB02X21702
...
813
SCREW GROUND GEH-WB01X1261
...
832
SCREW GEH-WB1K21
...
1000
GASKET FRAME FRONT GEH-WB35X20734
...
1001
TRIM FRONT FRAME GEH-WB34X24779
...
1048
BRACKET CONNECTOR GEH-WB02X21694
...
1101
SPILL DEFLECTOR GEH-WB34X21697
...
1102
SPILL DEFLECTOR GEH-WB34X21696
...
1108
COVER SIDE DUCT GEH-WB34X21700
...
1109
COVER SIDE DUCT GEH-WB34X21701
...
1111
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
1120
BUMPER GEH-WB02K10179
...
1122
COVER LATCH GEH-WB34X21710
...
1330
RECEIVER HINGE GEH-WB10K10029

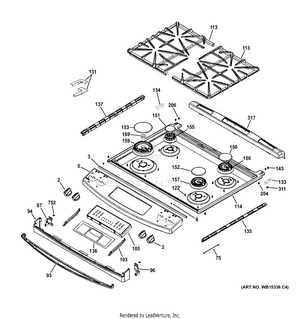

CONTROL PANEL & COOKTOP

...
...
2
KNOB ASM (2.0-HVY-WH) GEH-WB03X26101
...
3
SEAL-COOKTOP BLACK TO WT GEH-WB04K10010
...
5
PANEL MANIFOLD UPPER GEH-WB36X20592
...
8
SCREW 8-32 GEH-WB01K10002
...
75
HARNESS GROUND GEH-WB18K10083
...
93
PANEL MANIFOLD CMPLM GEH-WB36X20604
...
94
PANEL MANIFOLD BASE GEH-WB36X20600
...
96
BRACKET PANEL MANIFOLD GEH-WB02X20830
...
97
BRACKET PANEL MANIFOLD GEH-WB02X20831
...
103
BRACKET CONTROL MEMB GEH-WB02X20739
...
105
CONTROL BOARD T012 ELE GEH-WB27X25334
...
113
GRATE CAST GEH-WB31X20837
...
114
RANGE TOP GEH-WB62X20582
...
122
CKT SCREW GEH-WB01X24460
...
131
CORNER TRIM KIT GEH-WB49X23223
...
133
END SIDE RAIL SNOW WHITE GEH-WB07X21999
...
134
END SIDE RAIL SNOW WHITE GEH-WB07X21998
...
135
SPACER COMPLEMENT WH GEH-WB07X21986
...
136
OVERLAY T012 GEH-WB07X20575
...
137
SPACER COMPLEMENT WH GEH-WB07X21987
...
143
SCREW GEH-WB01X5754
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM BURNER CAP (5000) GEH-WB29K10022
...
152
ASM BURNER CAP (12000) GEH-WB29K10024
...
153
CAP BURNER ASM (15K) GEH-WB28K10222
...
155
SMALL BURNER V 5K GEH-WB16K10070
...
156
BURNER MEDIUM (9500) GEH-WB16K10055
...
157
BURNER 12K GEH-WB16T10046
...
159
VISION BURNER XL GEH-WB16K10062
...
169
VENTURI 15K LP GEH-WB16K10085
...
204
SCREW (BLK) GEH-WB01K0042
...
204
SCREW GEH-WB01K0084
...
206
SCREW GEH-WB01K0001
...
206
SCREW GEH-WB01K10091
...
311
BUMPER, BLACK GEH-WB02K0015
...
317
VENT TRIM GEH-WB34X21177
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345

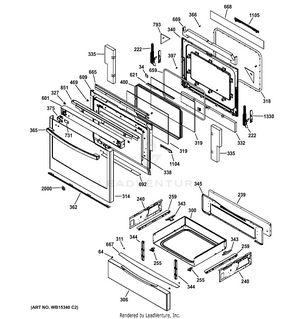

DOOR & DRAWER PARTS

...
...
34
BRACKET GLASS GEH-WB02K10350
...
64
SCREW M4X8 GEH-WB01X1189
...
222
HINGE DOOR RT GEH-WB10X21056
...
222
HINGE DOOR LT GEH-WB10X21054
...
239
PANEL REAR BROIL GEH-WB63K10120
...
240
PANEL SIDE BROIL LFT GEH-WB63K0003
...
240
PANEL SIDE BROIL RT GEH-WB63K0002
...
255
DRAWER SUPPORT GEH-WB02K10163
...
259
RAIL DRAWER GEH-WB39K0016
...
300
DRAWER BODY GEH-WB63X20839
...
306
PANEL DRAWER GEH-WB56X20397
...
311
BUMPER, BLACK GEH-WB02K0015
...
314
GLASS & PANEL DOOR ASM GEH-WB56X21176
...
318
GASKET OVEN ASM GEH-WB32K10052
...
319
CRYSTAL WINDOW GEH-WB57K10174
...
327
SPEEDNUT GEH-WB01K10093
...
332
INSULATION GEH-WB35K10221
...
335
INSULATION GEH-WB35K10222
...
338
CRYSTAL WINDOW GEH-WB56X23809
...
340
LINER DOOR WELD ASSEMBLY GEH-WB56X24760
...
343
GLIDER DRAWER GEH-WB02K0068
...
344
BRACKET MOUNTING DRAWER GEH-WB39K0020
...
345
LINER DRAWER GEH-WB63X20840
...
362
BARRIER DOOR GEH-WB07X20288
...
365
HANDLE (WH) GEH-WB15X21772
...
366
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
375
BRACKET HANDLE GEH-WB02X20520
...
397
SCREW MTG END CAP (WH) GEH-WB01K0066
...
400
FRAME WINDOW PACK ASM GEH-WB34K10141
...
469
SCR 10-16 AB TRW20 1/2 GEH-WB01K10116
...
601
COVER TOP GEH-WB34X21703
...
609
DOOR GUARD GEH-WB34X21683
...
621
SUPPORT LOWER CRYSTAL GEH-WB02X21684
...
659
CORD FIBER GLASS GEH-WB35X21685
...
665
DOOR STIFFENER GEH-WB34X21570
...
667
INSULATION DOOR GEH-WB35X21686
...
668
FOIL TRIM DOOR GEH-WB35X21687
...
669
INSULATION DOOR GEH-WB35X21688
...
692
LOWER DEFLECTOR GEH-WB34X21689
...
731
SUPPORT HANDLE GEH-WB02X21690
...
793
INSULATION DOOR GEH-WB35X21691
...
851
UPPER DEFLECTOR GEH-WB34X21693
...
1104
DIVERTER ASM GEH-WB34X21698
...
1105
DIVERTER ASM GEH-WB34X21699
...
1330
RECEIVER HINGE GEH-WB10K10029
...
2000
GE BADGE GRAY GEH-WB02T10589X

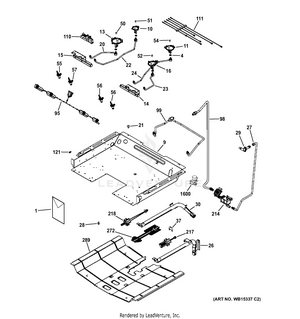

GAS & BURNER PARTS

...
...
1
PM INSTALL INSTRUCTIONS GEH-31-10894
...
1
PM GAS QUICK GUIDE GEH-49-85228
...
1
LP CONVERSION INST GEH-31-10912
...
1
PM MINI MANUAL GEH-31-17074
...
1
KIT HIGH ALTITUDE ASM GEH-WB28X20697
...
1
CLEANER-SS GEH-WB02T10111
...
1
KIT CONVERSION LP GEH-WB28X20753
...
4
ECONOMIC NUT GEH-WB01K10037
...
9
DUCT AND BURNER BOX ASM GEH-WB63X20737
...
10
CKT BRACKET SMALL GEH-WB02K10360
...
11
CKT BRACKET MDM & LGE GEH-WB02K10361
...
13
CKT BRACKET MDM & LGE GEH-WB02K10362
...
14
MANIFOLD PIPE ASM GEH-WB28X20611
...
15
MANIFOLD PIPE ASM GEH-WB28X20610
...
16
BRACKET COOKTOP XL GEH-WB02K10363
...
20
FL ORIFICE HOLDER GEH-WB28X20835
...
21
SCR 8 HD 1/4 - 20 GEH-WB01K10067
...
22
RL ORIFICE HOLDER GEH-WB28X20836
...
23
FR ORIFICE HOLDER GEH-WB28X20832
...
24
RR ORIFICE HOLDER GEH-WB28X20834
...
26
BURNER BAKE GEH-WB16K10081
...
27
TUBE BURNER SUPPLY GEH-WB28X24773
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
29
ELBOW 90 ASM GEH-WB28X20389
...
30
BURNER BROIL GEH-WB16X20418
...
37
COVER IGNITOR GEH-WB34X24753
...
50
ORIFICE SPUD (VISION) GEH-WB28K10861
...
51
ORIFICE SPUD GEH-WB28K10834
...
52
ORIFICE SPUD LP 88L GEH-WB28K10214
...
54
ORIFICE-LP 89MM GEH-WB28K10023
...
55
VALVE BURNER 270 GEH-WB21X20469
...
56
VALVE BURNER 270 GEH-WB21X20470
...
57
VALVE BURNER 270 GEH-WB21X20612
...
95
HARNESS SWITCH DUAL GEH-WB18X20833
...
98
TUBE BURNER BOX SUPPLY 7 GEH-WB28X20594
...
99
TUBE MANIFOLD SUPPLY GEH-WB28X20586
...
110
SPARK MODULE 4+0 GEH-WB13K10029
...
111
HARNESS H. V. GEH-WB18X24361
...
121
SCREW 12-14, 5/8S GEH-WB01K0078
...
214
VALVE CONTROL ASM NOR. D GEH-WB19K10079
...
217
IGNITER GLOWBAR GEH-WB13X25261
...
218
IGNITER GLOWBAR GEH-WB13K10026
...
272
SHIELD BROIL GEH-WB34X20303
...
289
LOWER HEAT SHIELD GEH-WB34K10086
...
1600
VALVE LOCKOUT GEH-WB19K10059
...
...
...
