product name

GE JGP940TEK6WW Gas Range

Model: JGP940TEK6WW

Save
 Part Not Listed?Part Not Listed?
product name

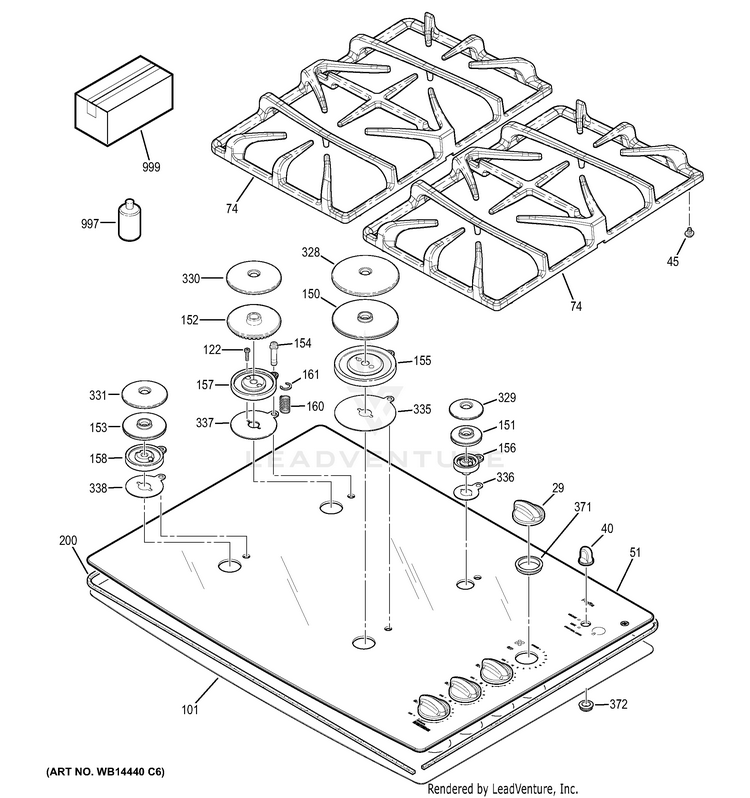

CONTROL PANEL & COOKTOP

...
...
29
KNOB GAS VLV (PRF) GEH-WB03T10238
...
40
KNOB SEL (WH GEH-WB03T10034
...
45
GRATE FOOT GEH-WB02T10461
...
51
GLASS MAINTOP 30 (WH) GEH-WB62X25707
...
74
GRATE ASM GEH-WB31T10084
...
101
INSULATION GEH-WB35T10189
...
122
SCREW 6-32 MCH FHT15 984 GEH-WB01T10049
...
150
HEAD BURNER D GEH-WB16T10037
...
151
HEAD BURNER H GEH-WB16T10034
...
152
HEAD BURNER C GEH-WB16T10036
...
153
HEAD BURNER B GEH-WB16T10035
...
154
IGNITER GEH-WB13T10073
...
155
BASE BURNER RT FRT GEH-WB16T10032
...
156
BURNER BASE SMALL GEH-WB16T10031
...
157
BASE BURNER LARGE GEH-WB16T10033
...
158
BASE BURNER MED GEH-WB16T10030
...
160
SPRING GEH-WB09T10010
...
161
CLIP RING GEH-WB02T10304
...
200
FOAM STRIP GEH-WB06K5042
...
328
CAP BURNER D (BK) GEH-WB13T10063
...
329
CAP BURNER H (BK) GEH-WB13T10060
...
330
CAP BURNER C (BK) GEH-WB13T10062
...
331
CAP BURNER B (BK) GEH-WB13T10061
...
335
BURNER GASKET D GEH-WB04T10014
...
336
BURNER GASKET RTR CENT GEH-WB16T10011
...
337
BURNER GASKET LT RR GEH-WB04T10012
...
338
BURNER GASKET LT RR GEH-WB04T10011
...
371
CONTROL SEAL GEH-WB04T10017
...
372
SEAL CONTROL (WH) GEH-WB04T10046
...
997
GLASS CLEANER GEH-WB64X0093
...
999
KIT, CONVERSION (BUTANE) GEH-WB28T10228
...
999
MANUAL MINI & WD ASM GEH-31-14249
...
999
PM OWNERS MANUAL GEH-49-80660
...
999
INSTRUCTION INSTALL GEH-31-10714
...
999
PM INSTALL INSTRUCTIONS GEH-31-10833
...
999
PM INSTALL INSTRUCTIONS GEH-31-10860

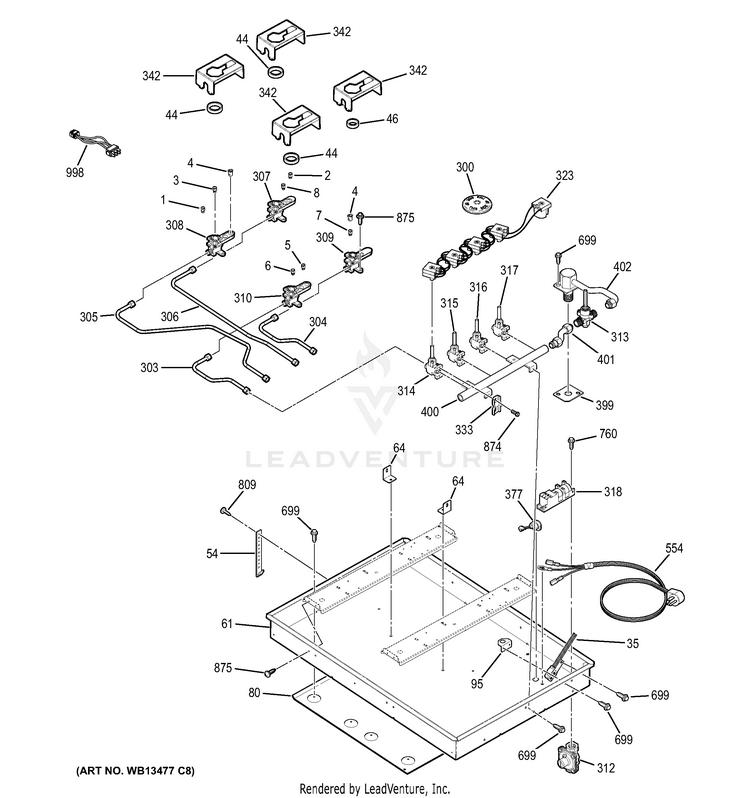

GAS & BURNER PARTS

...
...
1
MANUAL MINI GEH-229C4059P486
...
1
ORIFICE SPUD LT FRT GEH-WB28T10014
...
2
LABEL WIRE DIAG GEH-229C5406P001
...
2
ORIFICE SPUD LP LR GEH-WB28T10151
...
3
ORIFICE SPUD ASSY-LP GEH-WB28T10017
...
4
ECONOMIC NUT GEH-WB01K10037
...
5
ORIFICE SPUD RT FRT -LP GEH-WB28T10033
...
6
ORIFICE SPUD RT FR-NG GEH-WB28T10027
...
7
ORIFICE SPUD ASSY GEH-WB28T10028
...
8
ORIFICE SPUD ASSY-NAT GEH-WB28T10015
...
35
BUZZER (120V) GEH-WB08T10039
...
44
BURNER GROMMET-LGE GEH-WB02T10095
...
46
BURNER GROMMET-SM GEH-WB02T10096
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
61
BOTTOM BURN BOX GEH-WB64T10045
...
64
SUPPORT BRACKET GEH-WB02T10099
...
80
SHIELD BURN BOX BTM GEH-WB34T10102
...
95
BRACKET GEH-WB02T10254
...
300
SWITCH SPLASH GUARD GEH-WB02X21824
...
303
TUBE BURNER ASM GEH-WB28T10226
...
304
TUBE BURNER RR GEH-WB28T10150
...
305
TUBE BURNER GEH-WB28T10103
...
306
TUBE BURNER GEH-WB28T10102
...
307
BURNER INJET ASM GEH-WB28T10092
...
308
BURNER INJET LR GEH-WB28T10208
...
309
BURNER INJET LT FRT GEH-WB28T10029
...
310
BURNER INJET RF GEH-WB28T10210
...
312
REGULATOR CONVERT PRESS GEH-WB19T10078
...
313
VALVE LOCKOUT GEH-WB19T10039
...
314
VALVE GAS RR GEH-WB19T10035
...
315
VALVE GAS LF GEH-WB19T10036
...
316
VALVE GAS LR GEH-WB19T10037
...
317
VALVE GAS RF GEH-WB19T10038
...
318
MODULE SPARK (4+0) GEH-WB13T10046
...
323
HARNESS SWITCH ASM GEH-WB18X25924
...
333
VALVE CLAMP GEH-WB02X22720
...
342
MAINTOP SUPPORT GEH-WB02T10102
...
377
STRAIN RELIEF-RT ANGLE GEH-WB02K5275
...
399
SEAL MANIFOLD GEH-WB04T10043
...
400
PIPE MANIFOLD GEH-WB28T10106
...
401
TUBE (7/16) GEH-WB28T10104
...
402
TUBE (7/16) GEH-WB28T10105
...
554
CORD RANGE GEH-WB18X24410
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
760
SCREW GEH-WB01K5028
...
809
SCR 6-20 B HXW 1/4 S GEH-WZ04X0217
...
874
SCREW GEH-WB01X1428
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
998
HARNESS WIRE BURNER GEH-WB18X25695
...
...
...
