product name

GE JGP5030SL1SS Gas Range Or Dual Fuel

Model: JGP5030SL1SS

Save
 Part Not Listed?Part Not Listed?
product name

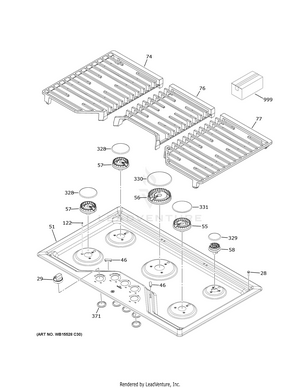

CONTROL PANEL & COOKTOP

...
...
28
BUMPER GEH-WB02X24790
...
29
KNOB ASM SS GEH-WB03X29315
...
46
BRIDGE BUMPER GEH-WB02X30761
...
51
MAINTOP ASM 30" SS GEH-WB62X29418
...
55
BURNER, LARGE V2 GEH-WB16X24723
...
56
BURNER, XL V2 GEH-WB16X24722
...
57
BURNER, MEDIUM V2 GEH-WB16X24724
...
58
BURNER, SMALL V2 GEH-WB16X24721
...
74
GRATE LH GEH-WB31X29416
...
76
GRATE CTR GEH-WB31X29415
...
77
GRATE RH GEH-WB31X29417
...
122
SCREW 6-32 OVT15 1/2 S GEH-WB01X30054
...
328
ASM BURNER CAP (9500) GEH-WB29K10023
...
329
ASM. CAP, BURNER SMALL V2 GEH-WB16X28654
...
330
CAP BURNER ASM (15K) GEH-WB28K10222
...
331
ASM BURNER CAP (12000) GEH-WB29K10024
...
371
SEAL CNTL (BLK) GEH-WB04T10042
...
999
PM INSTALL INSTRUCTIONS GEH-31-2001090
...
999
PM MINI MANUAL AND WIRING GEH-31-2001109
...
999
PM INSTALL INSTRUCTIONS GEH-31-2001101
...
999
PM OWNERS MANUAL GEH-49-2001091

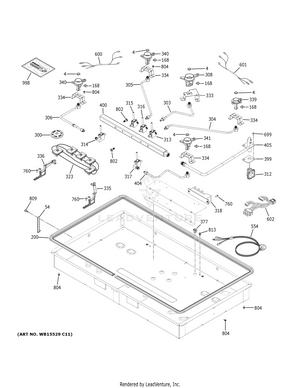

GAS & BURNER PARTS

...
...
4
ECONOMIC NUT GEH-WB01K10037
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
54
HOLD DOWN BRACKET GEH-WB2K5328
...
168
CLIP, IGNITER V2 GEH-WB02X24976
...
200
BURNER BOX GASKET GEH-WB35X29398
...
300
SWITCH SPLASH GUARD GEH-WB02X21824
...
303
GAS TUBE ASM MAIN CTR GEH-WB28X29419
...
304
GAS TUBE ASM RR GEH-WB28X29423
...
305
GAS TUBE ASM LR GEH-WB28X29421
...
306
GAS TUBE ASM LF GEH-WB28X29420
...
308
INJET, XL V2 GEH-WB02X24725
...
312
REGULATOR CONVERT PRESS GEH-WB19T10089
...
313
GAS VALVE RR GEH-WB21X29318
...
314
GAS VALVE LF GEH-WB21X29321
...
315
GAS VALVE LR GEH-WB21X29319
...
316
GAS VALVE CTR GEH-WB21X29320
...
317
GAS VALVE RF GEH-WB21X29425
...
318
SPARK MODULE (0+6) GEH-WB13T10047
...
323
HARNESS SWITCH ASM GEH-WB18X29314
...
333
MOUNTING BRACKET GEH-WB34X29323
...
334
MOUNTING BRACKET GEH-WB34X29316
...
335
MANIFOLD BRACKET RH GEH-WB34X29311
...
336
MANIFOLD BRACKET LH GEH-WB34X29312
...
339
INJET, SMALL V2 GEH-WB02X24728
...
340
INJET, MEDIUM V2 GEH-WB02X24727
...
341
INJET, LARGE V2 GEH-WB02X24726
...
377
STRAIN RELIEF-RT ANGLE GEH-WB02K5275
...
399
SEAL MANIFOLD GEH-WB04T10084
...
400
MANIFOLD TUBE AND CLAMP ASM GEH-WB28X29324
...
404
GAS TUBE ASM RF GEH-WB28X29422
...
405
INLET GAS TUBE ASM GEH-WB28X29424
...
554
CORD RANGE GEH-WB18X25912
...
600
IGNITERS AND HARNESS ASM LT GEH-WB13X29295
...
601
IGNITERS AND HARNESS ASM RT GEH-WB13X29294
...
602
HARNESS WIRE POWER GEH-WB18X29330
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
760
SCREW GEH-WB01K5028
...
802
SCREW 1/4-20 HXW GKT 3/4 GEH-WB01X30011
...
804
SCR 8-18 GEH-WB01X24092
...
809
SCREW GEH-WB01X1137
...
813
SCR 10-32 GX HXW 7/16 S GEH-WS02X10087
...
998
NG HIGH ALTITUDE CONVERSION KIT GEH-WB28X29862
...
998
LP HIGH ALTITUDE CONVERSION KIT GEH-WB28X29861
...
998
LP CONVERSION KIT GEH-WB28X29971
...
...
...
