GE JGP3530DL1BB Gas Range Or Dual Fuel

Model: JGP3530DL1BB

Save
 Part Not Listed?Part Not Listed?
product name

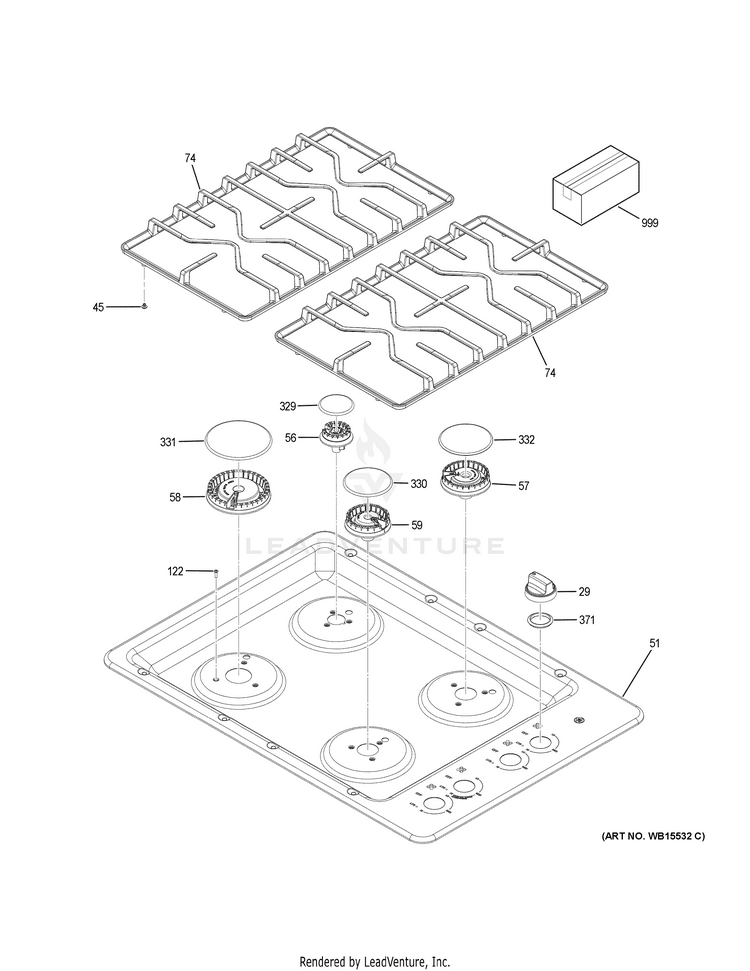

CONTROL PANEL & COOKTOP

...
...
29
KNOB ASM BK GEH-WB03X29304
...
45
GRATE FOOT GEH-WB02T10461
...
51
MAINTOP ASM 30" BK GEH-WB62X29412
...
56
BURNER, SMALL V2 GEH-WB16X24721
...
57
BURNER, LARGE V2 GEH-WB16X24723
...
58
BURNER, XL V2 GEH-WB16X24722
...
59
BURNER, MEDIUM V2 GEH-WB16X24724
...
74
GRATE ASM LGE GEH-WB31X29298
...
122
SCREW 6-32 OVT15 1/2 S GEH-WB01X30054
...
329
ASM. CAP, BURNER SMALL V2 GEH-WB16X28654
...
330
ASM BURNER CAP (9500) GEH-WB29K10023
...
331
CAP BURNER ASM (15K) GEH-WB28K10222
...
332
ASM BURNER CAP (12000) GEH-WB29K10024
...
371
SEAL CNTL (BLK) GEH-WB04T10042
...
999
PM INSTALL INSTRUCTIONS GEH-31-2001092
...
999
PM MINI MANUAL AND WIRING GEH-31-2001093
...
999
PM OWNERS MANUAL GEH-49-2001091
...
999
PM INSTALL INSTRUCTIONS GEH-31-2001090

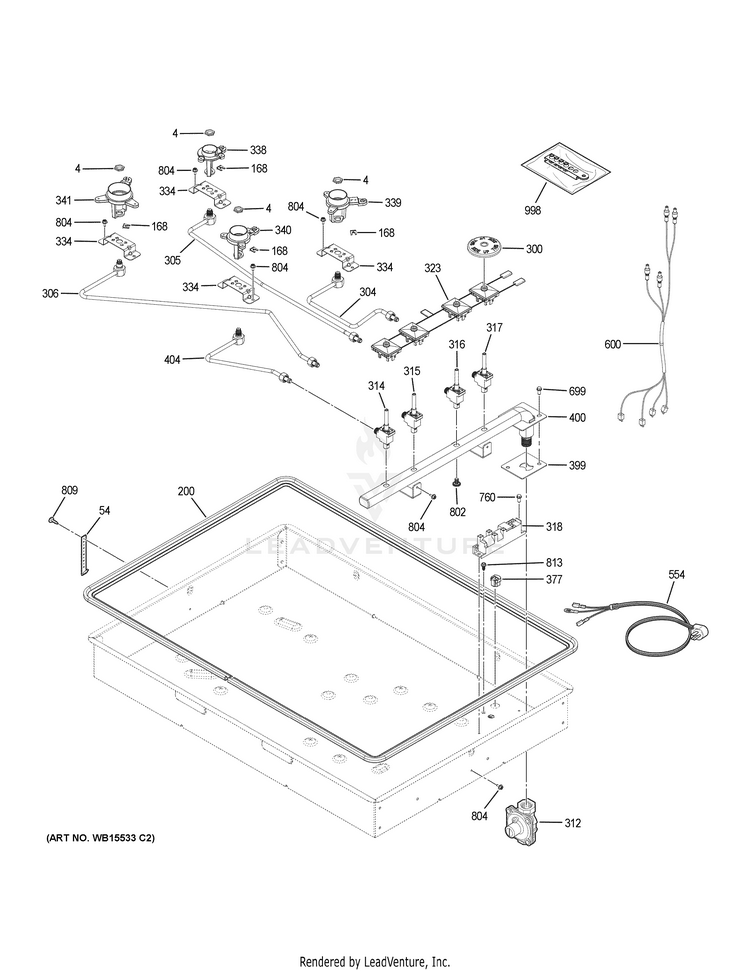

GAS & BURNER PARTS

...
...
4
ECONOMIC NUT GEH-WB01K10037
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
168
CLIP, IGNITER V2 GEH-WB02X24976
...
200
BURNER BOX GASKET GEH-WB35X29398
...
300
SWITCH SPLASH GUARD GEH-WB02X21824
...
304
GAS TUBE ASM RR GEH-WB28X29407
...
305
GAS TUBE ASM LR GEH-WB28X29405
...
306
GAS TUBE ASM LF GEH-WB28X29414
...
312
REGULATOR CONVERT PRESS GEH-WB19T10089
...
314
GAS VALVE ASM GEH-WB21X29408
...
315
GAS VALVE ASM GEH-WB21X29409
...
316
GAS VALVE ASM GEH-WB21X29411
...
317
GAS VALVE ASM GEH-WB21X29410
...
318
MODULE SPARK (4+0) GEH-WB13T10046
...
323
HARNESS SWITCH ASM GEH-WB18X29399
...
334
MOUNTING BRACKET GEH-WB34X29282
...
338
INJET, SMALL V2 GEH-WB02X24728
...
339
INJET, LARGE V2 GEH-WB02X24726
...
340
INJET, MEDIUM V2 GEH-WB02X24727
...
341
INJET, XL V2 GEH-WB02X24725
...
377
STRAIN RELIEF-RT ANGLE GEH-WB02K5275
...
399
MANIFOLD SEAL GEH-WB35X29403
...
400
MANIFOLD TUBE ASM GEH-WB28X29402
...
404
GAS TUBE ASM RF GEH-WB28X29406
...
554
CORD RANGE GEH-WB18X25912
...
600
IGNITERS AND HARNESS ASM GEH-WB18X29400
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
760
SCREW GEH-WB01K5028
...
802
SCR 8 HD 1/4 - 20 GEH-WB01K10067
...
804
SCR 8-18 GEH-WB01X24092
...
809
SCREW GEH-WB01X1137
...
813
SCR 10-32 GX HXW 7/16 S GEH-WS02X10087
...
998
LP HIGH ALTITUDE CONVERSION KIT GEH-WB28X29861
...
998
NG HIGH ALTITUDE CONVERSION KIT GEH-WB28X29862
...
998
LP CONVERSION KIT GEH-WB28X29969
...
...
...
