product name

GE JGP3036DL1WW Gas Range Or Dual Fuel

Model: JGP3036DL1WW

Save
 Part Not Listed?Part Not Listed?
product name

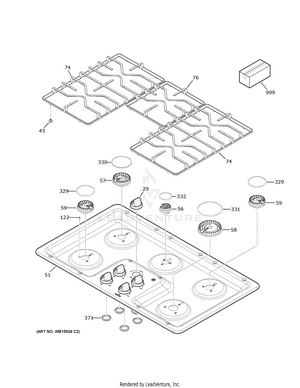

CONTROL PANEL & COOKTOP

...
...
29
KNOB ASM WH GEH-WB03X29306
...
45
GRATE FOOT GEH-WB02T10461
...
51
MAINTOP ASM 36" WH GEH-WB62X29307
...
56
BURNER, SMALL V2 GEH-WB16X24721
...
57
BURNER, LARGE V2 GEH-WB16X24723
...
58
BURNER, XL V2 GEH-WB16X24722
...
59
BURNER, MEDIUM V2 GEH-WB16X24724
...
74
GRATE ASM LGE GEH-WB31X29298
...
76
GRATE ASM SML GEH-WB31X29299
...
122
SCREW 6-32 OVT15 1/2 S GEH-WB01X30054
...
329
ASM BURNER CAP (9500) GEH-WB29K10023
...
330
ASM BURNER CAP (12000) GEH-WB29K10024
...
331
CAP BURNER ASM (15K) GEH-WB28K10222
...
332
ASM. CAP, BURNER SMALL V2 GEH-WB16X28654
...
371
SEAL CNTL (WHT) GEH-WB04T10040
...
999
PM INSTALL INSTRUCTIONS GEH-31-2001090
...
999
PM OWNERS MANUAL GEH-49-2001091
...
999
PM MINI MANUAL AND WIRING GEH-31-2001108
...
999
PM INSTALL INSTRUCTIONS GEH-31-2001102

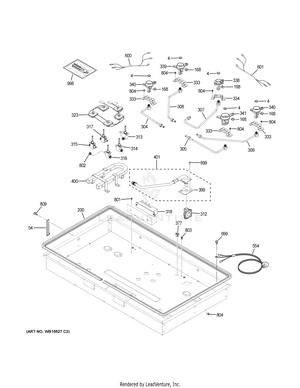

GAS & BURNER PARTS

...
...
4
ECONOMIC NUT GEH-WB01K10037
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
168
CLIP, IGNITER V2 GEH-WB02X24976
...
200
BURNER BOX GASKET GEH-WB35X29395
...
304
GAS TUBE ASM MAIN LF GEH-WB28X29285
...
305
GAS TUBE ASM MAIN RF GEH-WB28X29284
...
306
GAS TUBE ASM MAIN RR GEH-WB28X29286
...
307
GAS TUBE ASM MAIN CTR GEH-WB28X30163
...
308
GAS TUBE ASM MAIN LR GEH-WB28X29287
...
312
REGULATOR CONVERT PRESS GEH-WB19T10089
...
313
GAS VALVE GEH-WB21X29296
...
314
GAS VALVE GEH-WB21X29291
...
315
GAS VALVE GEH-WB21X29290
...
316
GAS VALVE GEH-WB21X29292
...
317
GAS VALVE GEH-WB21X29289
...
318
SPARK MODULE (0+6) GEH-WB13T10047
...
323
HARNESS AND SWITCH ASM GEH-WB18X31384
...
333
MOUNTING BRACKET GEH-WB34X29282
...
334
MOUNTING BRACKET GEH-WB34X29283
...
338
INJET, SMALL V2 GEH-WB02X24728
...
339
INJET, LARGE V2 GEH-WB02X24726
...
340
INJET, MEDIUM V2 GEH-WB02X24727
...
341
INJET, XL V2 GEH-WB02X24725
...
377
STRAIN RELIEF-RT ANGLE GEH-WB02K5275
...
399
MANIFOLD SEAL GEH-WB35X30709
...
400
MANIFOLD TUBE GEH-WB28X29293
...
401
INLET TUBE ASM KIT GEH-WB28X30708
...
554
CORD RANGE GEH-WB18X25912
...
600
IGNITERS AND HARNESS ASM LT GEH-WB13X29295
...
601
IGNITERS AND HARNESS ASM RT GEH-WB13X29294
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
801
SCREW GEH-WB01K5028
...
802
SCR 8 HD 1/4 - 20 GEH-WB01K10067
...
803
SCR 10-32 GX HXW 7/16 S GEH-WS02X10087
...
804
SCR 8-18 GEH-WB01X24092
...
809
SCREW GEH-WB01X1137
...
998
LP CONVERSION KIT GEH-WB28X29964
...
998
NG HIGH ALTITUDE CONVERSION KIT GEH-WB28X29862
...
998
LP HIGH ALTITUDE CONVERSION KIT GEH-WB28X29861
...
...
...
