GE JGBS66REK3SS Gas Range Or Dual Fuel

Model: JGBS66REK3SS

Save
 Part Not Listed?Part Not Listed?
product name

BODY PARTS

...
...
35
SPACER BASE FRONT GEH-WB16X20448
...
43
TEMPERATURE SENSOR GEH-WB20K10015
...
81
HOLDER RANGETOP GEH-WB02X24941
...
82
HOLDER RANGETOP GEH-WB02X24942
...
90
FRAME FRONT BUMPER GEH-WB02X28738
...
92
SCREW GROUND GEH-WB01X1261
...
134
BRACKET MANIFOLD SIDE GEH-WB02X24940
...
135
BRACKET MANIFOLD SIDE GEH-WB02X24939
...
200
OVEN RACK GEH-WB48X20249
...
203
LINE CORD GEH-WB18K10036
...
204
SCREW (BLK) GEH-WB01K0042
...
206
SCREW GEH-WB01K10091
...
207
CLAMP CABLE GEH-WB02K0036
...
208
RANGE BACK GEH-WB63X20207
...
209
PANEL SIDE BK GEH-WB56X29128
...
210
BOTTOM OVEN ASM GEH-WB63X20914
...
220
GROMMET GEH-WB02K0008
...
221
GROMMET GEH-WB02K10294
...
225
SHIELD VALVE GEH-WB34K0002
...
228
CLIP WIRE GEH-WB02X7066
...
229
HOUSING RECEPTACLE GEH-WB08K0001
...
230
RECEPTACLE PUSH-IN GEH-WB08T10026
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
232
HINGE GUARD RIGHT GEH-WB34K0003
...
232
HINGE GUARD LEFT GEH-WB34K0004
...
235
40A15 GEH-STD372401
...
238
SPACER BASE REAR GEH-WB16X20449
...
239
PANEL REAR BROIL GEH-WB63X26606
...
240
PANEL BROILER GEH-WB63X26890
...
241
BOTTOM RANGE GEH-WB63K10029
...
242
BRACE BOTTOM GEH-WB63X26259
...
243
SUPPORT BASE RT GEH-WB63X20215
...
243
SUPPORT BASE LT GEH-WB63X20216
...
245
LEG LEVELER GEH-WB02K10182
...
246
FRAME WELD ASM GEH-WB63X20251
...
247
OVEN TOP GEH-WB53K10015
...
248
OVEN SIDE RIGHT GEH-WB53K10034
...
249
OVEN SIDE LEFT GEH-WB53K10035
...
250
OVEN BACK GEH-WB63X20219
...
251
ANGLE SUPPORT GEH-WB02K0003
...
256
GASKET VENT GEH-WB32K0001
...
257
VENT ASSY GEH-WB38K10008
...
258
BRACE VENT GEH-WB38K0002
...
261
INSULATION OVEN WRAP GEH-WB35K10157
...
262
INSULATION OVEN BACK GEH-WB35K0016
...
281
DIVERTER SIDE GEH-WB56X26616
...
282
DIVERTER SIDE GEH-WB56X26617
...
283
CLIP CABLE GEH-WB02K0031
...
290
SHIELD RADIATION GEH-WB34K0012
...
299
BRACKET SUPPORT GEH-WB01K0043
...
420
COVER BACK GEH-WB34K0016
...
713
SUPPORT GEH-WB39K0033
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
788
COVER BACK GEH-WB34X21575
...
1330
RECEIVER HINGE GEH-WB10X20220
...
1331
SCREW MTG HINGE (TORX) GEH-WB01K0053

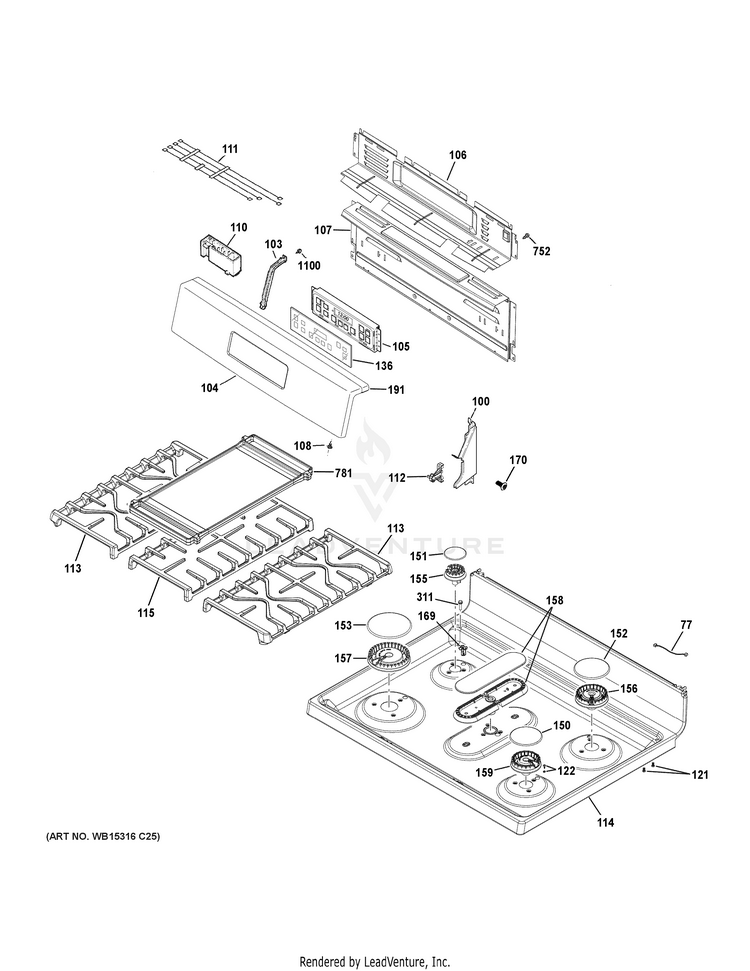

CONTROL PANEL & COOKTOP

...
...
77
HARNESS GROUND GEH-WB18X27594
...
100
END SUPPORT LF GEH-WB07X24732
...
100
END SUPPORT RT GEH-WB07X24733
...
103
BRACKET CONTROL GEH-WB02X24845
...
104
BACKGUARD RANGE GEH-WB36X25218
...
105
CONTROL OVEN TO9 GEH-WB27X29136
...
106
COVER BACK UPPER GEH-WB34X24851
...
107
COVER BACK LOWER GEH-WB34X24746
...
108
SCREW (BLK) GEH-WB01X5716
...
110
IGNITION MODULE GEH-WB13X24741
...
111
ELECTRODES & HARNESS H.V. GEH-WB18X31472
...
112
HINGE RANGE TOP GEH-WB14K10003
...
113
GRATE ASM GEH-WB31X24736
...
114
RANGETOP & BRKT ASM GEH-WB62X24778
...
115
CENTRAL GRATE GEH-WB31X24737
...
121
SCREW GEH-WB01K0001
...
122
CKT SCREW GEH-WB01X24735
...
136
OVERLAY T09 GEH-WB07X26702
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM. CAP, BURNER SMALL V GEH-WB29X24720
...
152
ASM BURNER CAP (12000) GEH-WB29K10024
...
153
CAP BURNER ASM (15K) GEH-WB28K10222
...
155
BURNER, SMALL V2 GEH-WB16X24721
...
156
BURNER, LARGE V2 GEH-WB16X24723
...
157
BURNER, XL V2 GEH-WB16X24722
...
158
OVAL BURNER ASM GEH-WB16K10076
...
159
BURNER, MEDIUM V2 GEH-WB16X24724
...
169
CLIP, IGNITER V2 GEH-WB02X24976
...
170
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
191
TOP COMPLEMENT BACKGUARD GEH-WB56X26681
...
311
BUMPER GEH-WB02X24790
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
781
GRIDDLE ALUMINUM GEH-WB31X24738
...
1100
SCREW 8-18 AB HXW 5/8 S GEH-WB01T10016

DOOR & DRAWER PARTS

...
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
109
SPEEDNUT GEH-WB01X5743
...
201
OVEN RACK GEH-WB48X26677
...
204
SCREW (BLK) GEH-WB01K0042
...
222
HINGE DOOR GEH-WB10X21809
...
301
HINGE DOOR GEH-WB10X26678
...
304
CLIP BROIL HANDLE GEH-WB01X26891
...
306
PANEL DRAWER GEH-WB56X27780
...
307
LINER DRAWER GEH-WB56X26676
...
308
HANDLE BROIL GEH-WB15X26672
...
312
CONTOURED WASHER GEH-WB01X0119
...
314
GLASS OVEN DOOR ASM GEH-WB56X26696
...
315
LINER ASM WELD DOOR GEH-WB56X20206
...
317
VENT TRIM GEH-WB07X26937
...
318
GASKET DOOR ASM GEH-WB35X29721
...
320
SPACER GEH-WB02K10156
...
331
INSULATION TOP DOOR GEH-WB35K10148
...
332
SIDE INSULATION DOOR GEH-WB35K10146
...
333
INSULATION FRONT DOOR GEH-WB35X21579
...
334
BOTTOM INSULATION DOOR GEH-WB35K10147
...
338
CRYSTAL WINDOW GEH-WB56X23809
...
339
GUARD INSULATION GEH-WB56K10033
...
341
RANGE SIDE INSULATION GEH-WB35X26709
...
342
PANEL SIDE FOIL GEH-WB35X26892
...
361
SCREW GEH-WB01K0035
...
362
BARRIER DOOR GEH-WB07X20288
...
365
HANDLE AND END CAP ASM GEH-WB15X26624
...
366
SCR 10-16 PL PNT 2.5 S GEH-WB01X23700
...
370
BUMPER DOOR GEH-WB02K10330
...
394
TRIM DOOR GEH-WB07X20354
...
399
PANEL BACKER GEH-WB56X20809

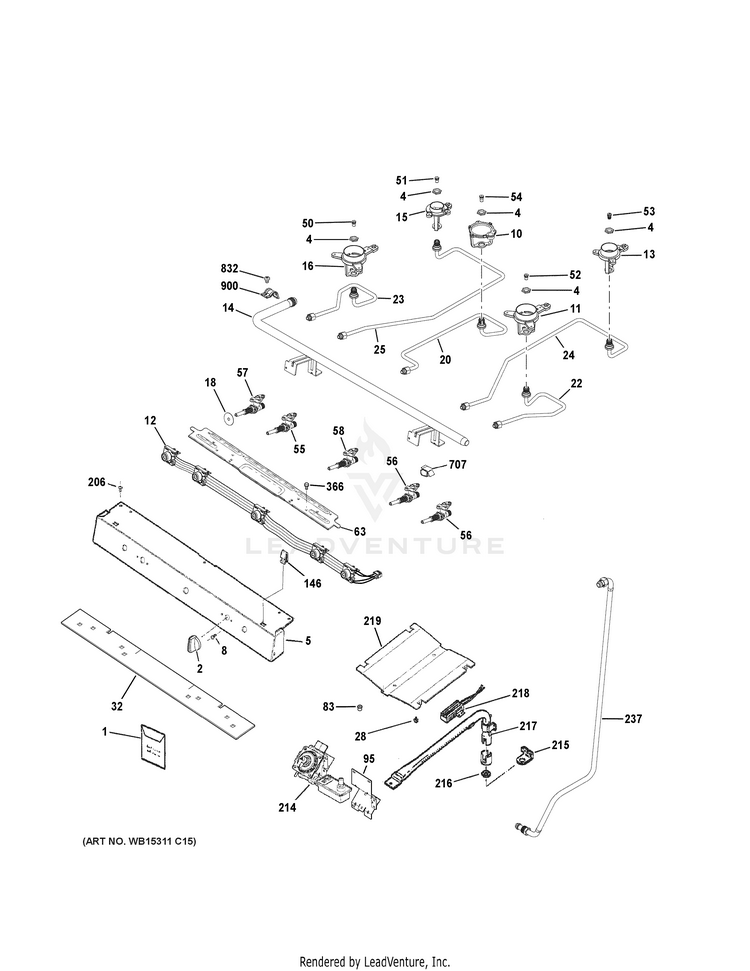

GAS & BURNER PARTS

...
...
1
PM MANUAL MINI & WD ASM GEH-31-17233
...
1
PM INSTALL INSTRUCTIONS GEH-31-10998
...
1
PM GAS QUICK GUIDE GEH-49-85224
...
1
PM INSTALL INSTRUCTIONS GEH-31-11028
...
1
KIT LP CONVERSION ASM GEH-WB49X26658
...
1
HINGE SERVICE KIT GEH-WB49X21392
...
2
KNOB ASM GEH-WB03X24818
...
4
ECONOMIC NUT GEH-WB01K10037
...
5
MANIFOLD PANEL GEH-WB36X24828
...
8
SCREW 8-32 GEH-WB01K10002
...
10
CKT BRACKET SMALL GEH-WB02K10360
...
11
INJET, MEDIUM V2 GEH-WB02X24727
...
12
HARNESS SWITCHES GEH-WB18X23202
...
13
INJET, LARGE V2 GEH-WB02X24726
...
14
MANIFOLD PIPE GEH-WB28X24765
...
15
INJET, SMALL V2 GEH-WB02X24728
...
16
INJET, XL V2 GEH-WB02X24725
...
18
COVER VALVE GEH-WB02K0024
...
20
ORIFICE HOLDER CENTRAL GEH-WB28X24762
...
22
ORIFICE HOLDER LR GEH-WB28X24766
...
23
ORIFICE HOLDER LF GEH-WB28X26621
...
24
ORIFICE HOLDER LF GEH-WB28X24764
...
25
ORIFICE HOLDER RR GEH-WB28X24763
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
32
INSULATION BURNER BOX GEH-WB35X24985
...
50
ORIFICE SPUD GEH-WB28X26625
...
51
ORIFICE SPUD GEH-WB28K10834
...
52
ORIFICE-LP 89MM GEH-WB28K10023
...
53
ORIFICE-LP LG 99MM GEH-WB28K10032
...
54
ORIFICE SPUD LP 86L GEH-WB28K10215
...
55
VALVE BURNER 270 GEH-WB21X20261
...
56
VALVE BURNER 270 GEH-WB21X20260
...
57
VALVE BURNER 270 GEH-WB21X20262
...
58
VALVE BURNER 270 GEH-WB21X20394
...
63
MANIFOLD SUPPORT GEH-WB02K10272
...
83
OVEN ORIFICE SPUD GEH-WB28X21079
...
95
BRACKET REGULATOR GEH-WB02X22890
...
146
CLIP RANGETOP GEH-WB02X26569
...
206
SCREW GEH-WB01K10091
...
214
VALVE CONTROL ASM NOR. S GEH-WB21X29148
...
215
BRACKET SAFETY VALVE GEH-WB02K0065
...
216
NUT LOCK GEH-WB01K0006
...
217
BURNER OVEN ASSY GEH-WB16X20253
...
218
IGNITER-OVEN BAKE GEH-WB13K0021
...
219
FLAME SPREADER GEH-WB49K0044
...
237
TUBE MANIFOLD SUPPLY GEH-WB28X24772
...
366
SCR 10-16 PL PNT 2.5 S GEH-WB01X23700
...
707
CLIP WIRE GEH-WB02K10267
...
832
SCREW THERMOSTAT GEH-WB01K10080
...
900
BRACKET VALVE GEH-WB02K10297
...
...
...
