GE JGBS60RLK2SS Gas Range Or Dual Fuel

Model: JGBS60RLK2SS

Save
 Part Not Listed?Part Not Listed?
product name

BODY PARTS

...
...
43
TEMPERATURE SENSOR GEH-WB20K10015
...
90
FRAME FRONT BUMPER GEH-WB02X28738
...
92
SCREW GROUND GEH-WB01X1261
...
200
OVEN RACK GEH-WB48X20249
...
203
LINE CORD GEH-WB18K10036
...
204
SCREW (BLK) GEH-WB01K0042
...
206
SCREW GEH-WB01K10091
...
207
BRACE VENT GEH-WB38K0002
...
208
RANGE BACK GEH-WB63X20207
...
209
PANEL SIDE BK GEH-WB56X29128
...
210
BOTTOM OVEN GEH-WB35K10035
...
220
GROMMET GEH-WB02K0008
...
221
GROMMET GEH-WB02K10294
...
225
SHIELD VALVE GEH-WB34K0002
...
228
CLIP WIRE GEH-WB02X7066
...
229
HOUSING RECEPTACLE GEH-WB08K0001
...
230
RECEPTACLE PUSH-IN GEH-WB08T10026
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
232
HINGE GUARD LEFT GEH-WB34K0004
...
232
HINGE GUARD RIGHT GEH-WB34K0003
...
234
GUIDE SUPPORT RGTP GEH-WB02K0066
...
235
40A15 GEH-STD372401
...
239
PANEL REAR BROIL GEH-WB63X26606
...
240
PANEL BROILER GEH-WB63X26890
...
241
BOTTOM RANGE GEH-WB63K10029
...
242
BRACE BOTTOM GEH-WB63X26259
...
243
SUPPORT BASE LT GEH-WB63X20216
...
243
SUPPORT BASE RT GEH-WB63X20215
...
245
LEG LEVELER GEH-WB02K10182
...
246
FRAME WELD ASM GEH-WB63X20251
...
247
OVEN TOP GEH-WB53K10002
...
248
OVEN SIDE RIGHT GEH-WB53K10034
...
249
OVEN SIDE LEFT GEH-WB53K10035
...
250
OVEN BACK GEH-WB63X20219
...
251
ANGLE SUPPORT GEH-WB02K0003
...
256
GASKET VENT GEH-WB32K0001
...
257
VENT ASM GEH-WB38K10001
...
258
CLAMP CABLE GEH-WB02K0036
...
261
INSULATION OVEN WRAP GEH-WB35K10157
...
262
INSULATION OVEN BACK GEH-WB35K0016
...
283
CLIP CABLE GEH-WB02K0031
...
290
SHIELD RADIATION GEH-WB34K0012
...
299
BRACKET SUPPORT GEH-WB01K0043
...
420
COVER BACK GEH-WB34K0016
...
707
CLIP WIRE GEH-WB02K10267
...
713
SUPPORT GEH-WB39K0033
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
788
COVER BACK GEH-WB34X21575
...
1330
RECEIVER HINGE GEH-WB10X20220
...
1331
SCREW MTG HINGE (TORX) GEH-WB01K0053

CONTROL PANEL & COOKTOP

...
...
100
END SUPPORT RT GEH-WB07X20194
...
100
END SUPPORT LT GEH-WB07X20197
...
101
BRACKET COOK TOP GEH-WB37X20193
...
101
BRACKET COOK TOP GEH-WB37X20196
...
103
BRACKET CONTROL GEH-WB02K10150
...
104
TRIM CONTROL GEH-WB36X26256
...
105
CONTROL OVEN TO9 GEH-WB27X29138
...
106
COVER BACK UPPER GEH-WB34X26858
...
107
COVER BACK LOWER GEH-WB34K10129
...
108
SCREW (BLK) GEH-WB01X5716
...
109
SPEEDNUT GEH-WB01X5743
...
110
IGNITION MODULE GEH-WB13X24323
...
111
ELECTRODES & HARNESS H.V GEH-WB18X26312
...
113
GRATE ASM HAIRPIN HV GEH-WB31X20643
...
114
RANGE TOP GEH-WB62X26321
...
115
SUPPORT COOKTOP GEH-WB02K10276
...
117
PIN LOCATOR REAER GEH-WB14K10004
...
119
PIN HINGE GEH-WB14K0005
...
120
SCREW WASHER ASM GEH-WB01K0045
...
121
SCREW GEH-WB01K0001
...
122
CKT SCREW GEH-WB01X24735
...
124
DOUBLE BLACK PORCELAIN P GEH-WB34K10010
...
125
PAN UNIT-RIGHT (BLACK) GEH-WB34K10009
...
136
OVERLAY T09 GEH-WB07X26700
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM. CAP, BURNER SMALL V GEH-WB29X24720
...
152
ASM BURNER CAP (12000) GEH-WB29K10024
...
155
BURNER, SMALL V2 GEH-WB16X24721
...
156
BURNER, MEDIUM V2 GEH-WB16X24724
...
157
BURNER, LARGE V2 GEH-WB16X24723
...
168
CLIP, IGNITER V2 GEH-WB02X24976
...
204
SCREW (BLK) GEH-WB01K0042

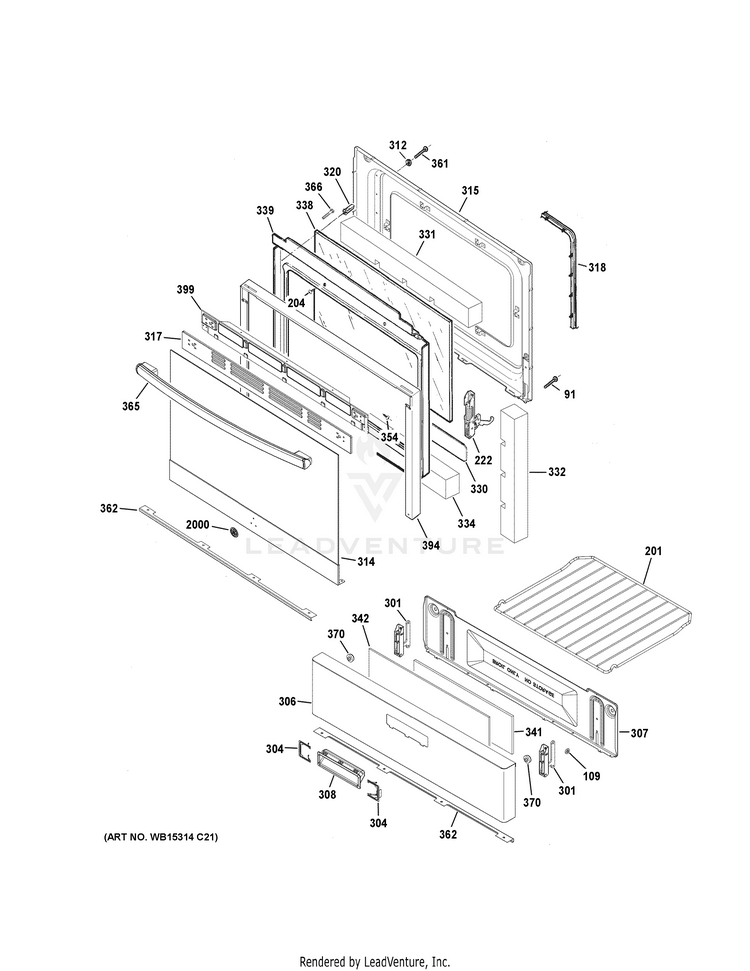

DOOR & DRAWER PARTS

...
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
109
SPEEDNUT GEH-WB01X5743
...
201
OVEN RACK GEH-WB48X26677
...
204
SCREW (BLK) GEH-WB01K0042
...
222
HINGE DOOR GEH-WB10X21809
...
301
HINGE DOOR GEH-WB10X26678
...
304
CLIP BROIL HANDLE GEH-WB01X26891
...
306
PANEL DRAWER GEH-WB56X27780
...
307
LINER DRAWER GEH-WB56X26888
...
308
HANDLE BROIL GEH-WB15X26671
...
312
CONTOURED WASHER GEH-WB01X0119
...
314
GLASS OVEN DOOR ASM GEH-WB56X26696
...
315
LINER ASM WELD DOOR GEH-WB56X20206
...
317
VENT TRIM GEH-WB07X26937
...
318
GASKET DOOR ASM GEH-WB35X29721
...
320
SPACER GEH-WB02K10156
...
330
INSULATION FRONT DOOR GEH-WB35X21579
...
331
INSULATION TOP DOOR GEH-WB35K10148
...
332
SIDE INSULATION DOOR GEH-WB35K10146
...
334
BOTTOM INSULATION DOOR GEH-WB35K10147
...
338
CRYSTAL WINDOW GEH-WB56X23809
...
339
GUARD INSULATION GEH-WB56K10033
...
341
INSULATION GEH-WB35X29083
...
342
PANEL SIDE FOIL GEH-WB35X26892
...
354
SCREW 8-22 PL 1HX 71 GEH-WB01K10012
...
361
SCREW GEH-WB01K0035
...
362
BARRIER DOOR GEH-WB07X20288
...
365
HANDLE AND END CAP ASM GEH-WB15X26624
...
366
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
370
BUMPER DOOR GEH-WB02K10330
...
394
TRIM DOOR GEH-WB07X20354
...
399
PANEL BACKER GEH-WB56X20809
...
2000
GE BADGE GRAY GEH-WB02T10589X

GAS & BURNER PARTS

...
...
1
HINGE SERVICE KIT GEH-WB49X21392
...
1
KIT LP CONVERSION ASM GEH-WB28X26889
...
1
PM GAS QUICK GUIDE GEH-49-85224
...
1
PM MINI MANUAL GEH-31-17196
...
2
KNOB VALVE GEH-WB03X21227
...
4
ECONOMIC NUT GEH-WB01K10037
...
5
PANEL AND COVER ASM GEH-WB36X26434
...
8
SCREW 8-32 GEH-WB01K10002
...
11
INJET, MEDIUM V2 GEH-WB02X24727
...
12
SWITCHES & HARNESS GEH-WB18X21433
...
13
INJET, LARGE V2 GEH-WB02X24726
...
14
MANIFOLD PIPE GEH-WB28K10457
...
15
INJET, SMALL V2 GEH-WB02X24728
...
16
BLACK CABLE TIE 5 1/2 LO GEH-WB01K10094
...
18
COVER VALVE GEH-WB02K0024
...
20
REAR ORIFICE HOLDER GEH-WB28X27442
...
22
FRONT ORIFICE HOLDER GEH-WB28X27443
...
23
REAR ORIFICE HOLDER GEH-WB28X27441
...
24
FRONT ORIFICE HOLDER GEH-WB28X27444
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
51
ORIFICE SPUD GEH-WB28K10834
...
52
ORIFICE-LP 89MM GEH-WB28K10023
...
53
ORIFICE-LP LG 99MM GEH-WB28K10032
...
56
VALVE BURNER 140 GEH-WB21X26435
...
58
VALVE BURNER 140 GEH-WB21X26436
...
63
MANIFOLD SUPPORT GEH-WB02K10272
...
83
OVEN ORIFICE SPUD GEH-WB28X21079
...
95
BRACKET REGULATOR GEH-WB02X22890
...
146
CLIP RANGETOP GEH-WB02X26569
...
206
SCREW GEH-WB01K10091
...
214
VALVE CONTROL ASM NOR. S GEH-WB21X29150
...
215
BRACKET SAFETY VALVE GEH-WB02K0065
...
216
NUT LOCK GEH-WB01K0006
...
217
BURNER OVEN ASSY GEH-WB16X26432
...
218
IGNITER-OVEN BAKE GEH-WB13K0021
...
219
FLAME SPREADER GEH-WB49K0044
...
237
TUBE MANIFOLD SUPPLY ASM GEH-WB28X25363
...
707
CLIP WIRE GEH-WB02K10267
...
832
SCREW THERMOSTAT GEH-WB01K10097
...
900
ROUND VALVE BRACKET GEH-WB02K10263
...
...
...
