product name

GE JGBS60DLF1WW Gas Range

Model: JGBS60DLF1WW

Save
 Part Not Listed?Part Not Listed?
product name

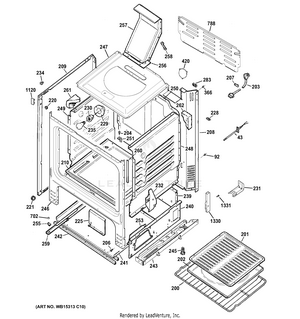

BODY PARTS

...
...
43
TEMPERATURE SENSOR GEH-WB20K10015
...
92
SCREW GROUND GEH-WB01X1261
...
200
OVEN RACK GEH-WB48X20249
...
201
RACK BROILER PAN GEH-WB48K10008
...
202
BROILER PAN - RACK NOT I GEH-WB48K10017
...
203
LINE CORD GEH-WB18K10036
...
204
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
204
SCREW (BLK) GEH-WB01K0042
...
206
SCREW GEH-WB01K10091
...
207
CLAMP CABLE GEH-WB02K0036
...
208
RANGE BACK GEH-WB63X20207
...
209
PANEL SIDE GEH-WB56X22009
...
210
BOTTOM OVEN GEH-WB35K10035
...
220
GROMMET GEH-WB02K0008
...
221
GROMMET GEH-WB02K10294
...
225
SHIELD VALVE GEH-WB34K0002
...
228
CLIP WIRE GEH-WB02X7066
...
229
HOUSING RECEPTACLE GEH-WB08K0001
...
230
RECEPTACLE PUSH-IN GEH-WB08T10026
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
232
HINGE GUARD RIGHT GEH-WB34K0003
...
232
HINGE GUARD LEFT GEH-WB34K0004
...
234
GUIDE SUPPORT RGTP GEH-WB02K0066
...
235
40A15 GEH-STD372401
...
239
PANEL REAR BROIL GEH-WB63K10030
...
240
PANEL SIDE BROIL LFT GEH-WB63K0003
...
240
PANEL SIDE BROIL RT GEH-WB63K0002
...
241
BOTTOM RANGE GEH-WB63K10029
...
242
BRACE BOTTOM GEH-WB63X26259
...
243
SUPPORT BASE RT GEH-WB63X20215
...
243
SUPPORT BASE LT GEH-WB63X20216
...
245
LEG LEVELER GEH-WB02K10182
...
246
FRAME WELD ASM GEH-WB63X20251
...
247
OVEN TOP GEH-WB53K10002
...
248
OVEN SIDE RIGHT GEH-WB53K10034
...
249
OVEN SIDE LEFT GEH-WB53K10035
...
250
OVEN BACK GEH-WB63X20219
...
251
ANGLE SUPPORT GEH-WB02K0003
...
253
COVER ACCESS SPRING GEH-WB02K0004
...
255
BROILER STOP GEH-WB02K0005
...
256
GASKET VENT GEH-WB32K0001
...
257
VENT ASM GEH-WB38K10001
...
258
BRACE VENT GEH-WB38K0002
...
259
SLIDE RANGE BOTTOM LEFT GEH-WB39K0002
...
259
SLIDE RANGE BOTTOM RIGHT GEH-WB39K0001
...
260
GASKET OVEN SEAL LG GEH-WB32K0002
...
261
INSULATION OVEN WRAP GEH-WB35K10157
...
262
INSULATION OVEN BACK GEH-WB35K0016
...
283
CLIP CABLE GEH-WB02K0031
...
366
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
420
COVER BACK GEH-WB34K0016
...
788
COVER BACK GEH-WB34X21575
...
1120
BUMPER GEH-WB02K10179
...
1330
RECEIVER HINGE GEH-WB10X20220
...
1331
SCREW MTG END CAP (WH) GEH-WB01K0066

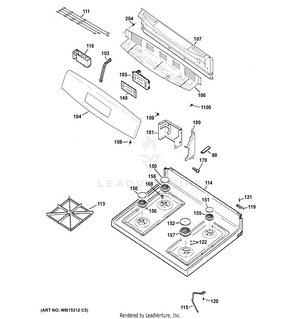

CONTROL PANEL & COOKTOP

...
...
88
PAD FELT (2") GEH-WB02K0062
...
100
END SUPPORT RIGHT GEH-WB07X20277
...
100
END SUPPORT LEFT GEH-WB07X20278
...
101
BRACKET COOK TOP GEH-WB37X20196
...
101
BRACKET COOK TOP GEH-WB37X20193
...
103
BRACKET CONTROL GEH-WB02K10150
...
104
TRIM CONTROL GEH-WB07X20341
...
105
CONTROL OVEN TO9 (GAS) GEH-WB27K10452
...
106
COVER BACK UPPER GEH-WB34K10123
...
107
COVER BACK LOWER GEH-WB34K10129
...
108
SCREW (CR) GEH-WB01X5364
...
109
SPEEDNUT GEH-WB01X5743
...
110
IGNITION MODULE GEH-WB13X24323
...
111
ELECTRODES & HARNESS HV GEH-WB18K10098
...
113
GRATE ASM HAIRPIN HV GEH-WB31X20643
...
114
RANGE TOP S.B. GEH-WB62X20276
...
115
SUPPORT COOKTOP GEH-WB02K10276
...
119
PIN HINGE GEH-WB14K0005
...
120
SCREW WASHER ASM GEH-WB01K0045
...
121
SCREW GEH-WB01K0001
...
122
CKT SCREW GEH-WB01X24460
...
140
OVERLAY T09 GEH-WB07X20279
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM BURNER CAP (5000) GEH-WB29K10022
...
152
ASM BURNER CAP (12000) GEH-WB29K10024
...
155
SMALL BURNER V 5K GEH-WB16K10070
...
156
BURNER MEDIUM (9500) GEH-WB16K10055
...
157
BURNER 12K GEH-WB16T10046
...
168
CLIP ELECTRODE GEH-WB01K10112
...
170
SCREW WH GEH-WB01X5874
...
204
SCREW (BLK) GEH-WB01K0042
...
204
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
1100
SCREW 8-18 AB HXW 5/8 S GEH-WB01T10016

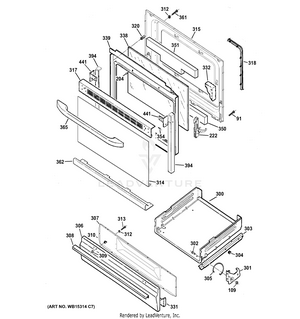

DOOR & DRAWER PARTS

...
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
109
SPEEDNUT GEH-WB01X5743
...
204
SCREW (BLK) GEH-WB01K0042
...
204
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
222
HINGE DOOR GEH-WB10X21809
...
300
BROILER WELD ASM GEH-WB39K0006
...
301
HINGE BROILER LEFT GEH-WB10K0006
...
301
HINGE BROILER RIGHT GEH-WB10K0005
...
302
PIN BROILER CR GEH-WB01K0007
...
303
SLIDE BROILER PAN GEH-WB39K10029
...
303
SLIDE BROILER PAN GEH-WB39K10030
...
304
SLIDE BROILER GEH-WB39K0009
...
305
SPRING BROILER RIGHT GEH-WB09K0002
...
305
SPRING BROILER LEFT GEH-WB09K0003
...
306
PANEL DRAWER WHITE GEH-WB39K0003
...
307
LINER DRAWER GEH-WB39K10041
...
308
HANDLE-BROILER (WHITE) GEH-WB15K10008
...
309
FIBER WASHER GEH-WB01X0560
...
310
SPACER GEH-WB02K0014
...
312
CONTOURED WASHER GEH-WB01X0119
...
313
SCREW 10-16 PL PNT 2.5 S GEH-WB01K0031
...
314
GLASS OVEN DOOR ASM GEH-WB57X21442
...
315
LINER ASM WELD DOOR GEH-WB56X20206
...
317
TRIM TOP DOOR (WH) GEH-WB07K0400
...
318
GASKET DOOR ASM GEH-WB56X21215
...
320
SPACER GEH-WB02K10161
...
331
INSULATION DRAWER GEH-WB35K0003
...
332
SIDE INSULATION DOOR GEH-WB35K10146
...
338
CRYSTAL WINDOW GEH-WB56K0020
...
339
GUARD INSULATION GEH-WB56K10033
...
350
BOTTOM INSULATION DOOR GEH-WB35K10147
...
351
INSULATION TOP DOOR GEH-WB35K10148
...
354
SCREW 8-22 PL 1HX 71 GEH-WB01K10012
...
361
SCREW GEH-WB01K0063
...
362
BARRIER DOOR GEH-WB07X20288
...
365
HANDLE (LE-WH) GEH-WB15T10214
...
394
TRIM POST LEFT GEH-WB07X23480
...
394
TRIM POST RIGHT GEH-WB07X23481
...
441
END CAP DOOR - RH (WH) GEH-WB07X7187
...
441
END CAP DOOR - LF (WH) GEH-WB07X7188

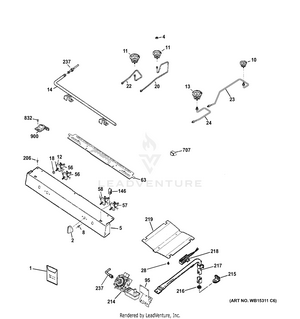

GAS & BURNER PARTS

...
...
1
HINGE SERVICE KIT GEH-WB49X21392
...
1
PM MINI MANUAL GEH-31-17196
...
1
PM OWNERS MANUAL GEH-49-85214
...
2
KNOB VALVE GEH-WB03X21228
...
4
ECONOMIC NUT GEH-WB01K10037
...
5
MANIFOLD PANEL GEH-WB36X20275
...
8
SCREW 8-32 GEH-WB01K10002
...
10
CKT BRACKET SMALL GEH-WB02K10360
...
11
CKT BRACKET MDM & LGE GEH-WB02K10361
...
12
SWITCHES & HARNESS GEH-WB18X21433
...
13
CKT BRACKET MDM & LGE GEH-WB02K10362
...
14
MANIFOLD PIPE GEH-WB28K10457
...
18
COVER VALVE GEH-WB02K0024
...
20
REAR ORIFICE HOLDER GEH-WB28K10253
...
22
FRONT ORIFICE HOLDER GEH-WB28K10254
...
23
REAR ORIFICE HOLDER GEH-WB28K10252
...
24
FRONT ORIFICE HOLDER GEH-WB28X26433
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
56
VALVE BURNER 140 GEH-WB21X26435
...
57
VALVE BURNER 140 GEH-WB21X26437
...
58
VALVE BURNER 140 GEH-WB21X26436
...
63
MANIFOLD SUPPORT GEH-WB02K10272
...
95
BRACKET REGULATOR GEH-WB02X22890
...
146
CLIP RANGETOP GEH-WB02K0052
...
206
SCREW GEH-WB01K10091
...
214
VALVE CONTROL ASM NOR. S GEH-WB21X26438
...
215
BRACKET SAFETY VALVE GEH-WB02K0065
...
216
NUT LOCK GEH-WB01K0006
...
217
BURNER OVEN ASSY GEH-WB16X26432
...
218
IGNITER-OVEN BAKE GEH-WB13K0021
...
219
FLAME SPREADER GEH-WB49K0044
...
237
TUBE MANIFOLD SUPPLY ASM GEH-WB28X25363
...
707
CLIP WIRE GEH-WB02K10267
...
832
SCREW THERMOSTAT GEH-WB01K10080
...
900
ROUND VALVE BRACKET GEH-WB02K10263
...
...
...
