GE JGB690SEF1SS Gas Range

Model: JGB690SEF1SS

Save
 Part Not Listed?Part Not Listed?
product name

BODY PARTS

...
...
43
TEMPERATURE SENSOR GEH-WB20K10027
...
79
SPACER SIDE GEH-WB02X20849
...
92
SCREW GROUND GEH-WB01X1261
...
203
LINE CORD GEH-WB18K10031
...
204
SCREW (BLK) GEH-WB01K0042
...
206
SCREW GEH-WB01K10091
...
207
CLAMP CABLE GEH-WB02K0036
...
208
RANGE BACK GEH-WB63X23200
...
209
PANEL SIDE GEH-WB56X22013
...
210
BOTTOM OVEN ASM GEH-WB63X20914
...
212
SPEEDNUT GEH-WB01K0002
...
220
GROMMET GEH-WB02K0008
...
228
CLIP WIRE GEH-WB02X7066
...
229
HOUSING RECEPTACLE GEH-WB08K0001
...
230
RECEPTACLE PUSH-IN GEH-WB08T10026
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
233
PLUNGER SWITCH GEH-WB24K10068
...
235
40A15 GEH-STD372401
...
238
SPACER BASE REAR GEH-WB16X20449
...
238
SPACER BASE FRONT GEH-WB16X20448
...
239
PANEL REAR BROIL GEH-WB63K10203
...
240
PANEL SIDE BROIL RT GEH-WB63K0002
...
240
PANEL SIDE BROIL LFT GEH-WB63K0003
...
243
SUPPORT BASE RT GEH-WB63X20215
...
243
SUPPORT BASE LT GEH-WB63X20216
...
245
LEG LEVELER GEH-WB02K10182
...
246
FRAME WELD ASM GEH-WB63X20353
...
247
OVEN TOP GEH-WB53K10015
...
248
OVEN SIDE RIGHT GEH-WB53K10034
...
249
OVEN SIDE LEFT GEH-WB53K10035
...
250
OVEN BACK GEH-WB63X20422
...
255
DRAWER SUPPORT GEH-WB02K10163
...
256
GASKET VENT GEH-WB32K0001
...
257
VENT ASSY GEH-WB38K10008
...
258
BRACE VENT GEH-WB38K0002
...
259
RAIL DRAWER GEH-WB39K0016
...
260
GASKET OVEN SEAL LG GEH-WB32K0002
...
261
INSULATION OVEN WRAP GEH-WB35K10210
...
262
INSULATION ASSEMBLY GEH-WB35X21198
...
274
SCREW LATCH GEH-WB01K0044
...
275
GLASS OVEN LAMP GEH-WB08K0005
...
276
BAIL GEH-WB02K0027
...
277
GASKET OVEN LIGHT GEH-WB32K0005
...
279
LATCH ASSEMBLY GEH-WB10X21599
...
283
CLIP CABLE GEH-WB02K0031
...
284
BOTTOM OVEN BRACKT SUPPO GEH-WB02K0032
...
287
GUARD RADIATION RT GEH-WB34K0030
...
287
GUARD RADIATION LFT GEH-WB34K0031
...
288
BRACE BOTTOM GEH-WB63K0015
...
289
LOWER HEAT SHIELD GEH-WB34K10086
...
290
SHIELD RADIATION GEH-WB34K0012
...
291
GUARD BOTTOM GEH-WB63K0016
...
292
BOTTOM INNER GUARD GEH-WB63K10187
...
295
INSULATION VENT GEH-WB35K10218
...
299
CLIP WIRE GEH-WB02K0038
...
366
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
420
COVER BACK GEH-WB34K0016
...
700
CLIP INSULATION GEH-WB02K10380
...
703
BRACKET OVEN CORNER GEH-WB02K0041
...
707
CLIP WIRE GEH-WB02K10267
...
709
COVER LAMP GEH-WB08K10018
...
720
FAN COVER FRONT GEH-WB34K10037
...
721
FAN BLADE GEH-WB02X8351
...
722
FAN COVER BACK GEH-WB34K10038
...
723
FAN INSULATOR GEH-WB35K10038
...
724
FAN SUPPORT GEH-WB02K10034
...
725
COVER MOTOR GEH-WB34K10148
...
726
FAN MOTOR CONVECT-2SPEED GEH-WB26K10003
...
729
NUT GEH-WB02T10017
...
780
DIFFUSER VENT GEH-WB38K10022
...
1000
RUBBER BUMPER STRIP GEH-WB04K10036
...
1120
BUMPER GEH-WB02K10171
...
1330
RECEIVER HINGE GEH-WB10X20220
...
1331
SCREW MTG HINGE (TORX) GEH-WB01K0053

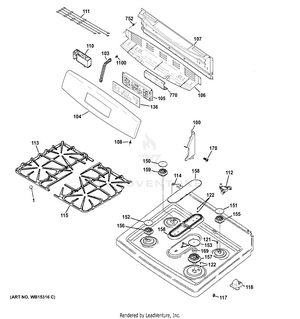

CONTROL PANEL & COOKTOP

...
...
1
PM MINI MANUAL GEH-31-17071
...
1
KIT HIGH ALTITUDE ASM GEH-WB28X20688
...
1
LP CONVERSION INST GEH-31-10918
...
1
KIT LP CONVERSION ASM GEH-WB49X20382
...
1
PM OWNERS MANUAL GEH-49-85214
...
1
HINGE SERVICE KIT GEH-WB49X21392
...
100
END SUPPORT GEH-WB07X20534
...
100
END SUPPORT GEH-WB07X20533
...
103
BRACKET CONTROL GEH-WB02K10150
...
104
TRIM CONTROL ASM GEH-WB07X20366
...
105
CONTROL OVEN TO9 (GAS) GEH-WB27X20911
...
106
COVER BACK UPPER GEH-WB34K10123
...
107
COVER BACK LOWER GEH-WB34K10129
...
110
SPARK MODULE 6+0 GEH-WB13K10033
...
111
ELECTRODES & HARNESS HV GEH-WB18X20379
...
112
HINGE RANGE TOP GEH-WB14K10003
...
113
GRATE CAST (DD) GEH-WB31K10257
...
114
RANGETOP & BRKT ASM GEH-WB62X20488
...
115
GRATE CAST (DD) GEH-WB31K10258
...
117
PIN LOCATOR FRONT GEH-WB02K0017
...
118
PIN LOCATOR FRONT GEH-WB14K10005
...
121
SCREW GEH-WB01K0001
...
122
CKT SCREW GEH-WB01K10106
...
136
OVERLAY T09 GEH-WB07X20326
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM BURNER CAP (5000) GEH-WB29K10022
...
152
ASM BURNER CAP (12000) GEH-WB29K10024
...
153
CAP BURNER ASM (15K) GEH-WB28K10222
...
155
SMALL BURNER V 5K GEH-WB16K10070
...
156
BURNER 12K GEH-WB16T10046
...
157
VISION BURNER XL GEH-WB16K10062
...
158
OVAL BURNER ASM GEH-WB16K10076
...
159
BURNER MEDIUM (9500) GEH-WB16K10055
...
169
VENTURI CHOKE 15K LP GEH-WB16K10084
...
170
SCREW (BLK) GEH-WB01X5716
...
170
SCREW GEH-WB01X5754
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
770
INSULATION CONTROL GEH-WB35K10040
...
1100
SCREW GEH-WB01K0021

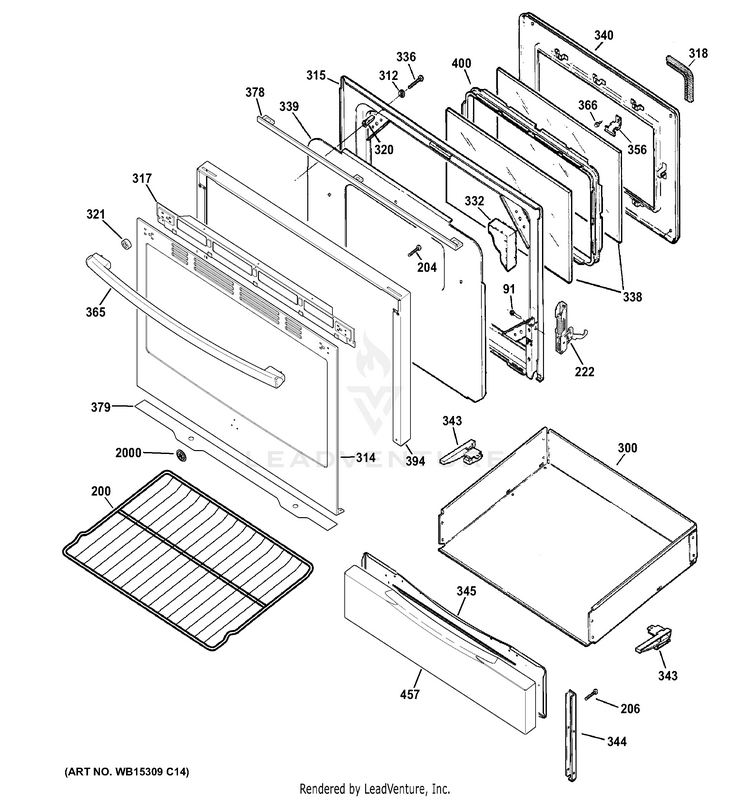

DOOR & DRAWER PARTS

...
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
200
OVEN RACK GEH-WB48X20249
...
204
SCREW (BLK) GEH-WB01K0042
...
206
SCREW GEH-WB01K10091
...
222
HINGE DOOR GEH-WB10X21659
...
300
DRAWER BODY GEH-WB58K10015
...
312
CONTOURED WASHER GEH-WB01X0119
...
314
GLASS OVEN DOOR ASM GEH-WB56X21457
...
315
LINER ASM WELD DOOR GEH-WB56X20537
...
317
PANEL BACKER GEH-WB56X20809
...
318
GASKET ASM DOOR GEH-WB04K10022
...
320
SPACER GEH-WB02K10161
...
321
GROMMET HANDLE GEH-WB01K0010
...
332
INSULATION BOTTOM DOOR GEH-WB35K10150
...
332
INSULATION SIDE DOOR GEH-WB35K10149
...
336
SCR 10-16 X 2 3/4 GEH-WB01K10078
...
338
CRYSTAL WINDOW GEH-WB56K0020
...
339
GUARD INSULATION GEH-WB56K0012
...
340
PANEL ASM WELD GEH-WB55K10033
...
343
GLIDER DRAWER GEH-WB02K0068
...
344
BRACKET MOUNTING DRAWER GEH-WB39K0020
...
345
LINER DRAWER GEH-WB55K10068
...
356
CLIP WINDOW GEH-WB02K0056
...
365
HANDLE AND END CAP ASM GEH-WB15X26624
...
366
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
378
DEFLECTOR DOOR GEH-WB56X21576
...
379
DEFLECTOR BOTTOM DOOR GEH-WB56X21577
...
394
TRIM DOOR GEH-WB07X20358
...
400
WINDOW SPACER ASM GEH-WB34K10087
...
457
DRAWER ASM GEH-WB56X20867
...
2000
GE BADGE GRAY GEH-WB02T10589X

GAS & BURNER PARTS

...
...
1
PM OWNERS MANUAL GEH-49-85214
...
1
PM MINI MANUAL GEH-31-17071
...
1
LP CONVERSION INST GEH-31-10918
...
1
KIT HIGH ALTITUDE ASM GEH-WB28X20688
...
1
KIT LP CONVERSION ASM GEH-WB49X20382
...
1
HINGE SERVICE KIT GEH-WB49X21392
...
2
KNOB ASM GEH-WB03X20900
...
4
ECONOMIC NUT GEH-WB01K10037
...
5
PANEL AND COVER ASM GEH-WB36X20497
...
8
SCREW 8-32 GEH-WB01K10002
...
9
BOX BURNER SP GEH-WB63K10190
...
10
CKT BRACKET SMALL GEH-WB02K10360
...
11
CKT BRACKET MDM & LGE GEH-WB02K10361
...
12
HARNESS SWITCHES GEH-WB18X23202
...
13
CKT BRACKET MDM & LGE GEH-WB02K10362
...
14
MANIFOLD PIPE GEH-WB28X20256
...
16
BRACKET COOKTOP XL GEH-WB02K10363
...
18
COVER VALVE GEH-WB02K0024
...
20
ORIFICE HOLDER ASM GEH-WB28X20899
...
22
ORIFICE HOLDER ASM GEH-WB28X20401
...
23
NG & TUBE ORIFICE ASM GEH-WB28X20258
...
24
NG & TUBE ORIFICE ASM GEH-WB28X20814
...
25
NG & TUBE ORIFICE ASM GEH-WB28K10626
...
26
BURNER BAKE GEH-WB16X20463
...
27
TUBE BURNER SUPPLY GEH-WB28X20296
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
29
ELBOW 90 ASM GEH-WB28X20389
...
30
BURNER BROIL GEH-WB16K10086
...
32
INSULATION BURNER BOX GEH-WB35K10026
...
37
IGNITER COVER GEH-WB34K0014
...
50
ORIFICE SPUD LP 88L GEH-WB28K10214
...
51
ORIFICE SPUD GEH-WB28K10834
...
52
ORIFICE-LP 89MM GEH-WB28K10023
...
53
ORIFICE SPUD LP GEH-WB28K10842
...
54
ORIFICE SPUD LP 86L GEH-WB28K10215
...
55
VALVE BURNER 270 GEH-WB21X20261
...
56
VALVE BURNER 270 GEH-WB21X20260
...
57
VALVE BURNER 270 GEH-WB21X20262
...
99
SWITCH ROCKER SEALED GEH-WB24X20460
...
146
CLIP RANGETOP GEH-WB02K0052
...
206
SCREW GEH-WB01K10091
...
214
VALVE CONTROL ASM NOR. D GEH-WB21X21506
...
217
IGNITER GLOWBAR BROIL GEH-WB13K10020
...
218
IGNITER GLOWBAR GEH-WB13K10026
...
219
FLAME SPREADER GEH-WB49K0044
...
237
TUBE MANIFOLD SUPPLY GEH-WB28X24772
...
269
SIDE DEFLECTOR GEH-WB34X21952
...
270
DEFLECTOR GEH-WB49K10025
...
272
SHIELD BROIL GEH-WB34X20303
...
294
COVER TERMINAL GEH-WB63K10040
...
832
SCREW THERMOSTAT GEH-WB01K10080
...
900
BRACKET VALVE GEH-WB02K10297
...
...
...
