product name

GE JES1651SR2SS Microwave

Model: JES1651SR2SS

Save
 Part Not Listed?Part Not Listed?
product name

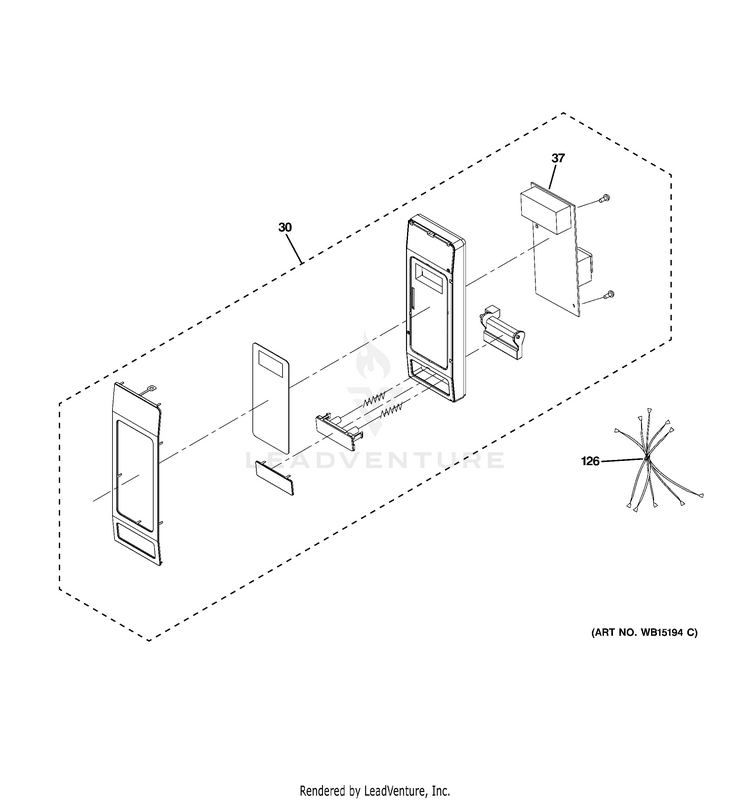

CONTROL PARTS

...
...
30
CONTROL PANEL ASM, SS GEH-WB56X21645
...
37
PCB ASM GEH-WB27X21379
...
126
HARNESS MAIN GEH-WB18X10480

DOOR PARTS

...
...
40
DOOR ASM, SS GEH-WB56X10931
...
9999
PM QUICK REF CMO N-CONV GEH-49-40731
...
9999
USE & CARE GEH-49-40634
...
9999
MINI MANUAL GEH-31-41033

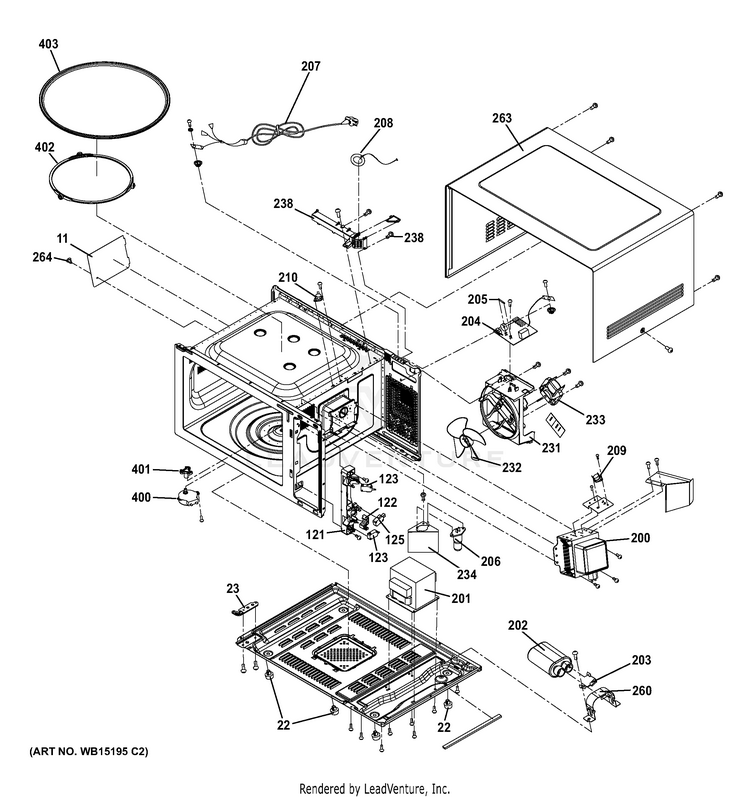

OVEN CAVITY PARTS

...
...
11
COVER WAVE GUID GEH-WB39X10034
...
22
LEG GEH-WB06X10863
...
23
HINGE,BOTTOM GEH-WB14X10050
...
121
BOARD LATCH GEH-WB14X10049
...
122
LEVER SWITCH GEH-WB06X10864
...
123
MICROSWITCH INTERLOCK GEH-WB23X10019
...
125
MICROSWITCH MONITOR GEH-WB24X10190
...
200
MAGETRON GEH-WB27X11135
...
201
H.V.TRANSFORMER GEH-WB20X10055
...
202
H.V.CAPACITOR GEH-WB27X11136
...
203
H.V.DIODE GEH-WB27X11137
...
204
FILTER NOISE GEH-WB27X11140
...
205
FUSE GEH-WB27X11138
...
206
LAMP GEH-WB25X10025
...
207
POWER CORD ASM GEH-WB18X10479
...
208
HUMIDITY SENSOR GEH-WB24X24013
...
209
THERMOSTAT 160/95 *V GEH-WB20X10054
...
210
THERMOSTAT 120/0 *H GEH-WB20X10056
...
231
FAN GUIDE GEH-WB39X10031
...
232
FAN GEH-WB06X10860
...
233
FAN MOTOR GEH-WB26X10253
...
234
WIND GUIDE GEH-WB39X10033
...
238
AIR GUIDE 1 GEH-WB39X10035
...
260
H.V.C HOLDER GEH-WB02X11524
...
263
CASE OUT GEH-WB56X10930
...
264
PLASTIC NAIL GEH-WB01X10418
...
400
TRAY MOTOR GEH-WB26X10252
...
401
COUPLER GEH-WB06X10861
...
402
ROTATING RING ASSEMBLY GEH-WB06X10862
...
403
TRAY GEH-WB39X10032
...
...
...
