GE JB450DF2WW Electric Range

Model: JB450DF2WW

Save
 Part Not Listed?Part Not Listed?
product name

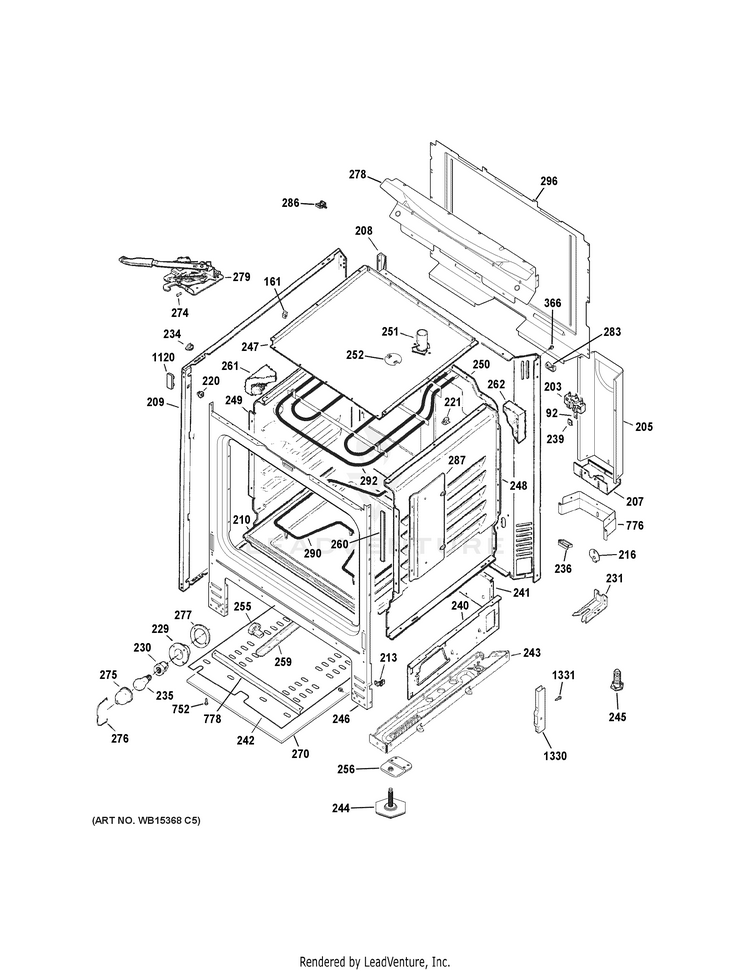

BODY PARTS

...
...
92
SCREW GROUND GEH-WB01X1261
...
161
CLIP WIRE GEH-WB02X8115
...
203
TERMINAL BLOCK ASM GEH-WB17T10011
...
205
GUARD TERMINAL GEH-WB34X21584
...
207
BRACKET MTG TERMINAL GEH-WB02K10029
...
208
RANGE BACK GEH-WB63X27000
...
209
PANEL SIDE GEH-WB56X26931
...
210
OVEN BOTTOM GEH-WB63K10006
...
213
NUT SPEED GEH-WB01K0003
...
216
COVER LIMITER GEH-WB06K10003
...
220
GROMMET GEH-WB02K0008
...
221
CLIP CAPILLARY GEH-WB02K0010
...
229
HOUSING RECEPTACLE GEH-WB08K0001
...
230
RECEPTACLE PUSH-IN GEH-WB08T10026
...
231
BRACKET ASM ANTI-TIP GEH-WB02X27862
...
234
GUIDE SUPPORT RGTP GEH-WB02K0066
...
235
40A15 GEH-STD372401
...
236
CLIP WIRE GEH-WB02K0022
...
239
PLATE-GROUND GEH-WB02X0646
...
240
PANEL SIDE BROIL LFT GEH-WB63K0003
...
240
PANEL SIDE BROIL RT GEH-WB63K0002
...
241
PANEL REAR BROIL GEH-WB63X26606
...
242
GUARD BOTTOM GEH-WB63K10031
...
243
SUPPORT BASE LEFT GEH-WB63K10255
...
243
SUPPORT BASE RIGHT GEH-WB63K10256
...
244
LEG LEVELING GEH-WB02X29030
...
245
LEG LEVELER GEH-WB02K10182
...
246
FRAME WELD ASM GEH-WB63X25196
...
247
OVEN TOP GEH-WB63K10052
...
248
SIDE OVEN RT GEH-WB63X23795
...
249
SIDE OVEN LF GEH-WB63X23794
...
250
OVEN BACK GEH-WB63K10064
...
251
TUBE VENT ASM. GEH-WB38K10011
...
252
VENT COVER GEH-WB04K10002
...
255
DRAWER SUPPORT GEH-WB02K10163
...
256
BRACKET BASE GEH-WB34X29134
...
259
RAIL DRAWER GEH-WB39K0016
...
260
GASKET OVEN SEAL LG GEH-WB32K0002
...
261
INSULATION OVEN WRAP GEH-WB35K10113
...
262
INSULATION OVEN BACK GEH-WB35K10116
...
270
INSULATION DRAWER TOP GEH-WB35K10043
...
274
SCREW LATCH GEH-WB01K0044
...
275
GLASS OVEN LAMP GEH-WB08K0005
...
276
BAIL GEH-WB02K0027
...
277
GASKET OVEN LIGHT GEH-WB32K0005
...
278
DIVIDER WIRING GEH-WB34X21602
...
279
LATCH ASSEMBLY GEH-WB02K10149
...
283
CLIP CABLE GEH-WB02K0031
...
286
CLIP WIRE GEH-WB02K10068
...
287
GUARD RADIATION RT GEH-WB34K0030
...
287
GUARD RADIATION LFT GEH-WB34K0031
...
290
BAKE ELEMENT GEH-WB44K10005
...
292
DOUBLE BROIL GEH-WB44K10013
...
296
COVER BACK GEH-WB34X21585
...
366
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
776
GUARD TERMINAL COMP GEH-WB34K10054
...
778
GUARD BOTTOM COMPL GEH-WB34K10055
...
1120
BUMPER GEH-WB02K10179
...
1330
RECEIVER HINGE GEH-WB10X20220
...
1331
SCREW MTG HINGE (TORX) GEH-WB01K0053

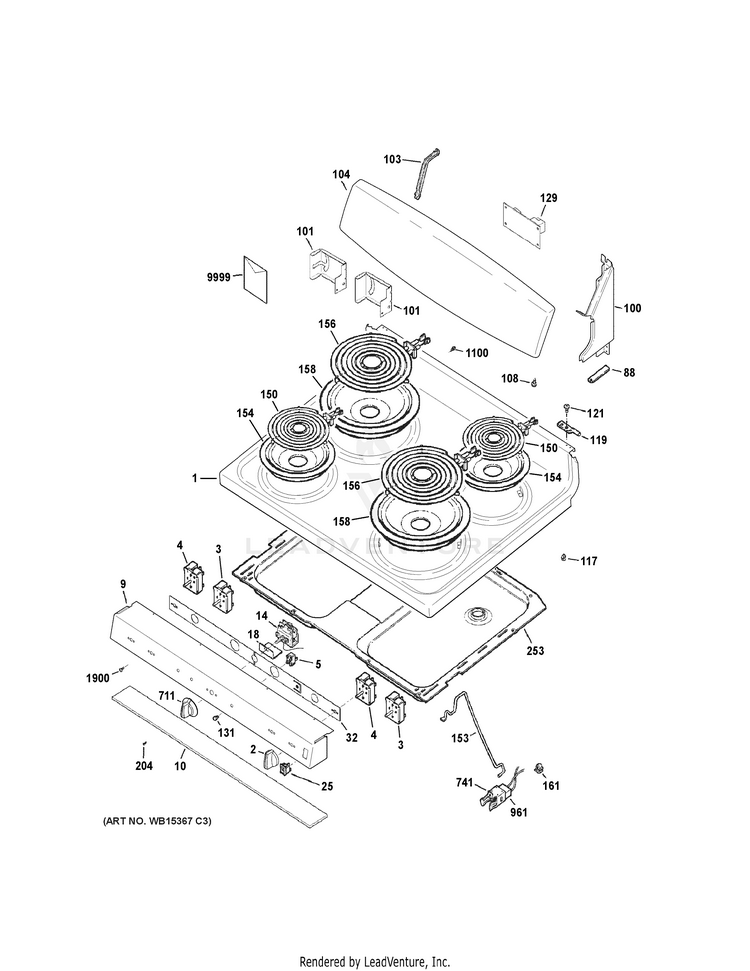

CONTROL PANEL & COOKTOP

...
...
1
RANGE TOP GEH-WB62X21353
...
2
KNOB VALVE GEH-WB03X21352
...
3
CONTROL SURF ELEM GEH-WB23K10003
...
4
CONTROL SURF ELEM GEH-WB23K10002
...
5
LAMP PILOT GEH-WB25K10007
...
9
FRONT PANEL GEH-WB63X21351
...
10
INSULATION BURNER BOX GEH-WB35K10029
...
14
SELF CLEAN THERMOSTAT GEH-WB20K10018
...
18
CARTON COVER THERMOSTAT GEH-WB02K10103
...
25
ROCKER LIGHT SWITCH (WH) GEH-WB24K0011
...
32
STRAP GROUND GEH-WB34K10070
...
88
PAD FELT (2") GEH-WB02K0062
...
100
END SUPPORT RIGHT GEH-WB07X20277
...
100
END SUPPORT LEFT GEH-WB07X20278
...
101
BRACKET COOK TOP GEH-WB37X20193
...
101
BRACKET COOK TOP GEH-WB37X20196
...
103
BRACKET CONTROL GEH-WB02K10150
...
104
TRIM CONTROL GEH-WB36X21594
...
108
SCREW WH GEH-WB01X5874
...
117
PIN LOCATOR REAR GEH-WB02K10075
...
117
PIN LOCATOR FRONT GEH-WB02K0017
...
119
PIN HINGE GEH-WB14K0005
...
121
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
129
TIMER SELF CLEAN GEH-WB11K10039
...
131
LENS GEH-WB25K0002
...
150
SURFACE UNIT ASM 6 GEH-WB30K10016
...
153
ROD SUPPORT GEH-WB02K10026
...
154
BOWL BURNER 6 (CH) GEH-WB31K10265
...
156
SURFACE UNIT ASM 8 GEH-WB30K10018
...
158
BOWL BURNER 8 (CH) GEH-WB31K10266
...
161
CLIP WIRE GEH-WB02X8115
...
204
SCREW (BLK) GEH-WB01K0042
...
253
BOX COOKTOP GEH-WB64K10011
...
711
THERMOSTAT KNOB ASM GEH-WB03X21350
...
741
CLIP RECEPTICAL GEH-WB02K10133
...
961
BLOCK INSULATOR GEH-WB17K10003
...
1100
SCREW 8-18 AB HXW 5/8 S GEH-WB01T10016
...
1900
SCREW 8-32 TPT FLR 215 S GEH-WB01T10020
...
9999
PM QUICK GUIDE GEH-49-80755
...
9999
PM MINI MANUAL GEH-31-17099
...
9999
HINGE SERVICE KIT GEH-WB49X21392

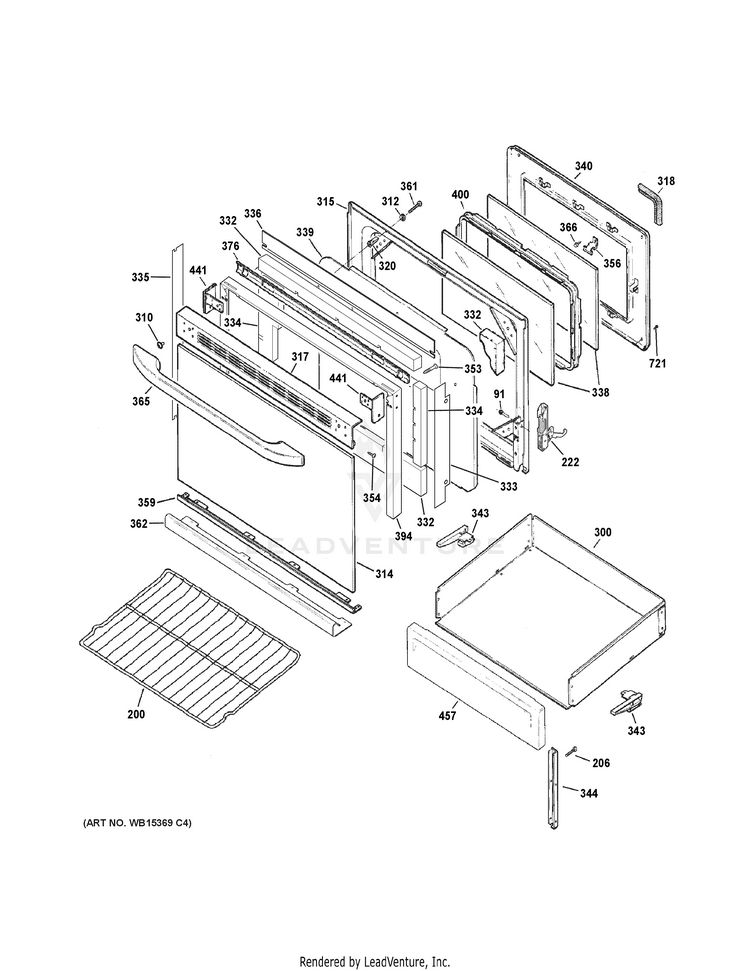

DOOR & DRAWER PARTS

...
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
200
OVEN RACK GEH-WB48X20249
...
206
SCREW GEH-WB01K10091
...
222
HINGE DOOR GEH-WB10X21982
...
300
DRAWER BODY GEH-WB58K10015
...
310
GROMMET HANDLE GEH-WB01K10023
...
312
CONTOURED WASHER GEH-WB01X0119
...
314
GLASS OVEN DOOR GEH-WB56X21369
...
315
LINER ASM WELD DOOR GEH-WB56X21344
...
317
TRIM TOP DOOR (WH) GEH-WB07K0400
...
318
GASKET ASM. DOOR GEH-WB35X29722
...
320
SPACER GEH-WB02K10161
...
332
INSULATION BOTTOM DOOR GEH-WB35K10102
...
333
REFLECTOR 9.5 INCH GEH-WB35K0022
...
334
INSULATION SIDE DOOR GEH-WB35K10101
...
335
REFLECTOR GEH-WB35K10041
...
336
INSULATION DOOR GEH-WB35K10084
...
338
CRYSTAL WINDOW GEH-WB56X23809
...
339
GUARD INSULATION GEH-WB56K0012
...
340
PANEL ASM WELD INNER GEH-WB55K0013
...
343
GLIDER DRAWER GEH-WB02K0068
...
344
BRACKET MOUNTING DRAWER GEH-WB39K0020
...
353
SCREW 8-22 PL 1HX 71 GEH-WB01K10012
...
354
SCREW MTG END CAP (WH) GEH-WB01K0066
...
356
CLIP WINDOW GEH-WB02K0056
...
359
TRIM BOTTOM ASM GEH-WB07K10250
...
361
SCR 10-16PL PNT 2.15S GEH-WB01K10075
...
362
BARRIER DOOR GEH-WB07X20288
...
365
HANDLE GEH-WB15K10100
...
366
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
376
DEFLECTOR HEAT GEH-WB35K0023
...
394
TRIM DOOR (WH) GEH-WB07X20359
...
400
WINDOW SPACER ASM GEH-WB34K10087
...
441
END CAP DOOR - RH (WH) GEH-WB07X7187
...
441
END CAP DOOR - LF (WH) GEH-WB07X7188
...
457
PANEL DRAWER (WHITE) GEH-WB36K10033
...
721
SCREW GEH-WB01K0084
...
...
...
