GE GWS04HAEDSS Refrigerator

Model: GWS04HAEDSS

Save
 Part Not Listed?Part Not Listed?
product name

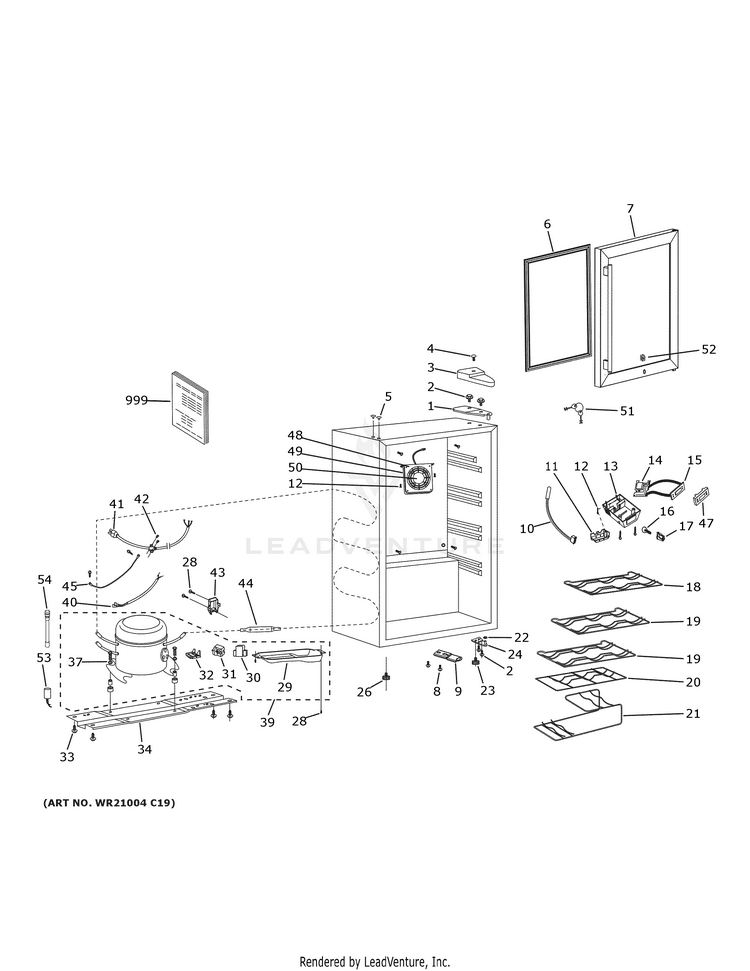

BEVERAGE CENTER

...
...
1
UPPER HINGE GEH-WR13X20026
...
2
SCREW GEH-WR01X20018
...
3
UPPER HINGE COVER GEH-WR13X20025
...
4
SCREW GEH-WR01X20028
...
5
PLUG BUTTON(BLACK) GEH-WR13X20021
...
6
DOOR GASKET(BLACK) GEH-WR24X20031
...
7
DOOR GEH-WR79X20032
...
8
SCREW GEH-WR01X10830
...
9
LOCK PLATE GEH-WR05X20044
...
10
TEMPERATURE PROBE WIRE GEH-WR51X20045
...
11
LAMP SHIELD GEH-WR02X20046
...
12
SCREW GEH-WR01X20047
...
13
CONTROL BOX GEH-WR55X20030
...
14
CONTROL PCB GEH-WR55X24392
...
15
DISPLAY PCB GEH-WR55X24394
...
16
LAMP GEH-WR02X20050
...
17
LAMP SOCKET GEH-WR02X31546
...
18
WIRE SHELF WITH STOP GEH-WR71X20052
...
19
UPPER WIRE SHELF GEH-WR71X20053
...
20
MID WIRE SHELF GEH-WR71X20054
...
21
BOTTOM WIRE SHELF GEH-WR71X20055
...
22
BUSHING GEH-WR02X20023
...
23
FIXED FOOT GEH-WR02X20056
...
24
BOTTOM HINGE GEH-WR13X20057
...
26
LEVELING LEG RIGHT GEH-WR01X29750
...
28
SCREW GEH-WR01X20060
...
29
DRIP TRAY GEH-WR30X24395
...
30
PTC COVER GEH-WR02X31547
...
31
PTCR GEH-WR02X31548
...
32
OVERLOAD GEH-WR09X31549
...
33
SCREW GEH-WR01X20034
...
34
COMPRESSOR BASE GEH-WR91X20043
...
37
BUSHING GEH-WR01X20029
...
39
COMPRESSOR GEH-WR87X31550
...
40
COMPRESSOR ELECTRICAL WIRE GEH-WR55X31430
...
41
POWER CORD GEH-WR55X31431
...
42
SCREW GEH-WR01X20039
...
43
WIRE BOX GEH-WR40X20017
...
44
R600 DRIER W/ RED CAP GEH-WR87X30875
...
45
GROUNDING WIRE GEH-WR88X20019
...
47
DISPLAY PANEL GEH-WR09X24393
...
48
FAN SET GEH-WR02X20027
...
49
FAN PROTECT COVER GEH-WR32X20035
...
50
FAN ASSEMBLY GEH-WR02X24396
...
51
LOCK AND KEY GEH-WR05X24397
...
52
BADGE ASM GE GEH-WR04X10222
...
53
CAPACITOR GEH-WR55X31551
...
54
R600 PROCESS VALVE W/ RED CAP GEH-WR87X30876
...
999
PM OWNERS MANUAL GEH-49-60734
...
999
PM MINI MANUAL GEH-31-51908

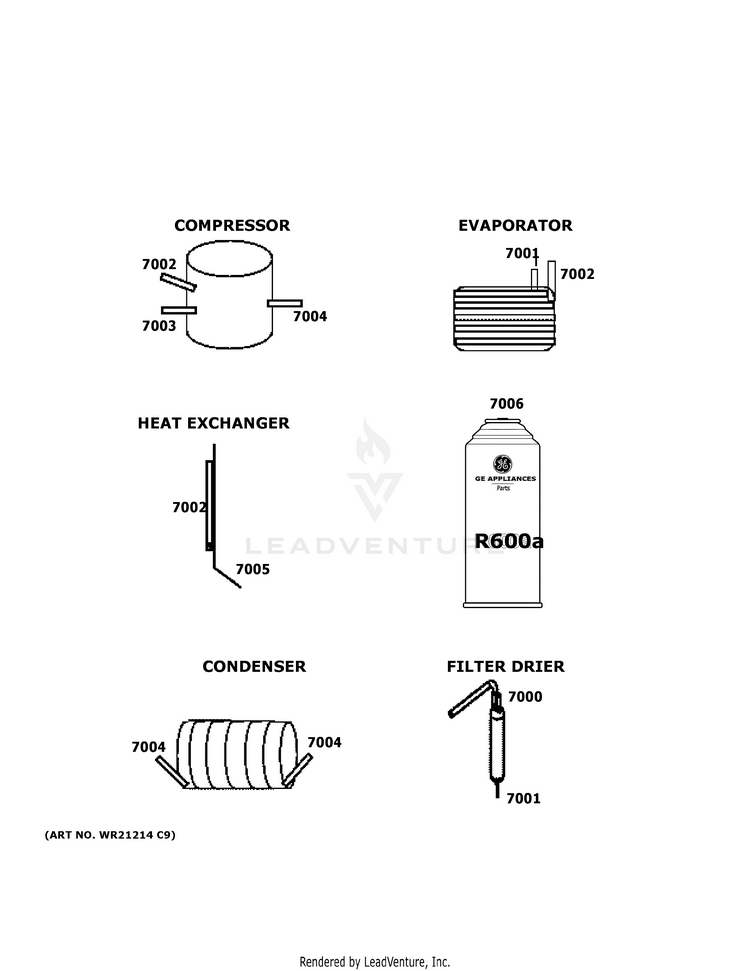

LOKRING CONNECTORS

...
...
7000
6MM X 4MM LOKRING GEH-WR97X10033
...
7001
4MM X 1.8MM LOKRING GEH-WR97X10083
...
7002
6MM X 6MM LOKRING GEH-WR97X10031
...
7003
8MM X 6MM LOKRING AL GEH-WR97X30618
...
7004
4MM X 3.2MM LOKRING GEH-WR97X31252
...
7005
6MM X 1.8MM LOKRING GEH-WR97X10085
...
7006
R600a CHARGE CAN 35 GRAMS GEH-WR98X35
...
...
...
