GE GWS04HAEBSS Refrigerator

Model: GWS04HAEBSS

Save
 Part Not Listed?Part Not Listed?
product name

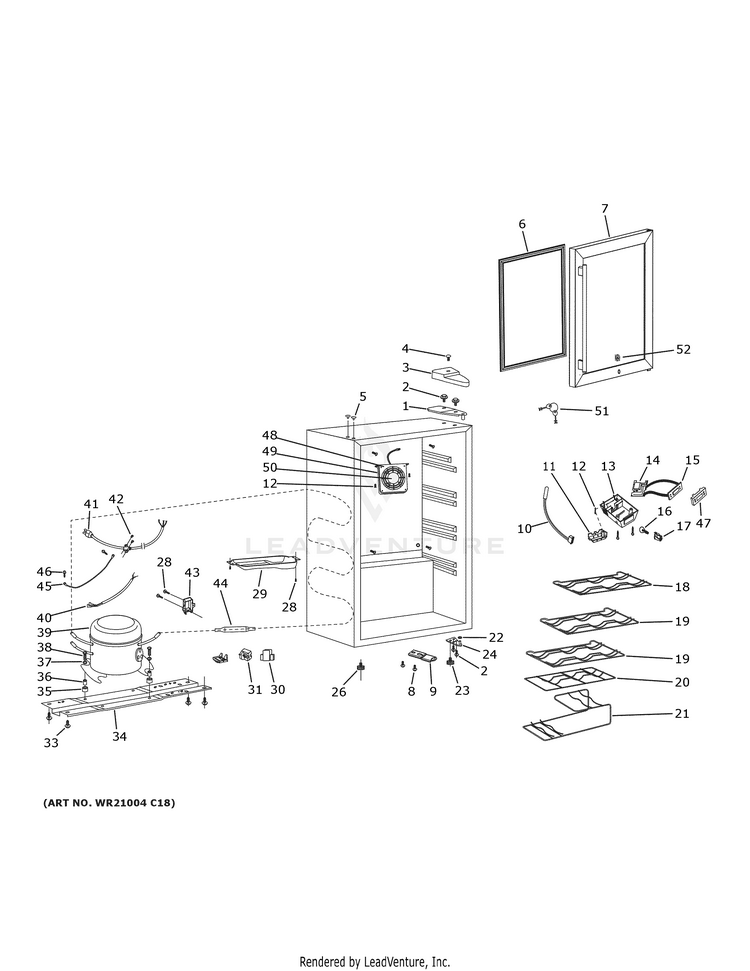

BEVERAGE CENTER

...
...
1
UPPER HINGE GEH-WR13X20026
...
2
SCREW GEH-WR01X20018
...
3
UPPER HINGE COVER GEH-WR13X20025
...
4
SCREW GEH-WR01X20028
...
5
PLUG BUTTON(BLACK) GEH-WR13X20021
...
6
DOOR GASKET(BLACK) GEH-WR24X20031
...
7
DOOR GEH-WR79X20032
...
8
SCREW GEH-WR01X20073
...
9
LOCK PLATE GEH-WR05X20044
...
10
TEMPERATURE PROBE WIRE GEH-WR51X20045
...
11
LAMP SHIELD GEH-WR02X20046
...
12
SCREW GEH-WR01X20047
...
13
CONTROL BOX GEH-WR55X20030
...
14
CONTROL PCB GEH-WR55X20048
...
15
DISPLAY PCB GEH-WR55X20049
...
16
LAMP GEH-WR02X20050
...
17
LAMP SET GEH-WR02X20051
...
18
WIRE SHELF WITH STOP GEH-WR71X20052
...
19
UPPER WIRE SHELF GEH-WR71X20053
...
20
MID WIRE SHELF GEH-WR71X20054
...
21
BOTTOM WIRE SHELF GEH-WR71X20055
...
22
BUSHING GEH-WR02X20023
...
23
FIXED FOOT GEH-WR02X20056
...
24
BOTTOM HINGE GEH-WR13X20057
...
26
ADJUSTABLE FOOT GEH-WR02X20024
...
28
SCREW GEH-WR01X20060
...
29
DRIP TRAY GEH-WR30X20020
...
30
PROTECTOR COVER GEH-3550C-0027A
...
31
PTC GEH-WR55X20061
...
33
SCREW GEH-WR01X20034
...
34
COMPRESSOR BASE GEH-WR91X20043
...
35
GROMMET-COMP GEH-5166C-0004A
...
36
SLEEVE GEH-WR09X20042
...
37
BUSHING GEH-WR01X20029
...
38
SCREW GEH-WR01X20033
...
39
COMPRESSOR GEH-WR91X20041
...
40
COMPRESSOR WIRE GEH-WR88X20040
...
41
POWER SUPPLY CORD GEH-WR55X20016
...
42
SCREW GEH-WR01X20039
...
43
WIRE BOX GEH-WR40X20017
...
44
DESICATED FILTER GEH-WR02X20022
...
45
GROUNDING WIRE GEH-WR88X20019
...
46
GROUNDING WIRE WASHER GEH-GB862.1
...
47
DISPLAY PANEL GEH-WR09X20038
...
48
FAN SET GEH-WR02X20027
...
49
FAN PROTECT COVER GEH-WR32X20035
...
50
FAN ASSY GEH-WR02X20036
...
51
LOCK KEY GEH-WR05X20037
...
52
BADGE ASM GE GEH-WR04X10222
...
...
...
