product name

GE GTW680BSJ1WS Washer

Model: GTW680BSJ1WS

Save
 Part Not Listed?Part Not Listed?
product name

CABINET

...
...
328
CLIP SPRING COVER GEH-WH02X24334
...
331
PATCH IMPACT GEH-WH01X27794
...
332
INNER DRAIN HOSE MOUNTIN GEH-WH10X24149
...
333
SCR 10-16 B HXW 3/8 S GEH-WH02X10396
...
431
FOOT AND BASE GEH-WH02X26588
...
693
SCR 8-16 PLASTITE HXW 5/ GEH-WH02X24057
...
824
CLAMP GEH-WH01X24494
...
825
HOSE DRAIN ASM EXTERNAL GEH-WH41X25300
...
826
CLIP ANT-SIP GEH-WH1X2725

CONTROLS & BACKSPLASH

...
...
1
PM MINI MANUAL AND WIRING GEH-31-3000190
...
1
PM MANUAL USE AND CARE GEH-49-90547
...
7
BADGE GE GEH-WH42X24097
...
8
CAPACITOR GEH-WH12X24103
...
9
CAPACITOR BRACKET GEH-WH16X24102
...
10
CONTROL BOARD SHIELD GEH-WH01X24101
...
11
BACKSPLASH FOAM SEAL GEH-WH08X24099
...
13
BACKSPLASH ASM GEH-WH42X24100
...
14
LEFT BACKSPLASH SUPPORT GEH-WH16X24095
...
15
RIGHT BACKSPLASH SUPPORT GEH-WH16X24096
...
19
KNOB ASM GEH-WE01X23886
...
35
UI-MC BOARD ASSEMBLY S GEH-WH18X26234
...
37
JUMPER HARNESS GEH-WH19X24055
...
72
CONTROL REAR PANEL GEH-WH10X24054
...
100
HARNESS ASSEMBLY ORANGE GEH-WH19X24189
...
149
SCREW 8-18 HI/LO 5/8 GEH-WR01X10196
...
151
SCREW 8-18 B 1HW 1/2 SN GEH-WH02X10126
...
250
SCR 8-18 AB 13/4 S HXW GEH-WR01X10634
...
404
LID LOCK HARNESS GEH-WH19X24141
...
557
POWER CORD GEH-WH08X28843

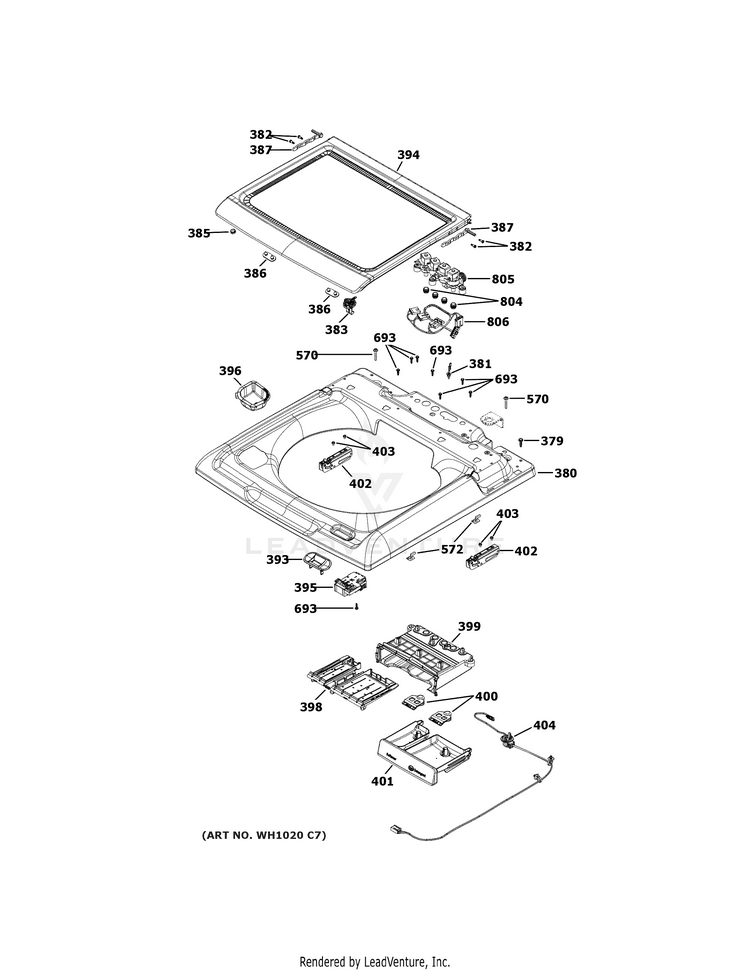

TOP PANEL & LID

...
...
379
SCR 10-32 GX HXW 7/16 S GEH-WE02X10107
...
380
TOP COVER GEH-WH44X24135
...
381
THERMISTOR ASSEMBLY GEH-WH01X24104
...
382
SCR 6-32 FLP .490 SS GEH-WH02X24414
...
383
LID LOCK STRIKER GEH-WH02X24106
...
385
LID FRONT CORNER BUMPER GEH-WH01X24108
...
386
LID CENTER BUMPER GEH-WH01X24110
...
387
LID LEVER ARM GEH-WH01X24111
...
393
LID LOCK BEZEL GEH-WH01X24112
...
394
GLASS LID ASM GEH-WH44X24109
...
395
LID LOCK GEH-WH01X24114
...
396
BLEACH CUP GEH-WH47X24115
...
398
DISPENSER SHOWER INSERT GEH-WH47X24136
...
399
DISPENSER BOX GEH-WH47X24134
...
400
DISPENSER SIPHON CAP GEH-WH47X24137
...
401
DISPENSER DRAWER GEH-WH47X24138
...
402
LID HINGE GEH-WH02X24139
...
403
LID HINGE SCREW GEH-WH02X24140
...
404
LID LOCK HARNESS GEH-WH19X24141
...
570
SCR 10-32 GX 1.309 HWX S GEH-WH02X24116
...
572
LID LOCK HARNESS CLIP GEH-WH02X24143
...
693
SCR 8-16 PLASTITE HXW 5/ GEH-WH02X24057
...
804
WATER VALVE SEAL GEH-WH13X24094
...
805
VALVE QUAD WATER ASM GEH-WH13X26637
...
806
WATER VALVE HARNESS GEH-WH19X24056

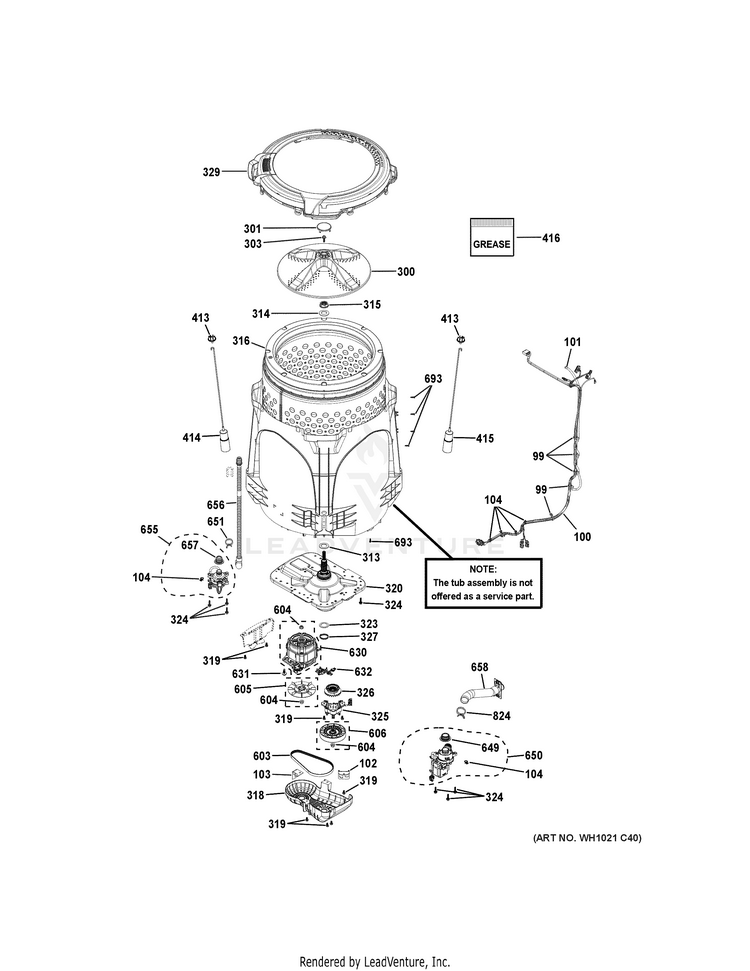

TUB & MOTOR

...
...
99
HARNESS WIRE TIE GEH-WH01X24190
...
100
HARNESS ASSEMBLY ORANGE GEH-WH19X24189
...
101
PRESSURE HOSE GEH-WH41X24191
...
102
DUAL HARNESS CONNECTOR B GEH-WH16X24192
...
103
SINGLE HARNESS CONNECTOR GEH-WH16X24193
...
104
PUSH MOUNT CABLE TIE GEH-WE2M193
...
300
IMPELLER ASM GEH-WH43X24152
...
301
IMPELLER CAP GEH-WH01X24151
...
303
SCR 1/4-20, 2A SINULOC GEH-WH02X24374
...
313
WASHER HUB GEH-WH02X10364
...
314
BELLEVILLE WASHER GEH-WH01X21534
...
315
NUT HUB GEH-WH02X10363
...
316
BASKET ASM GEH-WH45X24194
...
318
PROTECTOR BELT GEH-WH44X25306
...
319
SCR 1/4-20 TT HXT .485 S GEH-WH02X24154
...
320
PLATFORM BEARING RETAINER & FASTENERS GEH-WH03X33731
...
323
WASHER SPRING GEH-WH01X10759
...
324
SCREW PLATFORM GEH-WH02X10376
...
325
MODE SHIFTER ASM GEH-WH05X25036
...
326
CLUTCH GEH-WH05X24185
...
327
SPRING CLUTCH GEH-WH01X24434
...
329
TUB COVER GEH-WH44X24150
...
413
BALL JOINT UPPER GEH-WH01X26970
...
414
ROD AND SPRING ASM LEFT WHITE GEH-WH16X26911
...
415
ROD AND SPRING ASM RIGHT - GREEN GEH-WH16X26910
...
416
GREASE GEH-WH03X37017
...
603
DRIVE BELT GEH-WH01X24180
...
604
NUT PULLEY GEH-WH02X24417
...
605
1/2 HP MOTOR PULLEY AND NUT GEH-WH49X25377
...
606
TRANSMISSION PULLEY & NUT GEH-WH03X28859
...
630
1/2 HP MOTOR AND NUT GEH-WH49X25375
...
631
SCR 5/16-24 MCH HX 1 SIN GEH-WH02X24416
...
632
SENSOR SPEED ASM GEH-WH12X24894
...
649
DRAIN PUMP SEAL GEH-WH08X24179
...
650
PUMP DRAIN ASM GEH-WH23X27574
...
651
CLAMP HOSE GEH-WH01X10698
...
655
RECIRCULATION PUMP ASM GEH-WH23X24175
...
656
RECIRCULATION TUBE GEH-WH41X24174
...
657
RECIRCULATION PUMP SEAL GEH-WH08X24176
...
658
INTERNAL DRAIN HOSE ASM GEH-WH41X24177
...
693
SCR 8-16 PLASTITE HXW 5/ GEH-WH02X24057
...
824
CLAMP GEH-WH01X24494
...
...
...
