product name

GE GTH18GBDCRWW Refrigerator

Model: GTH18GBDCRWW

Save
 Part Not Listed?Part Not Listed?
product name

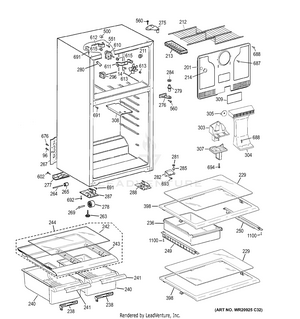

CABINET

...
...
14
SCR 8-32 TT HXW 3/8 S GEH-WR01X10860
...
96
SCREW ASM GEH-WR01X2009
...
201
COVER EVAP ASM GEH-WR17X11887
...
211
SUPPORT SHLF GEH-WR02X8429
...
212
SHELF ASSY FZ GEH-WR71X2086
...
213
TRAY ICE GEH-WR30X0311
...
214
PLUG BUTTON GEH-WR02X11760
...
229
SHELF GLASS GEH-WR32X10857
...
236
PAN MEAT GEH-WR32X1448
...
238
SLIDE PAN VEG HUMIDITY GEH-WR17X11658
...
240
PAN VEG HUMIDITY GEH-WR32X10479
...
241
TRIM VEG PAN HUMIDITY GEH-WR38X10409
...
242
SHELF GLASS GEH-WR32X10854
...
243
COVER VEG PAN GEH-WR17X11662
...
244
COVER ASM VEG PAN GEH-WR32X10855
...
249
SLIDE SHELF LH GEH-WR71X10996
...
250
SLIDE SHELF RH GEH-WR71X10997
...
263
GLIDER ADJ GEH-WR02X7877
...
264
AXLE WHEEL REAR GEH-WR02X8214
...
265
WHEEL MOBILITY REAR GEH-WR02X8245
...
267
COVER ACCESS GEH-WR82X10112
...
269
RIVET GEH-WR02X12267
...
275
HNG TOP/PIN WHT GEH-WR13X10326
...
276
HINGE CTR & PIN ASM GEH-WR13X10680
...
277
RAIL REAR GEH-WR17X3188
...
278
WHEEL, FRONT GEH-WR02X8244
...
279
PIN HINGE CTR GEH-WR02X8232
...
280
CAP CORNER OC WHITE GEH-WR02X10703
...
281
WASHER HINGE BROWN GEH-WR01X10146
...
282
HINGE BOTTOM GEH-WR13X10897
...
284
SPACER DOOR FZ GEH-WR01X1794
...
285
METAL HINGE PIN GEH-WR02X12238
...
287
GUSSET LH GEH-WR02X10530
...
288
GUSSET RH GEH-WR02X10529
...
296
COVER IM RECEPTACLE GEH-WR02X11123
...
303
DUCT FOAM GEH-WR02X12019
...
304
DUCT AIR FZ GEH-WR17X11891
...
305
ACTUATOR AIR GEH-WR02X12018
...
307
DIFFUSER AIR FF GEH-WR02X11793
...
308
INSUL ELECT GEH-WR02X8428
...
309
GASKET AIR DUCT GEH-WR02X12020
...
398
SHELF PLASTIC FULL WIDTH GEH-WR71X10995
...
500
BUMPER GEH-WR02X10540
...
551
SCR 8-18 AB RNDW 5/8 SS GEH-WR01X10789
...
560
SCREW GEH-WR01X1249
...
602
SCR 1/4-14 AB IHW 3/4 S GEH-WR01X10592
...
610
MOTOR AC/DC GEH-WR60X10141
...
611
BRACKET EVAP FAN FRT GEH-WR02X10516
...
612
BRACKET EVAP FAN REAR GEH-WR21X10152
...
613
BLADE EVAP FAN ASM GEH-WR60X10204
...
615
GROMMET EVAP FAN GEH-WR02X12008
...
676
SCR 10-16 AB HXW 1/2 GEH-WZ04X0263
...
687
SCR 8-15 AB IHXW 1/2 S GEH-WR01X10589
...
688
SCR 8-19 HI/LO TRP 1 S GEH-WR01X10448
...
691
SCREW 12-24 GEH-WR01X1753
...
692
SCR 12-24 GX BHT20 .900 GEH-WR01X10898
...
693
SCR 12-24 TT OVT20 .900 GEH-WR01X10591
...
694
SCREW GEH-WR01X1792
...
1100
SCR 10-32 GX HXW 9/16 S GEH-WR01X10641

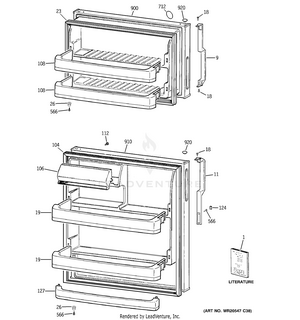

DOORS

...
...
1
PM MINI MANUAL WIRING GEH-31-51829-1
...
1
PM GUIDE OWNERS GEH-49-60656
...
9
HANDLE DOOR FZ WH GEH-WR12X11010
...
11
HANDLE DOOR FF WH GEH-WR12X11011
...
18
SCR 10-16 AB 3/4 SS GEH-WR01X1726
...
18
SCR 12-24 GX HXW .750 GEH-WR01X10950
...
19
SHELF FIXED FF GEH-WR17X12916
...
23
GASKET DOOR FZ GEH-WR24X10228
...
26
STOP DOOR GEH-WR02X13134
...
104
GASKET DOOR FF GEH-WR24X10236
...
106
DOOR DAIRY GEH-WR22X10068
...
108
SHELF FIXED FZ GEH-WR17X11890
...
112
BEAUTY BUTTON-WHT GEH-WR02X8693
...
124
PLUG BUTTON WH GEH-WR02X13612
...
127
SHELF FIXED FF GEH-WR17X11911
...
566
SCR 10-16 AB PNT20 1/2 S GEH-WR01X10590
...
712
BADGE GEH-WD34X11692
...
900
DOOR ASM FOAM FZ GEH-WR78X12490
...
910
DOOR ASM FOAM FF GEH-WR78X12491
...
920
PLUG BUTTON THIMBLE WH GEH-WR02X8233

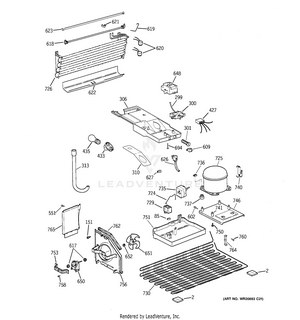

MACHINE COMPARTMENT

...
...
2
TAPE FELT - CONDENSER GEH-WR02X10534
...
85
CLAMP WIRE GEH-WR01X2008
...
151
SCR 8-18 AB IHXW 9/16 S GEH-WR01X10588
...
299
SLEEVE VINYL GEH-WR02X8344
...
300
CONTROL TEMP GEH-WR09X10042
...
301
KNOB CONTROL GEH-WR02X13355
...
306
HOUSING CONTROL GEH-WR17X12852
...
310
SHIELD REFLECTOR GEH-WR02X11597
...
313
TUBE DRAIN GEH-WR17X10684
...
427
HARNESS CONT MODULE GEH-WR23X10502
...
433
SOCKET & TERMINAL ASM GEH-WR02X11460
...
435
40WATT 15AMP GEH-40A15
...
551
SCR 8-18 AB RNDW 5/8 SS GEH-WR01X10789
...
602
SCR 1/4-14 AB IHW 3/4 S GEH-WR01X10592
...
609
SWITCH LIGHT GEH-WR23X10143
...
617
GROMMET COND FAN GEH-WR02X10098
...
618
HEATER CONDUCTION GEH-WR51X10038
...
619
HEATER CONDUCTION GEH-WR51X10102
...
620
THERMOSTAT DEF GEH-WR50X10078
...
621
HOLDER ELEMENT ASM GEH-WR02X13678
...
622
TROUGH DRAIN GEH-WR17X11657
...
623
SHIELD DRIP GEH-WR17X13021
...
626
CORD POWER ASM GEH-WR23X10301
...
627
CLAMP CABLE GEH-WR01X5278
...
648
CONTROL DEFROST GEH-WR09X10049
...
650
MOTOR AC/DC COND FAN GEH-WR60X10241
...
651
BLADE COND FAN ASM GEH-WR60X10206
...
652
RING COMPRESSION GEH-WR02X12149
...
694
SCREW GEH-WR01X1792
...
724
CLIP RETAINER MEI GEH-WR02X11999
...
725
AASM HI SIDE WR87X10211 GEH-WR87X10211
...
726
EVAP LOW SIDE GEH-WR85X10020
...
729
CAPACITOR GEH-WR62X0079
...
730
COND ASM FORMED GEH-WR84X10088
...
735
5SP OVERLOAD/PTC GEH-WR09X10105
...
736
CLIP COMP MTNG GEH-WR02X8583
...
737
GROMMET COMP MTG GEH-WR02X7238
...
740
DRYER BIFURCATED XH9 GEH-WR86X10070
...
741
STUD MTG COMPR GEH-WR01X1779
...
746
PLATE COMP MTG ASSY GEH-WR17X10195
...
750
SCR 10-32 TR 1/2 GEH-WR01X1786
...
751
DPO DRAIN PAN GEH-WR32X10455
...
753
BRACKET COND FAN (MTG) GEH-WR02X11863
...
756
COND FAN HSG & BRKT ASM GEH-WR17X11535
...
760
SCR 8-32 CA HXW 1/2 GEH-WR01X10317
...
762
COND TOP BAFFLE FOAM GEH-WR14X0313
...
764
CLIP, COND MNT GEH-WR02X9000
...
765
BAFFLE FAN GEH-WR17X10463
...
...
...
