GE GTDX180ED3WW Electric Dryer

Model: GTDX180ED3WW

Save
 Part Not Listed?Part Not Listed?
product name

BACKSPLASH, BLOWER & MOTOR ASSEMBLY

...
...
1
PM INSTALL INSTRUCTIONS GEH-31-16719
...
1
USE & CARE ( GE ) GEH-49-90407-1
...
1
MINI MANUAL GEH-31-16291
...
3
END CAP RH GEH-WE19X20466
...
4
END CAP LH GEH-WE19X20467
...
7
KNOB ASM TIMER - WH GEH-WE1M856
...
13
BACKSPLASH GRAPHIC ASM GEH-WE19X20414
...
19
KNOB AND CLIP ASM GEH-WE01X20432
...
35
SWITCH PTS GEH-WE4M416
...
72
PANEL BACK GEH-WE19M1481
...
75
SCREW GEH-WE2M173
...
85
ROTARY SWITCH ON/OFF GEH-WE4M399
...
87
ROTARY SWITCH 4TEMP REG GEH-WE4M407
...
100
TIMER GEH-WE4M533
...
201
BLOWER WHEEL GEH-WE16X20393
...
203
STRAP MOTOR GEH-WE13X200
...
204
STRAP MOTOR GEH-WE1X921
...
205
MOTOR SUPPORT GEH-WE13M39
...
213
BELT DRIVE GEH-WE12X21574
...
215
IDLER ARM GEH-WE03X20434
...
216
IDLER PULLEY GEH-WE12X20395
...
218
BLOWER GASKET (EXHAUST) GEH-WE1M966
...
219
BLOWER HOUSING ASM GEH-WE14X20392
...
223
SCREWS GEH-WE2M189
...
228
EXHAUST DUCT GEH-WE14X20421
...
230
THERMOSTAT OUTLET GEH-WE4M216
...
231
SCREW GEH-WE2M200
...
232
SCREW GEH-WE2M202
...
233
MOTOR PLATE GEH-WE13X20394
...
234
CAP NUT GEH-WE2M96
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
237
SCREW GEH-WE2M154
...
239
SCREWS GEH-WE2M167
...
240
SCREW GEH-WE1M280
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
502
SCREW # 10 GEH-WE2M174
...
630
MOTOR GEH-WE17M66
...
631
CONNECTOR MOTOR GEH-WE1M650
...
803
SWITCH INTERLOCK GEH-WD21X557
...
2232
PUSH/ START BUTTON GREY GEH-WE1M659

CABINET & TOP PANEL

...
...
2
SCREW 8-18X7 16 GEH-WE02X20422
...
12
BUZZER GEH-WE4M318
...
80
RESISTOR GEH-WE4M255
...
222
BOTTOM COVER GEH-WE20X20412
...
231
SCREW GEH-WE2M200
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
236
LEVELLING FOOT GEH-WE1M1101
...
237
SCREW GEH-WE2M154
...
250
SCREW GEH-WE2M223
...
271
SHIELD BOTTOM COVER GEH-WE1M1030
...
401
COVER WHITE GEH-WE20X20417
...
403
SCREW #8 GEH-WE2M160
...
404
SIDE PANEL WHITE GEH-WE20X20406
...
408
CHASSIS BASE GEH-WE20X20391
...
417
HOLDER FUSE GEH-WE1M1003
...
418
FUSE CCMR 30 AMP 120V GEH-WE1M1002
...
419
TERM BLK & GRND STRAP GEH-WE4M325
...
420
REAR PANEL GEH-WE20X20396
...
430
COVER FUSE TERMINAL GEH-WE1M1007
...
431
STRAIN RELIEF BRACKET EL GEH-WE01X20423
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
3204
SCR GEH-WH2M270

DRUM

...
...
237
SCREW GEH-WE2M154
...
240
SCREW GEH-WE1M280
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM ASM 6.0 CU.FT WH GEH-WE21X20407
...
504
DIFFUSER GEH-WE14X20408
...
505
THERMOSTAT SAFETY LEFT GEH-WE4M160
...
506
THERMOSTAT BIAS CTR INLT GEH-WE4M181
...
507
THERMOSTAT HI-LIMIT GEH-WE4M137
...
508
SHAFT GEH-WE00X181L
...
509
BAFFLE GEH-WE14X20426
...
510
PROTECTION BRACKET GEH-WE1M780
...
512
MICA HEATER & HOUSING AS GEH-WE11X20397
...
513
HEATER HOUSING GEH-WE11M10002
...
514
MICA HEATER GEH-WE11M10001
...
515
GROUND STRAP ASM GEH-WE1M1015
...
534
SCREW #10 GEH-WE2M163
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461

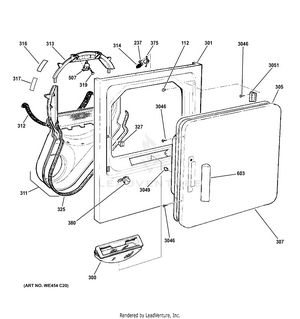

FRONT PANEL & DOOR

...
...
112
PLUG BUTTON WHITE GEH-WE1M934
...
237
SCREW GEH-WE2M154
...
300
LINT FILTER GEH-WE18M28
...
301
FRONT PANEL "WHITE" GEH-WE20X20409
...
305
INNER DOOR ASM WHITE GEH-WE10X20418
...
307
OUTER DOOR WH GEH-WE10X20468
...
311
TRAP DUCT GEH-WE14X20425
...
312
FELT TRAP DUCT GEH-WE09X20441
...
313
TOP BEARING GEH-WE03X20228
...
314
LAMP GEH-WE05X20431
...
316
BEARING SLIDE GEH-WE3M52
...
317
BEARING SLIDE GEH-WE3M51
...
319
SCREW GROUND FRONT GEH-WD21M131
...
325
GASKET (SEAL) 39 INCH GEH-WE1M825
...
327
LATCH GEH-WE1M536
...
375
SOCKET ASM GEH-WE5M48
...
380
DOOR SWITCH GEH-WE4M415
...
507
THERMOSTAT HI-LIMIT GEH-WE4M137
...
603
HANDLE WHITE GEH-WE01X20419
...
3046
SCREW #8 GEH-WE2M196
...
3049
STRIKE DOOR GEH-WE01X1192
...
3051
HINGE GEH-WE1M505
...
...
...
