product name

GE GME04GGKBWW Refrigerator

Model: GME04GGKBWW

Save
 Part Not Listed?Part Not Listed?
product name

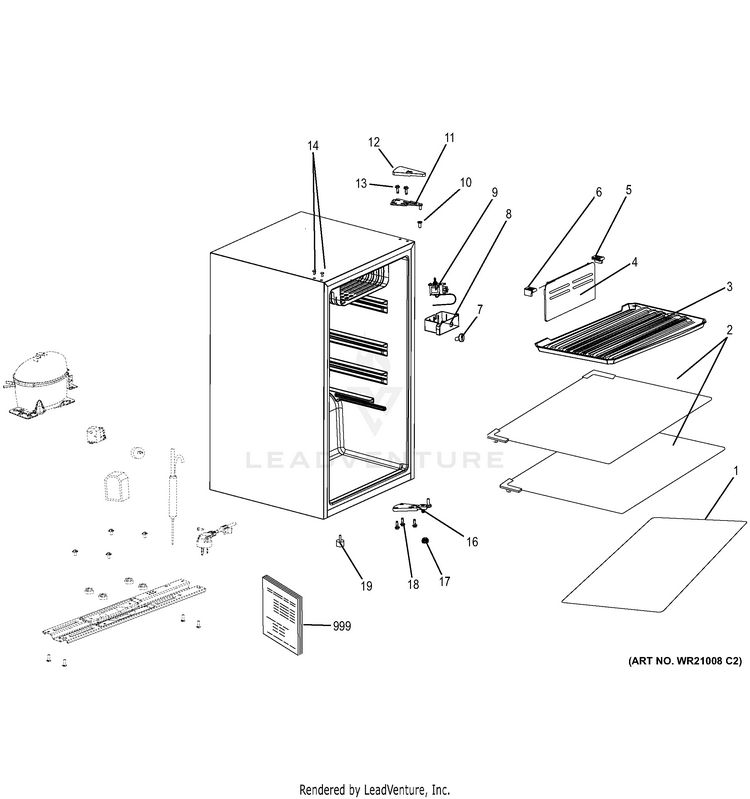

CABINET

...
...
1
HALF GLASS SHELF GEH-WR71X20291
...
2
GLASS SHELF ASM GEH-WR71X20290
...
3
DRAIN TRAY GEH-WR32X20289
...
4
CHILLER DOOR GEH-WR90X20288
...
5
CHILLER DOOR SUPPORT RH GEH-WR90X20298
...
6
CHILLDER DOOR SUPPORT LH GEH-WR90X20297
...
7
THERMOSTAT KNOB GEH-WR50X20302
...
8
TEMP CONTROL BOX GEH-WR50X20300
...
9
THERMOSTAT GEH-WR50X20301
...
10
HINGE SHAFT SLEEVE GEH-WR13X20293
...
11
TOP HINGE GEH-WR13X20303
...
12
HINGE COVER WW GEH-WR13X20305
...
14
PLUG - WHITE GEH-WR13X20277
...
16
HINGE BOTTOM ASM GEH-WR13X20286
...
17
ADJUSTABLE FOOT GEH-WR01X20282
...
18
SCREW GEH-WR01X20263
...
19
ADJUSTABLE FOOT GEH-WR01X20281
...
999
PM MINI MANUAL GEH-31-51927
...
999
PM OWNERS MANUAL GEH-49-60750

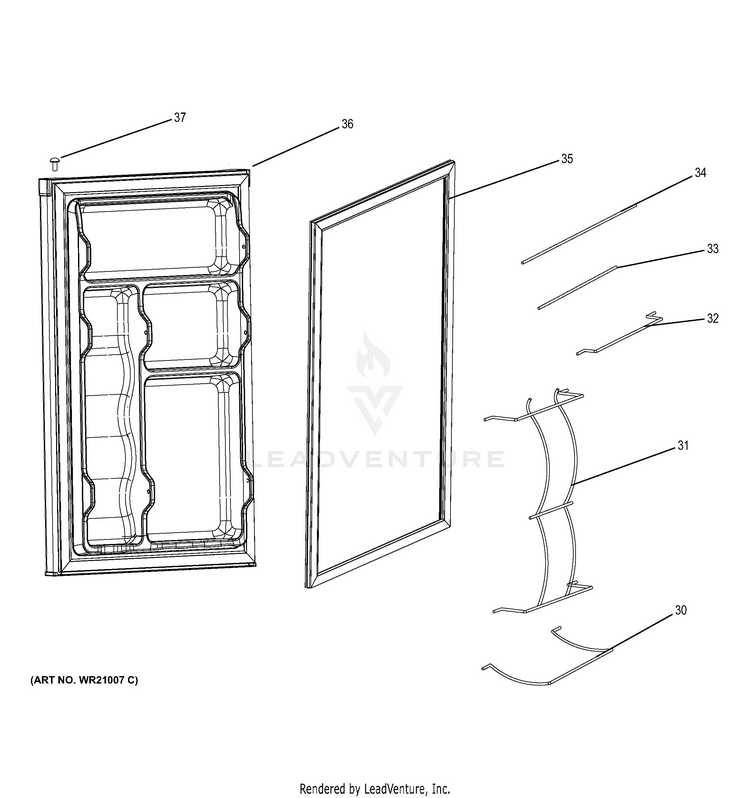

DOOR

...
...
30
SHELF BOTTOM GUARDRAIL GEH-WR71X20285
...
31
CAN GUARDRAIL GEH-WR71X20287
...
32
BOTTLE SHELF GUARDRAIL GEH-WR71X20284
...
33
SMALL WIRE GUARDRAIL GEH-WR71X20299
...
34
STEEL COLUMN GUARDRAIL GEH-WR71X20283
...
35
GASKET DOOR FF WW GEH-WR14X20308
...
36
DOOR FOAM ASM FF WW GEH-WR90X20307
...
37
PLUG BUTTON WW GEH-WR13X20306
...
...
...
